WIRING HARNESS (MODEL V) REFER TO FIG.29A(G-11) FOR MODEL W/X/Y/K1

WIRING HARNESS (MODEL W / X / Y / K1) FOR SUZUKI TL-S 1000 1998

SWITCHES

(1) 36610-02F10-000

WIRING HARNESS NO.1
HARNESS, WIRING NO.1

(2) 36619-33E00-000

WIRING HARNESS GUIDE
GUIDE, WIRING HARNESS

(3) 36620-02F10-000

WIRING HARNESS NO.2
HARNESS, WIRING NO.2

(3) 36620-02F20-000

HARNESS, WIRING NO.2

(4) 09481-15101-000

FUSE (15A)

(4) 09481-10101-000

FUSE
FUSE (10A)

(5) 36618-33E00-000

SPEEDO. COUPLER COVER
COVER, SPEEDOMETER COUPLER

(6) 36920-14D00-000

CUSHION HEADLAMP
PROTECTOR, WIRING HARNESS

(7) 09404-06039-000

CLAMP L:65
CLAMP (L:80)

(8) 09407-25401-000

CLAMP
CLAMP (L:235)

(8) 09407-14403-000

CLAMP

(9) 09407-17402-000

CLAMP WATER HOSE
CLAMP (L:150)

(9) 09407-11402-000

CLAMP
CLAMP (L:90)

(9) 09407-18402-000

CLAMP
CLAMP (L:165)

(10) 09407-14407-000

BAND
CLAMP (L:145)

(11) 01550-0610B-000

BOLT
SCREW, WIRING HARNESS

(12) 36745-33E00-000

FUSE-BOX STOPPER
STOPPER, FUSE BOX

(12) 36745-33E00-000

FUSE-BOX STOPPER
STOPPER, FUSE BOX

(13) 09404-06036-000

CLAMP (L 95)
CLAMP, FUSE BOX (L:95)

(14) 02142-0612A-000

SCREW
SCREW, FUSE BOX

(15) 37000-02810-000

LOCK SET

(15) 37000-02830-000

LOCK SET

(16) 37100-02F11-000

LOCK ASSY, STEERING

(16) 37100-02F00-000

STEERING LOCK ASSY
LOCK ASSY, STEERING

(17) 09139-08016-000

BOLT
SCREW (8X20)

(18) 37740-31D00-000

STOP LAMP SWITCH ASSY
SWITCH ASSY, STOP LAMP

(19) 09443-06012-000

SPRING

(20) 37840-26X51-000

SWITCH ASSY, SIDE STAND

(21) 01550-0616B-000

BOLT

(22) 38500-02F10-000

HORN ASSY

(23) 07120-0612B-000

BOLT OIL GALLERY
BOLT

(24) 38740-26E01-000

RELAY TL1000R GSF600/S-X
RELAY ASSY, FUEL PUMP

(25) 38740-26E01-000

RELAY TL1000R GSF600/S-X
RELAY ASSY, SIDE STAND

(26) 37146-33E00-000

KEY, BLANK

	Part number	Description	Qty
# 1	36610-02F10-000 3661002F10000 3661002F10000	WIRING HARNESS NO.1 HARNESS, WIRING NO.1	Not available	£0,00
# 2	36619-33E00-000 3661933E00000 3661933E00000	WIRING HARNESS GUIDE GUIDE, WIRING HARNESS	Not available	£0,00
# 3	36620-02F10-000 3662002F10000 3662002F10000	WIRING HARNESS NO.2 HARNESS, WIRING NO.2	Not available	£0,00
# 3	36620-02F20-000 3662002F20000 3662002F20000	HARNESS, WIRING NO.2	Not available	£0,00
# 4	09481-10101-000 0948110101000 0948110101000	FUSE FUSE (10A)	£1,80
# 4	09481-15101-000 0948115101000 0948115101000	FUSE (15A)	£2,69
# 5	36618-33E00-000 3661833E00000 3661833E00000	SPEEDO. COUPLER COVER COVER, SPEEDOMETER COUPLER	£11,89
# 6	36920-14D00-000 3692014D00000 3692014D00000	CUSHION HEADLAMP PROTECTOR, WIRING HARNESS	£11,28
# 7	09404-06432-000 09404-06039-000 0940406432000	CLAMP L:65 CLAMP (L:80)	£1,94
# 8	09407-14403-000 0940714403000 0940714403000	CLAMP	£2,84
# 8	09407-25401-000 0940725401000 0940725401000	CLAMP CLAMP (L:235)	£3,23
# 9	09407-11402-000 0940711402000 0940711402000	CLAMP CLAMP (L:90)	£2,28
# 9	09407-17401-000 09407-17402-000 0940717401000	CLAMP WATER HOSE CLAMP (L:150)	£5,51
# 9	09407-18402-000 0940718402000 0940718402000	CLAMP CLAMP (L:165)	£1,79
# 10	09407-14407-000 0940714407000 0940714407000	BAND CLAMP (L:145)	£4,03
# 11	01550-06103-000 01550-0610B-000 0155006103000	BOLT SCREW, WIRING HARNESS	£2,81
# 12	36745-33E00-000 3674533E00000 3674533E00000	FUSE-BOX STOPPER STOPPER, FUSE BOX	Not available	£0,00
# 13	09404-06434-000 09404-06036-000 0940406434000	CLAMP (L 95) CLAMP, FUSE BOX (L:95)	£1,99
# 14	02142-06123-000 02142-0612A-000 0214206123000	SCREW SCREW, FUSE BOX	£1,48

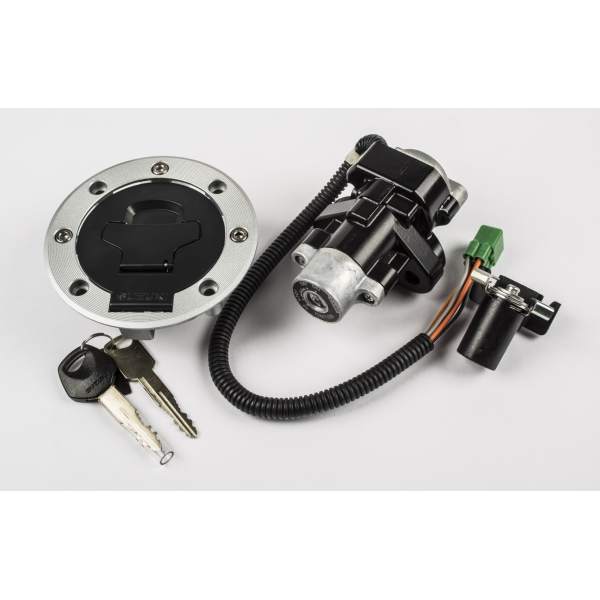

# 15	37000-02810-000 3700002810000 3700002810000	LOCK SET	Not available	£0,00
# 15	37000-02830-000 3700002830000 3700002830000	LOCK SET	Not available	£0,00
# 16	37100-02F10-000 37100-02F11-000 3710002F10000	LOCK ASSY, STEERING	£172,13
# 16	37100-02F00-000 3710002F00000 3710002F00000	STEERING LOCK ASSY LOCK ASSY, STEERING	Not available	£0,00
# 17	09139-08016-000 0913908016000 0913908016000	BOLT SCREW (8X20)	£5,39
# 18	37740-31D00-000 3774031D00000 3774031D00000	STOP LAMP SWITCH ASSY SWITCH ASSY, STOP LAMP	£15,44
# 19	09443-06012-000 0944306012000 0944306012000	SPRING	£4,85
# 20	37840-26X50-000 37840-26X51-000 3784026X50000	SWITCH ASSY, SIDE STAND	£92,27
# 21	01550-06163-000 01550-0616B-000 0155006163000	BOLT	£3,22
# 22	38500-02F10-000 3850002F10000 3850002F10000	HORN ASSY	Not available	£0,00
# 23	07120-06123-000 07120-0612B-000 0712006123000	BOLT OIL GALLERY BOLT	£3,60
# 24	38740-26E00-000 38740-26E01-000 3874026E00000	RELAY TL1000R GSF600/S-X RELAY ASSY, FUEL PUMP	£28,16
# 25	38740-26E00-000 38740-26E01-000 3874026E00000	RELAY TL1000R GSF600/S-X RELAY ASSY, SIDE STAND	£28,16
# 26	37146-33E00-000 3714633E00000 3714633E00000	KEY, BLANK	£10,68

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the WIRING HARNESS (MODEL W/X/Y/K1) of your Suzuki TLS 1000 of TL-S. Let us know if you have any questions.
