Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

TRANSMISSION

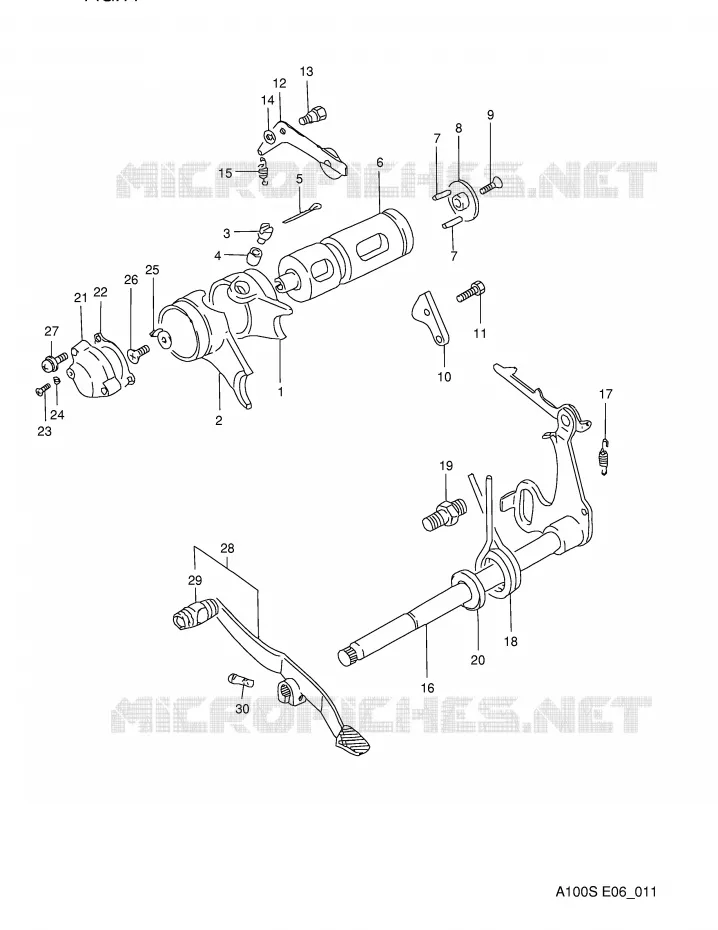

GEAR SHIFTING ASSY FOR SUZUKI A100 100 1994

KICK STARTER

(1) 25211-23001-000

FORK,GEAR SHIFT NO.1
FORK, GEAR SHIFTING NO.1

(2) 25221-03601-000

FORK,GEAR SHIFT SF
FORK, GEAR SHIFTING NO.2

(3) 09209-10002-000

REORDER ROBINSONS
PIN (L:19.5)

(3) 09209-10017-000

PIN
PIN (L:22.5)

(4) 09180-06086-000

REORDER ROBINSONS
ROLLER

(5) 04111-2520A-000

(P)PIN
COTTER PIN

(6) 25311-03602-000

CAM,GEAR SHIFT
CAM, GEAR SHIFTING

(7) 09261-04003-000

(8) 25322-46000-000

RETAINER PIN
RETAINER, DRIVE PIN

(9) 02122-0620A-000

SCREW

(10) 25341-03000-000

GUIDE, GEAR SHIFTING CAM

(11) 01500-0616A-000

BOLT KICK STARTER STOPPER
BOLT

(12) 25350-12000-000

STOPPER, CAM

(13) 09111-06003-000

BOLT
BOLT (6X16.1)

(14) 08322-0106A-000

WASHER

(15) 09443-07003-000

SPRING

(16) 25510-12110-000

SHAFT, GEAR SHIFTING

(16) 25510-12111-000

SHAFT, GEAR SHIFTING

(17) 09443-06008-000

REORDER ROBINSONS
SPRING

(18) 09444-26008-000

SPRING

(19) 25671-19000-000

STOPPER,GEAR SHIFT CAM
STOPPER, GEAR SHIFTING ARM

(20) 09283-12015-000

SEAL,OIL 12X22X9
OIL SEAL (12X22X9.0)

(21) 37721-05101-000

INDICATOR SWITCH
BODY, SWITCH

(22) 37712-01000-000

SWITCH GASKET
GASKET

(23) 02112-03047-000

SCREW

(24) 08322-01037-000

LOCK WASHER
WASHER

(25) 37711-05101-000

NEUTRAL IND.POINT
CONTACT

(26) 02122-0612A-000

SCREW RETAINER CAM CHAIN
SCREW

(27) 02112-74203-000

SCREW

(28) 25600-05202-000

LEVER ASSY,GEAR SHIFT
LEVER ASSY, GEAR SHIFTING

(29) 25652-16510-000

RUBBER

(30) 01500-0620A-000

BOLT GEAR SHIFT LINK
BOLT

	Part number	Description	Qty
# 1	25211-07002-000 25211-23001-000 2521107002000	FORK, GEAR SHIFT NO.1 FORK, GEAR SHIFTING NO.1	£59,80
# 2	25221-03601-000 2522103601000 2522103601000	FORK, GEAR SHIFT SF FORK, GEAR SHIFTING NO.2	£60,83
# 3	09209-10002-000 0920910002000 0920910002000	REORDER ROBINSONS PIN (L:19.5)	£14,89
# 3	09209-10017-000 0920910017000 0920910017000	PIN PIN (L:22.5)	£8,98
# 4	09180-06086-000 0918006086000 0918006086000	REORDER ROBINSONS ROLLER	£3,20
# 5	04111-25208-000 04111-2520A-000 0411125208000	(P)PIN COTTER PIN	£1,80
# 6	25311-03602-000 2531103602000 2531103602000	CAM, GEAR SHIFT CAM, GEAR SHIFTING	£116,86
# 7	09261-04003-000 0926104003000 0926104003000	PIN	£2,75
# 8	25322-46000-000 2532246000000 2532246000000	RETAINER PIN RETAINER, DRIVE PIN	£10,08
# 9	02122-06203-000 02122-0620A-000 0212206203000	SCREW	£1,33
# 10	25341-03000-000 2534103000000 2534103000000	GUIDE, GEAR SHIFTING CAM	Not available	£0,00
# 11	01500-06163-000 01500-0616A-000 0150006163000	BOLT KICK STARTER STOPPER BOLT	£2,83
# 12	25350-12000-000 2535012000000 2535012000000	STOPPER, CAM	Not available	£0,00
# 13	09111-06003-000 0911106003000 0911106003000	BOLT BOLT (6X16.1)	£3,31
# 14	08322-01063-000 0832201063000	WASHER	Not available	£0,00
# 15	09443-07003-000 0944307003000 0944307003000	SPRING	£2,74
# 16	25510-12110-000 2551012110000 2551012110000	SHAFT, GEAR SHIFTING	Not available	£0,00
# 16	25510-12111-000 2551012111000 2551012111000	SHAFT, GEAR SHIFTING	Not available	£0,00
# 17	09443-06008-000 0944306008000 0944306008000	REORDER ROBINSONS SPRING	£5,06
# 18	09444-26008-000 0944426008000 0944426008000	SPRING	£7,20
# 19	25671-19000-000 2567119000000 2567119000000	STOPPER, GEAR SHIFT CAM STOPPER, GEAR SHIFTING ARM	Not available	£0,00
# 20	09285-12002-000 0928512002000	SEAL, OIL 12X22X9 OIL SEAL (12X22X9.0)	Not available	£0,00
# 21	37721-05101-000 3772105101000 3772105101000	INDICATOR SWITCH BODY, SWITCH	£17,75
# 22	37712-01000-000 3771201000000 3771201000000	SWITCH GASKET GASKET	£3,53
# 23	02112-03047-000 0211203047000 0211203047000	SCREW	£2,84
# 24	08322-01037-000 0832201037000 0832201037000	LOCK WASHER WASHER	£2,98
# 25	37711-05101-000 3771105101000 3771105101000	NEUTRAL IND.POINT CONTACT	£7,08
# 26	02122-06123-000 02122-0612A-000 0212206123000	SCREW RETAINER CAM CHAIN SCREW	£1,56
# 27	02112-74203-000 0211274203000 0211274203000	SCREW	Not available	£0,00
# 28	25600-05201-000 25600-05202-000 2560005201000	LEVER ASSY, GEAR SHIFT LEVER ASSY, GEAR SHIFTING	£71,66
# 29	25652-16500-000 25652-16510-000 2565216500000	RUBBER	£5,21
# 30	01500-06203-000 01500-0620A-000 0150006203000	BOLT GEAR SHIFT LINK BOLT	£2,28

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the GEAR SHIFTING ASSY of your Suzuki of A100. Let us know if you have any questions.
