TAIL LIGHT (E2) REFER TO FIG. 24 (D-13) FOR E16

ELECTRICAL FOR SUZUKI GP 100 1983

RIGHT SWITCH - HANDGRIP

(1) 36610-39201-000

WIRING HARNESS

(1) 36610-39621-000

WIRING HARNESS

(2) 09407-18302-000

CLAMP

(3) 32800-16A00-000

RECTIFIER WIRE
RECTIFIRE ASSY
RECTIFIER ASSY

(3) 32880-19X50-000

RECTIFIER WIRE
RECTIFIRE ASSY

(4) 09125-05043-000

REORDER BRAN BARDSLEY
SCREW

(5) 08321-0105A-000

LOCK WASHER

(6) 08322-01057-000

.WASHER

(7) 36740-35012-000

REORDER ROBINSONS
FUSE CASE ASSY

(8) 09481-10001-000

FUSE (10A)

(9) 37610-53011-000

SWITCH
SWITCH ASSY, STOP LAMP

(10) 09443-06016-000

SPRING

(11) 38500-39131-000

HORN
HORN ASSY

(12) 01500-06107-000

BOLT
BOLT, INNER COVER

(13) 33410-43011-000

IGNITION COIL ASSY
DISCONTINUED

(13) 33410-43020-000

DISCONTINUED

(14) 02112-75207-000

SCREW
5 X 20 SCREW

(15) 08322-01057-000

.WASHER

(16) 33510-39110-000

REORDER ROBINSONS

(17) 33542-38800-000

SEAL, HIGHTENSION CORD

(18) 37110-25319-000

IGNITION SWITCH ASSY
SWITCH ASSY, IGNITION

(18) 37110-28657-000

IGNITION SWITCH ASSY
SWITCH ASSY, IGNITION

(19) 36510-48600-000

(20) 02112-06087-000

SCREW

(21) 08310-00067-000

.NUT

(22) 32500-27600-000

32500-27600-000
DISCONTINUED

(23) 01500-06127-000

BOLT
BOLT, HOSE

(24) 08310-00067-000

.NUT

(25) 08322-0106A-000

WASHER
LOCK WASHER

(26) 36791-95200-000

HOLDER, FUSE CASE

(27) 02112-06087-000

SCREW

(28) 36740-30501-000

FUSE CASE, REGULATOR

(29) 09481-05001-000

REORDER ROBINSONS
FUSE (5A)

	Part number	Description	Qty
# 1	36610-39201-000 3661039201000 3661039201000	WIRING HARNESS	Not available	£0,00
# 1	36610-39621-000 3661039621000 3661039621000	WIRING HARNESS	Not available	£0,00
# 2	09407-09301-000 09407-18302-000 0940709301000	CLAMP	£3,32
# 3	32800-19063-000 32800-16A00-000 3280019063000	RECTIFIER WIRE RECTIFIRE ASSY RECTIFIER ASSY	£37,73
# 3	32800-19063-000 32880-19X50-000 3280019063000	RECTIFIER WIRE RECTIFIRE ASSY	£16,80
# 4	09125-05043-000 0912505043000 0912505043000	REORDER BRAN BARDSLEY SCREW	Not available	£0,00
# 5	08321-21057-000 08321-0105A-000 0832121057000	LOCK WASHER	£2,44
# 6	08322-21057-000 08322-01057-000 0832221057000	.WASHER	£2,44
# 7	36740-35012-000 3674035012000 3674035012000	REORDER ROBINSONS FUSE CASE ASSY	£17,29
# 8	09481-10001-000 0948110001000 0948110001000	FUSE (10A)	£2,11
# 9	37610-53011-000 3761053011000 3761053011000	SWITCH SWITCH ASSY, STOP LAMP	£54,25
# 10	09443-06016-000 0944306016000 0944306016000	SPRING	£4,66
# 11	38500-39131-000 3850039131000 3850039131000	HORN HORN ASSY	Not available	£0,00
# 12	01107-06107-000 01500-06107-000 0110706107000	BOLT BOLT, INNER COVER	£1,99
# 13	33410-43010-000 3341043010000	IGNITION COIL ASSY DISCONTINUED	Not available	£0,00
# 13	33410-43020-000 3341043020000 3341043020000	DISCONTINUED	Not available	£0,00
# 14	02112-05208-000 02112-75207-000 0211205208000	SCREW 5 X 20 SCREW	£4,33
# 15	08322-21057-000 08322-01057-000 0832221057000	.WASHER	£2,44
# 16	33510-39110-000 3351039110000 3351039110000	REORDER ROBINSONS	Not available	£0,00
# 17	33542-38800-000 3354238800000 3354238800000	SEAL, HIGHTENSION CORD	Not available	£0,00

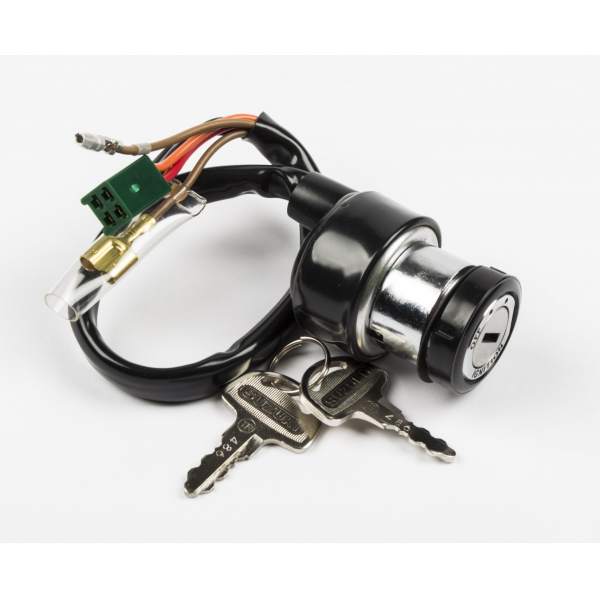

# 18	37110-25319-000 3711025319000 3711025319000	IGNITION SWITCH ASSY SWITCH ASSY, IGNITION	£134,96
# 18	37110-28657-000 3711028657000 3711028657000	IGNITION SWITCH ASSY SWITCH ASSY, IGNITION	Not available	£0,00
# 19	36510-48600-000 3651048600000 3651048600000	REGISTER ASSY RESISTOR ASSY	Not available	£0,00
# 20	02112-06087-000 0211206087000 0211206087000	SCREW	£2,02
# 21	08310-11067-000 08310-00067-000 0831011067000	.NUT	£2,44
# 22	32500-27600-000 3250027600000 3250027600000	32500-27600-000 DISCONTINUED	Not available	£0,00
# 23	01107-06127-000 01500-06127-000 0110706127000	BOLT BOLT, HOSE	£2,59
# 24	08310-11067-000 08310-00067-000 0831011067000	.NUT	£2,44
# 25	08322-21067-000 0832221067000	WASHER LOCK WASHER	Not available	£0,00
# 26	36791-25001-000 36791-95200-000 3679125001000	HOLDER, FUSE CASE	£5,27
# 27	02112-06068-000 02112-06087-000 0211206068000	SCREW	£2,02
# 28	36740-30501-000 3674030501000 3674030501000	FUSE CASE, REGULATOR	Not available	£0,00
# 29	09481-05001-000 0948105001000 0948105001000	REORDER ROBINSONS FUSE (5A)	£2,18
