CARRIER (E24)

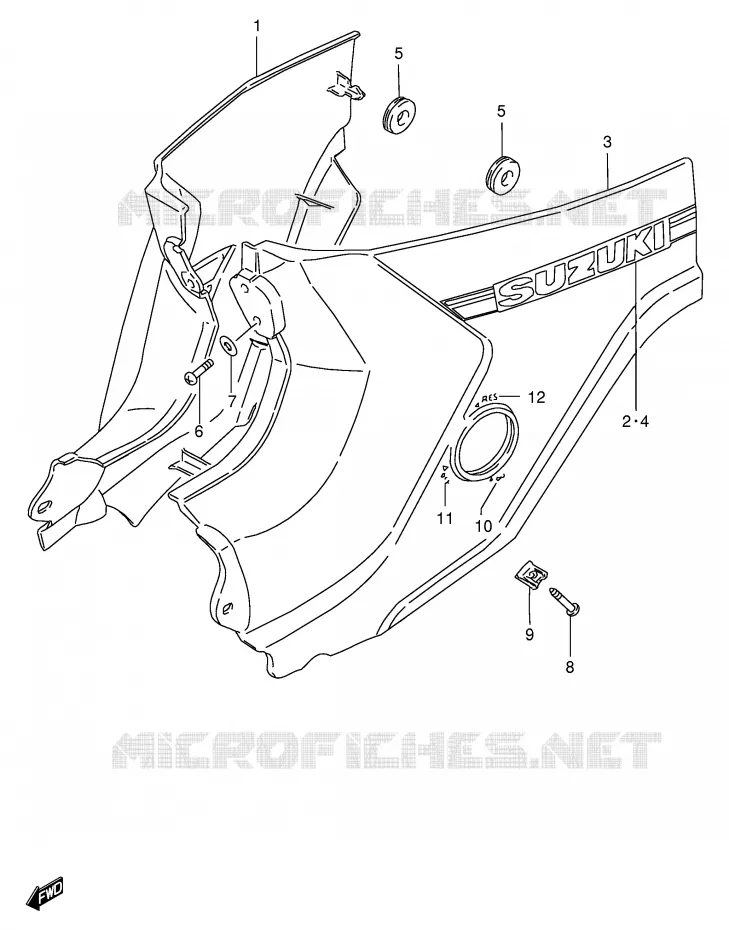

FAIRING (MODEL G / R / S / V) FOR SUZUKI FB 100 1994

FAIRING (MODEL X / Y)

Item numbers

COVER, SIDE RH (RED)

47111-30A00-00J 4711130A0000J

Not available

COVER, SIDE RH (BLUE)

47111-30A00-04Y 4711130A0004Y

Not available

COVER, SIDE RH (BLUE)

47111-30A00-0NF 4711130A000NF

Not available

COVER, SIDE RH (RED)

47111-30A00-19A 4711130A0019A

Not available

COVER, SIDE RH (BLUE)

47111-30A00-1UY 4711130A001UY

Not available

COVER, SIDE RH (MAROON)

47111-30A00-20F 4711130A0020F

Not available

COVER, SIDE RH (MAROON)

47111-30A00-24D 4711130A0024D

Not available

COVER, SIDE RH (GREEN)

47111-30A00-Y98 4711130A00Y98

Not available

TAPE SET, SIDE COVER RH

68130-30A00-66S 6813030A0066S

Not available

TAPE SET, SIDE COVER RH

68130-30A00-84G 6813030A0084G

Not available

COVER, SIDE LH (RED)

47210-30A21-00J 4721030A2100J

Not available

COVER, SIDE LH (BLUE)

47210-30A21-04Y 4721030A2104Y

Not available

COVER, SIDE LH (BLUE)

47210-30A21-0NF 4721030A210NF

Not available

COVER, SIDE LH (RED)

47210-30A21-19A 4721030A2119A

Not available

COVER, SIDE LH (BLUE)

47210-30A21-1UY 4721030A211UY

Not available

COVER, SIDE LH (MAROON)

47210-30A21-20F 4721030A2120F

Not available

COVER, SIDE LH (MAROON)

47210-30A21-24D 4721030A2124D

Not available

COVER, SIDE LH (GREEN)

47210-30A21-Y98 4721030A21Y98

Not available

TAPE SET, SIDE COVER LH

68140-30A00-66S 6814030A0066S

Not available

TAPE SET, SIDE COVER LH

68140-30A00-84G 6814030A0084G

Not available

GROMMET
CUSHION

09320-08028-000 0932008028000

Not available

SCREW
SCREW, UPPER

02142-05167-000 0214205167000

£2,48

Unit Price Incl. Tax

SCREW, UPPER

09136-05053-000 0913605053000

Not available

09160-05017-000
WASHER REFER TO FIG.2A (B-6) FOR MODE REFER TO FIG.2B (B-8) FOR MODE

09160-05017-000 0916005017000

Not available

SCREW

09139-06036-000 0913906036000

£2,00

Unit Price Incl. Tax

03241-05163-000
SCREW, CENTER PANEL (5X16)

03241-05163-000 0324105163000

Not available

03242-05163-000
SCREW

03242-05163-000 0324205163000

Not available

NUT

09148-05019-000 0914805019000

£2,96

Unit Price Incl. Tax

EMBLEM, FUEL COCK

68364-30A00-000 6836430A00000

Not available

EMBLEM, FUEL COCK

68364-30A10-000 6836430A10000

Not available

EMBLEM, FUEL COCK

68364-30A20-000 6836430A20000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the FAIRING (MODEL G/R/S/V) of your Suzuki of FB. Let us know if you have any questions.
