Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CLUTCH

TRANSMISSION FOR SUZUKI TL-R 1000 2000

GEAR SHIFTING ASSY

Item numbers
TRANSMISSION Suzuki MOTO 1000 TL-R 2000 TL1000RY(E2)
1
2
3
4
5
6
7
8
9
10
11
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
40
41
41
42
43
44
1
SHAFT COUNTER<br />SHAFT, COUNTER (NT:12)
SHAFT COUNTER
SHAFT, COUNTER (NT:12)

24120-02F06-000   2412002F06000

2412002F06000
Not available
2
2ND. DRIVE GEAR<br />GEAR, 2ND DRIVE (NT:15)
2ND. DRIVE GEAR
GEAR, 2ND DRIVE (NT:15)

24221-02F01-000   2422102F01000

2422102F01000

Unit Price Incl. Tax

3

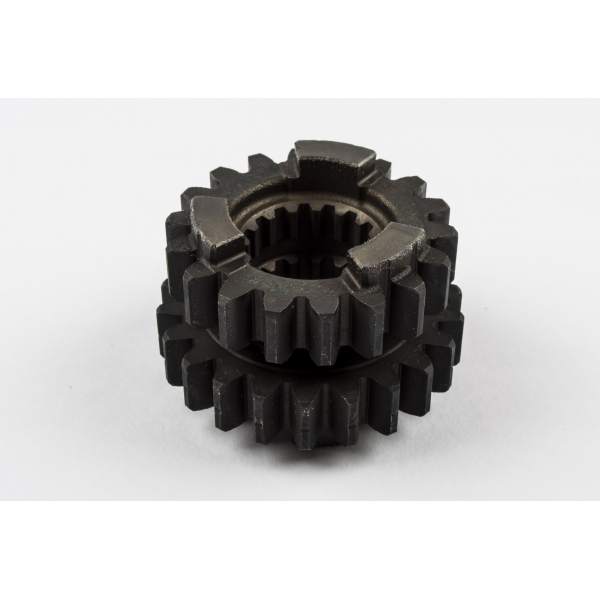

GEAR 3RD AND 4TH DRIVE<br />GEAR, 3RD & 4TH DRIVE (NT:18/27)
GEAR 3RD AND 4TH DRIVE
GEAR, 3RD & 4TH DRIVE (NT:18/27)

24231-02F13-000   2423102F13000

2423102F13000
Not available
4
GEAR SET 5TH DRIVE NT 23

24251-02810-000  

2425102810000
Not available
5
24261-02810-000
GEAR SET, 6TH DRIVE (NT:24)

24261-02810-000  

2426102810000
Not available
6
WASHER<br />WASHER, 6TH
WASHER
WASHER, 6TH

09181-22167-000   0918122167000

0918122167000

Unit Price Incl. Tax

7
BEARING
BEARING, CENTER SHAFT LH

09262-20139-000   0926220139000

0926220139000

Unit Price Incl. Tax

8
BALL BEARING<br />BEARING, CENTER SHAFT RH
BALL BEARING
BEARING, CENTER SHAFT RH

09262-25073-000   0926225073000

0926225073000

Unit Price Incl. Tax

9
O RING<br />O RING, CENTER SHAFT
O RING
O RING, CENTER SHAFT

09280-17004-000   0928017004000

0928017004000

Unit Price Incl. Tax

10
CIRCLIP<br />CIRCLIP, 5TH DRIVE
CIRCLIP
CIRCLIP, 5TH DRIVE

09380-27001-000   0938027001000

0938027001000

Unit Price Incl. Tax

11
SHAFT, DRIVE
SHAFT, DRIVE

24130-02F10-000   2413002F10000

2413002F10000

Unit Price Incl. Tax

11
DRIVE SHAFT.<br />SHAFT, DRIVE
DRIVE SHAFT.
SHAFT, DRIVE

24130-02F04-000   2413002F04000

2413002F04000
Not available
12
1ST. DRIVEN GEAR<br />GEAR, 1ST DRIVEN (NT:32)
1ST. DRIVEN GEAR
GEAR, 1ST DRIVEN (NT:32)

24311-02F10-000   2431102F10000

2431102F10000
Not available
13
1ST DRIVEN BUSH<br />BUSH, 1ST DRIVEN
1ST DRIVEN BUSH
BUSH, 1ST DRIVEN

24312-02F00-000   2431202F00000

2431202F00000

Unit Price Incl. Tax

14
GEAR 2ND DRIVEN NT29<br />GEAR, 2ND DRIVEN (NT:29)
GEAR 2ND DRIVEN NT29
GEAR, 2ND DRIVEN (NT:29)

24321-02F11-000   2432102F11000

2432102F11000

Unit Price Incl. Tax

15
2ND. DRIVEN GEAR BUSH<br />BUSH, 2ND
2ND. DRIVEN GEAR BUSH
BUSH, 2ND

24322-02F01-000   2432202F01000

2432202F01000

Unit Price Incl. Tax

16
GEAR SET 3RD DRIVEN NT 27

24331-02810-000  

2433102810000
Not available
17
GEAR SET 4TH DRIVEN

24341-02810-000  

2434102810000
Not available
18
GEAR 3RD & 4TH DRIVE
GEAR 3RD & 4TH DRIVE

24351-02F13-000  

24351-02F20-000
 2435102F13000

Unit Price Incl. Tax

19
6TH DRIVEN GEAR

24361-02F11-000  

24361-02F30-000
 2436102F11000

Unit Price Incl. Tax

20
WASHER<br />WASHER, 2ND DRIVEN GEAR
WASHER
WASHER, 2ND DRIVEN GEAR

09160-27008-000   0916027008000

0916027008000

Unit Price Incl. Tax

21
WASHER<br />WASHER, 3RD & 4TH DRIVEN
WASHER
WASHER, 3RD & 4TH DRIVEN

09167-27002-000   0916727002000

0916727002000

Unit Price Incl. Tax

22
WASHER, 3RD DRIVEN
WASHER, 3RD DRIVEN

24333-02F00-000   2433302F00000

2433302F00000

Unit Price Incl. Tax

23
WASHER 3RD DRIVEN<br />WASHER, 4TH DRIVEN
WASHER 3RD DRIVEN
WASHER, 4TH DRIVEN

24333-02F00-000   2433302F00000

2433302F00000

Unit Price Incl. Tax

24
SHIM(20X34X1)<br />WASHER, 1ST DRIVEN RH
SHIM(20X34X1)
WASHER, 1ST DRIVEN RH

09181-20251-000   0918120251000

0918120251000

Unit Price Incl. Tax

25
LOCK WASHER<br />WASHER, 1ST DRIVEN LH
LOCK WASHER
WASHER, 1ST DRIVEN LH

09181-22223-000   0918122223000

0918122223000

Unit Price Incl. Tax

26
BALL BEARING
BEARING, DRIVE SHAFT RH

09262-20082-000   0926220082000

0926220082000

Unit Price Incl. Tax

27
BEARING<br />BEARING, DRIVE SHAFT LH
BEARING
BEARING, DRIVE SHAFT LH

09262-28040-000   0926228040000

0926228040000

Unit Price Incl. Tax

28
OIL SEAL<br />SEAL, DRIVE SHAFT
OIL SEAL
SEAL, DRIVE SHAFT

09283-38020-000   0928338020000

0928338020000

Unit Price Incl. Tax

29
CIRCLIP<br />CIRCLIP, 2ND DRIVEN
CIRCLIP
CIRCLIP, 2ND DRIVEN

09380-27001-000   0938027001000

0938027001000

Unit Price Incl. Tax

30
CIRCLIP<br />CIRCLIP, 3RD DRIVEN
CIRCLIP
CIRCLIP, 3RD DRIVEN

09380-27001-000   0938027001000

0938027001000

Unit Price Incl. Tax

31
CIRCLIP<br />CIRCLIP, 4TH DRIVEN
CIRCLIP
CIRCLIP, 4TH DRIVEN

09380-27001-000   0938027001000

0938027001000

Unit Price Incl. Tax

32
RETAINER<br />RETAINER, DRIVE SHAFT
RETAINER
RETAINER, DRIVE SHAFT

24741-02F00-000   2474102F00000

2474102F00000
Not available
33
BEARING RETAINER<br />RETAINER, CENTER SHAFT
BEARING RETAINER
RETAINER, CENTER SHAFT

24741-21A00-000   2474121A00000

2474121A00000
Not available
34
RETAINER DRIVE SHAFT OIL SEAL

24751-02F01-000  

24751-06G00-000
 2475102F01000

Unit Price Incl. Tax

35
SCREW<br />SCREW, DRIVE SHAFT BRG
SCREW
SCREW, DRIVE SHAFT BRG

09126-06011-000   0912606011000

0912606011000

Unit Price Incl. Tax

36
SCREW

02112-06123-000  

02112-36123-000
 0211206123000

Unit Price Incl. Tax

37
BOLT

07130-06123-000  

09106-06075-000
 0713006123000

Unit Price Incl. Tax

38
SPROCKET ENGINE (NT 17)<br />SPROCKET, ENGINE (NT:17)
SPROCKET ENGINE (NT 17)
SPROCKET, ENGINE (NT:17)

27510-21A31-000   2751021A31000

2751021A31000

Unit Price Incl. Tax

39
SPACER SPROCKET

27531-24B12-000  

27531-24B13-000
 2753124B12000

Unit Price Incl. Tax

40
CHAIN ASSY (RK50GSVZ3 108L)

27600-17E20-108  

2760017E20108
Not available
41
.JOINT SET DRIVE

27620-17E20-000  

27620-24F20-000
 2762017E20000

Unit Price Incl. Tax

42
NUT
NUT

09159-20004-000   0915920004000

0915920004000

Unit Price Incl. Tax

43
SHIM (T 1.5)<br />WASHER (25X40X1.5)
SHIM (T 1.5)
WASHER (25X40X1.5)

09181-25268-000   0918125268000

0918125268000

Unit Price Incl. Tax

44
O RING (D 2.5 ID 23.8)<br />O RING (D:2.4,ID:23.7)
O RING (D 2.5 ID 23.8)
O RING (D:2.4, ID:23.7)

09280-24010-000   0928024010000

0928024010000

Unit Price Incl. Tax

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Suzuki 1000 TL-R 2000
