STEERING COLUMN

FRONT WHEEL FOR SUZUKI GD 110 2011

SWINGARM

(1) 54110-36H10-000

HUB, FRONT

(2) 54731-36H00-000

SPACER, FRONT HUB BEARING

(3) 54742-36H00-000

SEAL, FRONT HUB

(4) 55311-36H10-000

RIM, FR WHEEL (17X1.40)

(5) 55320-36H00-000

SPOKE ASSY, FRONT

(6) 08143-6301B-000

BEARING
BEARING, FRONT HUB

(7) 55110-36H00-000

TIRE, FRONT (2.50-17)

(8) 55200-36H00-000

TUBE ASSY, WHEEL INNER

(9) 55261-36H10-000

PROTECTOR, WHEEL INNER

(10) 54711-36H00-000

AXLE, FRONT

(11) 54741-36H00-000

SPACER, FRONT AXLE RH

(12) 08319-3112A-000

NUT
NUT, FRONT AXLE

(13) 54210-36H00-000

PANEL, FRONT BRAKE

(14) 54267-36H00-000

SEAL, FR BRAKE PANEL OIL

(15) 54400-36810-000

SHOE SET, FRONT BRAKE

(16) 54441-36H00-000

CAM, FRONT BRAKE

(17) 54443-36H00-000

SEAL, BRAKE CAM DUST

(18) 54451-36H00-000

LEVER, FRONT BRAKE CAM

(19) 54484-36H00-000

SPRING, CAM LEVER RETURN

(20) 54492-36H00-000

PLATE, BRAKE LINING INDICATOR

(21) 54610-36H00-000

DRIVER, SPEEDOMETER

(22) 54621-36H00-000

PINION, SPEEDOMETER (10T)

(23) 54632-010H0-000

BUSHING, SPDOM PINION OUTER

(24) 54642-36H00-000

WASHER, SPEEDOMETER GEAR

(25) 55421-36H00-000

SPRING, BRAKE SHOE

(26) 09100-06139-000

BOLT
BOLT, FR BRAKE CAM LEVER (6X31)

(27) 09134-03101-A05

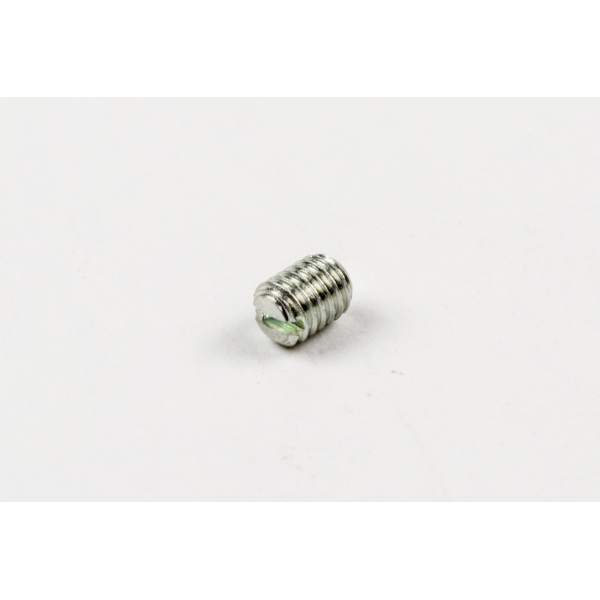

SCREW
SCREW, PINION BUSHING (3X4.3)

(28) 09160-05001-A05

WASHER
WASHER, PINION THRUST

(29) 08316-1006B-000

NUT RECT BRKT
NUT, FR BRAKE CAM LEVER

	Part number	Description	Qty
# 1	54110-36H10-000 5411036H10000 5411036H10000	HUB, FRONT	Not available	£0,00
# 2	54731-36H00-000 5473136H00000 5473136H00000	SPACER, FRONT HUB BEARING	Not available	£0,00
# 3	54742-36H00-000 5474236H00000 5474236H00000	SEAL, FRONT HUB	Not available	£0,00
# 4	55311-36H10-000 5531136H10000 5531136H10000	RIM, FR WHEEL (17X1.40)	Not available	£0,00
# 5	55320-36H00-000 5532036H00000 5532036H00000	SPOKE ASSY, FRONT	Not available	£0,00
# 6	08143-63017-000 08143-6301B-000 0814363017000	BEARING BEARING, FRONT HUB	£18,71
# 7	55110-36H00-000 5511036H00000 5511036H00000	TIRE, FRONT (2.50-17)	Not available	£0,00
# 8	55200-36H00-000 5520036H00000 5520036H00000	TUBE ASSY, WHEEL INNER	Not available	£0,00
# 9	55261-36H10-000 5526136H10000 5526136H10000	PROTECTOR, WHEEL INNER	Not available	£0,00
# 10	54711-36H00-000 5471136H00000 5471136H00000	AXLE, FRONT	Not available	£0,00
# 11	54741-36H00-000 5474136H00000 5474136H00000	SPACER, FRONT AXLE RH	Not available	£0,00
# 12	08319-3112A-000 083193112A000 083193112A000	NUT NUT, FRONT AXLE	£2,00
# 13	54210-36H00-000 5421036H00000 5421036H00000	PANEL, FRONT BRAKE	Not available	£0,00
# 14	54267-36H00-000 5426736H00000 5426736H00000	SEAL, FR BRAKE PANEL OIL	Not available	£0,00
# 15	54400-36810-000 5440036810000 5440036810000	SHOE SET, FRONT BRAKE	Not available	£0,00
# 16	54441-36H00-000 5444136H00000 5444136H00000	CAM, FRONT BRAKE	Not available	£0,00
# 17	54443-36H00-000 5444336H00000 5444336H00000	SEAL, BRAKE CAM DUST	Not available	£0,00
# 18	54451-36H00-000 5445136H00000 5445136H00000	LEVER, FRONT BRAKE CAM	Not available	£0,00
# 19	54484-36H00-000 5448436H00000 5448436H00000	SPRING, CAM LEVER RETURN	Not available	£0,00
# 20	54492-36H00-000 5449236H00000 5449236H00000	PLATE, BRAKE LINING INDICATOR	Not available	£0,00
# 21	54610-36H00-000 5461036H00000 5461036H00000	DRIVER, SPEEDOMETER	Not available	£0,00
# 22	54621-36H00-000 5462136H00000 5462136H00000	PINION, SPEEDOMETER (10T)	Not available	£0,00
# 23	54632-010H0-000 54632010H0000 54632010H0000	BUSHING, SPDOM PINION OUTER	Not available	£0,00
# 24	54642-36H00-000 5464236H00000 5464236H00000	WASHER, SPEEDOMETER GEAR	Not available	£0,00
# 25	55421-36H00-000 5542136H00000 5542136H00000	SPRING, BRAKE SHOE	Not available	£0,00
# 26	09100-06139-000 0910006139000 0910006139000	BOLT BOLT, FR BRAKE CAM LEVER (6X31)	£3,29
# 27	09134-03101-A05 0913403101A05 0913403101A05	SCREW SCREW, PINION BUSHING (3X4.3)	£2,40
# 28	09160-05001-A05 0916005001A05 0916005001A05	WASHER WASHER, PINION THRUST	£2,72
# 29	08316-1006B-000 083161006B000 083161006B000	NUT RECT BRKT NUT, FR BRAKE CAM LEVER	£3,96
