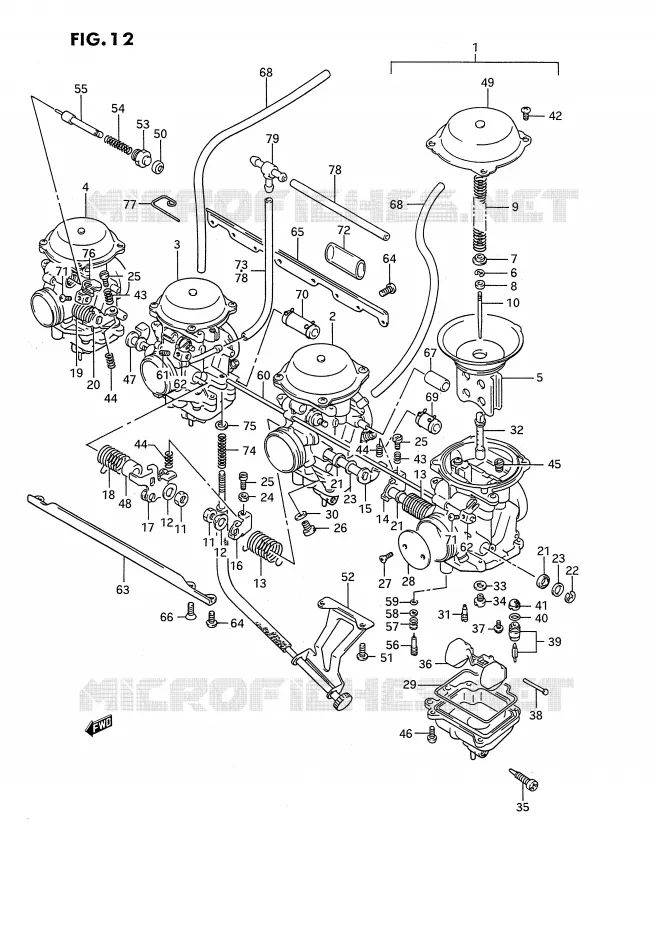

CARBURETOR FOR SUZUKI GSX-F 1100 1990

AIR FILTER

(1) 13201-49B40-000

REORDER ROBINSONS
CARBURETOR ASSY, LH

(1) 13201-48B31-000

CARBURETOR ASSY, LH

(1) 13201-49B40-000

REORDER ROBINSONS
CARBURETOR ASSY, LH

(1) 13201-48B60-000

CARBURETOR ASSY, LH

(1) 13201-49B40-000

REORDER ROBINSONS
CARBURETOR ASSY, LH

(1) 13201-49B00-000

CARBURETOR ASSY, LH

(1) 13201-49B10-000

CARBURETOR ASSY, LH

(1) 13201-49B30-000

CARBURETOR ASSY, LH

(1) 13201-49B40-000

REORDER ROBINSONS
CARBURETOR ASSY, LH

(2) 13202-48B01-000

13202-48B01-000
CARBURETOR ASSY, ML

(2) 13202-48B31-000

CARBURETOR ASSY, ML

(2) 13202-48B41-000

CARBURETOR ASSY, ML

(2) 13202-48B60-000

CARBURETOR ASSY, ML

(2) 13202-48B70-000

CARBURETOR ASSY, ML

(2) 13202-49B00-000

13202-49B00-000
CARBURETOR ASSY, ML

(2) 13202-49B10-000

CARBURETOR ASSY, ML

(2) 13202-49B30-000

CARBURETOR ASSY, ML

(2) 13202-49B40-000

CARBURETOR ASSY, ML

(3) 13203-49B40-000

REORDER ROBINSONS
CARBURETOR ASSY, MR

(3) 13203-48B31-000

CARBURETOR ASSY, MR

(3) 13203-49B40-000

REORDER ROBINSONS
CARBURETOR ASSY, MR

(3) 13203-48B60-000

CARBURETOR ASSY, MR

(3) 13203-49B40-000

REORDER ROBINSONS
CARBUREOTR ASSY, MR

(3) 13203-49B10-000

CARBURETOR ASSY, MR

(3) 13203-49B30-000

CARBURETOT ASSY, MR

(3) 13203-49B40-000

REORDER ROBINSONS
CARBURETOR ASSY, MR

(4) 13204-49B40-000

REORDER ROBINSONS
CARBURETOR ASSY, RH

(4) 13204-48B31-000

CARBURETOR ASSY, RH

(4) 13204-49B40-000

REORDER ROBINSONS
CARBURETOR ASSY, RH

(4) 13204-48B60-000

CARBURETOR ASSY, RH

(4) 13204-49B40-000

REORDER ROBINSONS
CARBURETOR ASSY, RH

(4) 13204-49B10-000

CARBURETOR ASSY, RH

(4) 13204-49B30-000

CARBURETOR ASSY, RH

(4) 13204-49B40-000

REORDER ROBINSONS
CARBURETOR ASSY, RH

(5) 13500-06B01-000

DIAPHRAGM
DIAPHRAGM ASSY

(5) 13500-48B00-000

DIAPHRAGM
DIAPHRAGM ASSY

(6) 13394-40D20-000

E RING

(6) 13394-10010-000

NEEDLE CLIP
E RING

(7) 13382-42A00-000

WASHER
RING

(8) 13387-47010-000

RING NEEDLE JET
RING

(9) 13417-42A00-000

PLUNGER SPRING
SPRING

(10) 13383-48B00-000

REORDER ROBINSONS
NEEDLE, JET (5DL7-3)

(10) 13383-48B10-000

NEEDLE, JET (5DL15-3)

(10) 13383-49B00-000

NEEDLE, JET (5DL24-3)

(11) 08310-00087-000

NUT

(12) 13606-47070-000

WASHER

(13) 13573-28A10-000

SPRING

(14) 13550-28A30-000

SHAFT ASSY

(15) 13550-28A00-000

SHAFT ASSY

(16) 13553-28A00-000

LEVER

(17) 13555-28A00-000

LEVER

(18) 13573-28A00-000

SPRING

(19) 13573-28A20-000

SPRING

(20) 13550-28A20-000

SHAFT ASSY

(21) 13651-51011-000

SEAL

(22) 13617-44080-000

E RING

(23) 13557-47070-000

GASKET
WASHER

(24) 13582-95216-000

ROD THROTTLE NUT
NUT

(25) 13267-52012-000

REORDER ROBINSONS
SCREW

(26) 13605-73000-000

SCREW

(27) 13604-44080-000

THROTTLE VALVE SCREW
.SCREW

(28) 13551-06B00-000

VALVE, THROTTLE (130)

(28) 13551-06B10-000

VALVE, THROTTLE (125)

(29) 13251-42A00-000

FLOAT CHAMBER GASKET
O RING

(30) 13249-78100-000

WASHER

(31) 09492-32006-000

PILOT JET
JET, PILOT (32.5)

(31) 09492-42010-000

PILOT JET
JET, PILOT (42.5)

(32) 09494-00586-000

SUZUKI PART
JET, NEEDLE (P-0)

(32) 09494-00535-000

REORDER ROBINSONS
JET, NEEDLE (P-2)

(33) 13382-03110-000

..WASHER

(34) 09491-25011-000

MAIN JET (127.5)
JET, MAIN (127.5)

(34) 09491-22015-000

MAIN JET
JET, MAIN (112.5)

(34) 09491-22016-000

MAIN JET
JET, MAIN (110)

(34) 09491-26011-000

MAIN JET
JET, MAIN (130)

(35) 13247-28A00-000

REORDER ROBINSONS
SCREW, DRAIN

(36) 13250-28A00-000

FLOAT

(37) 13602-43410-000

SCREW

(38) 13254-92311-000

FLOAT PIN
PIN

(39) 13370-48B00-000

NEEDLE VALVE ASSY
VALVE ASSY, NEEDLE

(40) 13374-35C00-000

..O RING

(41) 13376-19F00-000

FILTER

(42) 02112-04087-000

SCREW

(43) 13271-28A00-000

REORDER ROBINSONS
SPRING

(44) 13268-96111-000

SPRING

(45) 09493-30005-000

AIR JET
JET, PILOT AIR (155)

(45) 09493-30003-000

REORDER ROBINSONS
JET, PILOT AIR (150)

(45) 09493-25001-000

REORDER ROBINSONS MOTORS

(45) 09493-26005-000

JET, PILOT AIR (130)

(46) 02112-0412A-000

.SCREW

(47) 13550-28A10-000

SHAFT ASSY

(48) 13574-28A00-000

RING

(49) 13502-09F00-000

COVER, DIAPHRAGM

(49) 13502-49B00-000

COVER, DIAPHRAGM

(50) 13682-31210-000

STARTER VALVE CAP
CAP, STARTER

(51) 02112-0416A-000

SCREW

(52) 13628-48B00-000

BRACKET
BRACKET ASSY

(53) 13418-44080-000

PLUNGER GUIDE SCREW
HOLDER

(54) 13417-09210-000

SPRING

(55) 13411-05320-000

PLUNGER ASSY

(56) 13279-47070-000

PILOT SCREW
SCREW, AIR (2 7/16)

(57) 13268-47070-000

SPRING

(58) 13291-29900-000

WASHER

(59) 13295-29901-000

O RING,PILOT AIR SCREW
O RING

(60) 13586-48B00-000

SHAFT, STARTER

(61) 13605-47070-000

SCREW

(62) 13422-48B10-000

SUZUKI PART
LEVER

(63) 13620-19CV0-000

PLATE

(64) 02112-05127-000

SCREW

(65) 13628-19C10-000

PLATE

(66) 09126-05005-000

REORDER ROBINSONS
SCREW (5X14)

(67) 09355-65001-600

HOSE
HOSE (6.5X10.5X400)

(68) 09352-50005-600

HOSE(5X8.2X600)
.HOSE, AIR VENT (5X8X550Â†’500)

(69) 13680-28A01-000

HOSE ASSY

(70) 13680-28A01-000

HOSE ASSY

(71) 13605-09300-000

SCREW

(72) 13684-43440-000

HOSE
HOSE (16X19X100)

(73) 09352-50901-600

HOSE 5X9X600
HOSE (5X9X225!100)

(74) 13271-28A10-000

REORDER ROBINSONS
SPRING

(75) 13432-47090-000

WASHER

(76) 13422-48B00-000

LEVER

(77) 13671-48B00-000

CLIP

(78) 09352-50901-600

HOSE 5X9X600
HOSE (5X9X225!100)

(79) 13685-48B00-000

NIPPLE

	Part number	Description	Qty
# 1	13201-48B01-000 1320148B01000	REORDER ROBINSONS CARBURETOR ASSY, LH	Not available	£0,00
# 1	13201-48B31-000 1320148B31000 1320148B31000	CARBURETOR ASSY, LH	Not available	£0,00
# 1	13201-48B41-000 1320148B41000	REORDER ROBINSONS CARBURETOR ASSY, LH	Not available	£0,00
# 1	13201-48B60-000 1320148B60000 1320148B60000	CARBURETOR ASSY, LH	Not available	£0,00
# 1	13201-48B70-000 1320148B70000	REORDER ROBINSONS CARBURETOR ASSY, LH	Not available	£0,00
# 1	13201-49B00-000 1320149B00000 1320149B00000	CARBURETOR ASSY, LH	Not available	£0,00
# 1	13201-49B10-000 1320149B10000 1320149B10000	CARBURETOR ASSY, LH	Not available	£0,00
# 1	13201-49B30-000 1320149B30000 1320149B30000	CARBURETOR ASSY, LH	Not available	£0,00
# 1	13201-49B40-000 1320149B40000 1320149B40000	REORDER ROBINSONS CARBURETOR ASSY, LH	Not available	£0,00
# 2	13202-48B01-000 1320248B01000 1320248B01000	13202-48B01-000 CARBURETOR ASSY, ML	Not available	£0,00
# 2	13202-48B31-000 1320248B31000 1320248B31000	CARBURETOR ASSY, ML	Not available	£0,00
# 2	13202-48B41-000 1320248B41000 1320248B41000	CARBURETOR ASSY, ML	Not available	£0,00
# 2	13202-48B60-000 1320248B60000 1320248B60000	CARBURETOR ASSY, ML	Not available	£0,00
# 2	13202-48B70-000 1320248B70000 1320248B70000	CARBURETOR ASSY, ML	Not available	£0,00
# 2	13202-49B00-000 1320249B00000 1320249B00000	13202-49B00-000 CARBURETOR ASSY, ML	Not available	£0,00
# 2	13202-49B10-000 1320249B10000 1320249B10000	CARBURETOR ASSY, ML	Not available	£0,00
# 2	13202-49B30-000 1320249B30000 1320249B30000	CARBURETOR ASSY, ML	Not available	£0,00
# 2	13202-49B40-000 1320249B40000 1320249B40000	CARBURETOR ASSY, ML	Not available	£0,00
# 3	13203-48B01-000 1320348B01000	REORDER ROBINSONS CARBURETOR ASSY, MR	Not available	£0,00
# 3	13203-48B31-000 1320348B31000 1320348B31000	CARBURETOR ASSY, MR	Not available	£0,00
# 3	13203-48B41-000 1320348B41000	REORDER ROBINSONS CARBURETOR ASSY, MR	Not available	£0,00
# 3	13203-48B60-000 1320348B60000 1320348B60000	CARBURETOR ASSY, MR	Not available	£0,00
# 3	13203-48B70-000 1320348B70000	REORDER ROBINSONS CARBUREOTR ASSY, MR	Not available	£0,00
# 3	13203-49B10-000 1320349B10000 1320349B10000	CARBURETOR ASSY, MR	Not available	£0,00
# 3	13203-49B30-000 1320349B30000 1320349B30000	CARBURETOT ASSY, MR	Not available	£0,00
# 3	13203-49B40-000 1320349B40000 1320349B40000	REORDER ROBINSONS CARBURETOR ASSY, MR	Not available	£0,00
# 4	13204-48B01-000 1320448B01000	REORDER ROBINSONS CARBURETOR ASSY, RH	Not available	£0,00
# 4	13204-48B31-000 1320448B31000 1320448B31000	CARBURETOR ASSY, RH	Not available	£0,00
# 4	13204-48B41-000 1320448B41000	REORDER ROBINSONS CARBURETOR ASSY, RH	Not available	£0,00
# 4	13204-48B60-000 1320448B60000 1320448B60000	CARBURETOR ASSY, RH	Not available	£0,00
# 4	13204-48B70-000 1320448B70000	REORDER ROBINSONS CARBURETOR ASSY, RH	Not available	£0,00
# 4	13204-49B10-000 1320449B10000 1320449B10000	CARBURETOR ASSY, RH	Not available	£0,00
# 4	13204-49B30-000 1320449B30000 1320449B30000	CARBURETOR ASSY, RH	Not available	£0,00
# 4	13204-49B40-000 1320449B40000 1320449B40000	REORDER ROBINSONS CARBURETOR ASSY, RH	Not available	£0,00
# 5	13500-06B00-000 1350006B00000	DIAPHRAGM DIAPHRAGM ASSY	Not available	£0,00
# 5	13500-48B00-000 1350048B00000 1350048B00000	DIAPHRAGM DIAPHRAGM ASSY	Not available	£0,00
# 6	13394-01D00-000 13394-40D20-000 1339401D00000	E RING	£7,37
# 6	13394-10010-000 1339410010000 1339410010000	NEEDLE CLIP E RING	£6,91
# 7	13382-42A00-000 1338242A00000 1338242A00000	WASHER RING	£7,37
# 8	13387-47010-000 1338747010000 1338747010000	RING NEEDLE JET RING	£11,96
# 9	13417-42A00-000 1341742A00000 1341742A00000	PLUNGER SPRING SPRING	£11,18
# 10	13383-48B00-000 1338348B00000 1338348B00000	REORDER ROBINSONS NEEDLE, JET (5DL7-3)	£27,70
# 10	13383-48B10-000 1338348B10000 1338348B10000	NEEDLE, JET (5DL15-3)	Not available	£0,00
# 10	13383-49B00-000 1338349B00000 1338349B00000	NEEDLE, JET (5DL24-3)	Not available	£0,00
# 11	08310-00087-000 0831000087000 0831000087000	NUT	£2,44
# 12	13606-47070-000 1360647070000 1360647070000	WASHER	Not available	£0,00
# 13	13573-28A10-000 1357328A10000 1357328A10000	SPRING	Not available	£0,00
# 14	13550-28A30-000 1355028A30000 1355028A30000	SHAFT ASSY	Not available	£0,00
# 15	13550-28A00-000 1355028A00000 1355028A00000	SHAFT ASSY	Not available	£0,00
# 16	13553-28A00-000 1355328A00000 1355328A00000	LEVER	Not available	£0,00
# 17	13555-28A00-000 1355528A00000 1355528A00000	LEVER	Not available	£0,00
# 18	13573-28A00-000 1357328A00000 1357328A00000	SPRING	Not available	£0,00
# 19	13573-28A20-000 1357328A20000 1357328A20000	SPRING	Not available	£0,00
# 20	13550-28A20-000 1355028A20000 1355028A20000	SHAFT ASSY	Not available	£0,00
# 21	13651-51010-000 13651-51011-000 1365151010000	SEAL	£3,46
# 22	13617-44080-000 1361744080000 1361744080000	E RING	£5,05
# 23	13557-47070-000 1355747070000 1355747070000	GASKET WASHER	£6,50
# 24	13582-95216-000 1358295216000 1358295216000	ROD THROTTLE NUT NUT	£7,54
# 25	13267-52012-000 1326752012000 1326752012000	REORDER ROBINSONS SCREW	Not available	£0,00
# 26	13605-73000-000 1360573000000 1360573000000	SCREW	£17,75
# 27	13604-42A00-000 13604-44080-000 1360442A00000	THROTTLE VALVE SCREW .SCREW	£5,26
# 28	13551-06B00-000 1355106B00000 1355106B00000	VALVE, THROTTLE (130)	Not available	£0,00
# 28	13551-06B10-000 1355106B10000 1355106B10000	VALVE, THROTTLE (125)	Not available	£0,00
# 29	13251-42A00-000 1325142A00000 1325142A00000	FLOAT CHAMBER GASKET O RING	£10,36
# 30	13249-78100-000 1324978100000 1324978100000	WASHER	£4,16
# 31	09492-32006-000 0949232006000 0949232006000	PILOT JET JET, PILOT (32.5)	£17,53
# 31	09492-42010-000 0949242010000 0949242010000	PILOT JET JET, PILOT (42.5)	£15,64
# 32	09494-00586-000 0949400586000 0949400586000	SUZUKI PART JET, NEEDLE (P-0)	£55,54
# 32	09494-00535-000 0949400535000 0949400535000	REORDER ROBINSONS JET, NEEDLE (P-2)	Not available	£0,00
# 33	13332-44080-000 13382-03110-000 1333244080000	..WASHER	£4,66
# 34	09491-22015-000 0949122015000 0949122015000	MAIN JET JET, MAIN (112.5)	£13,64
# 34	09491-22016-000 0949122016000 0949122016000	MAIN JET JET, MAIN (110)	£13,64
# 34	09491-25011-000 0949125011000 0949125011000	MAIN JET (127.5) JET, MAIN (127.5)	£14,84
# 34	09491-26011-000 0949126011000 0949126011000	MAIN JET JET, MAIN (130)	£13,64
# 35	13247-28A00-000 1324728A00000 1324728A00000	REORDER ROBINSONS SCREW, DRAIN	£13,45
# 36	13250-28A00-000 1325028A00000 1325028A00000	FLOAT	£62,14
# 37	13602-43410-000 1360243410000 1360243410000	SCREW	£4,66
# 38	13254-92311-000 1325492311000 1325492311000	FLOAT PIN PIN	£2,59
# 39	13370-48B00-000 1337048B00000 1337048B00000	NEEDLE VALVE ASSY VALVE ASSY, NEEDLE	£99,06
# 40	13374-44080-000 13374-35C00-000 1337444080000	..O RING	£4,93
# 41	13376-84110-000 13376-19F00-000 1337684110000	FILTER	£17,10
# 42	02112-04087-000 0211204087000 0211204087000	SCREW	£1,64
# 43	13271-28A00-000 1327128A00000 1327128A00000	REORDER ROBINSONS SPRING	Not available	£0,00
# 44	13268-96110-000 13268-96111-000 1326896110000	SPRING	£6,18
# 45	09493-30003-000 0949330003000 0949330003000	REORDER ROBINSONS JET, PILOT AIR (150)	£24,24
# 45	09493-30005-000 0949330005000 0949330005000	AIR JET JET, PILOT AIR (155)	£24,40
# 45	09493-25001-000 0949325001000 0949325001000	REORDER ROBINSONS MOTORS	Not available	£0,00
# 45	09493-26005-000 0949326005000 0949326005000	JET, PILOT AIR (130)	Not available	£0,00
# 46	13602-27A10-000 02112-0412A-000 1360227A10000	.SCREW	£1,74
# 47	13550-28A10-000 1355028A10000 1355028A10000	SHAFT ASSY	Not available	£0,00
# 48	13574-28A00-000 1357428A00000 1357428A00000	RING	Not available	£0,00
# 49	13502-48B00-000 13502-09F00-000 1350248B00000	COVER, DIAPHRAGM	£71,87
# 49	13502-49B00-000 1350249B00000 1350249B00000	COVER, DIAPHRAGM	Not available	£0,00
# 50	13682-31210-000 1368231210000 1368231210000	STARTER VALVE CAP CAP, STARTER	£7,39
# 51	02112-04167-000 02112-0416A-000 0211204167000	SCREW	£1,80
# 52	13628-48B00-000 1362848B00000 1362848B00000	BRACKET BRACKET ASSY	Not available	£0,00
# 53	13418-44080-000 1341844080000 1341844080000	PLUNGER GUIDE SCREW HOLDER	£16,07
# 54	13417-09210-000 1341709210000 1341709210000	SPRING	Not available	£0,00
# 55	13411-05320-000 1341105320000 1341105320000	PLUNGER ASSY	£36,32
# 56	13279-47070-000 1327947070000 1327947070000	PILOT SCREW SCREW, AIR (2 7/16)	£10,06
# 57	13268-47070-000 1326847070000 1326847070000	SPRING	£7,39
# 58	13291-29900-000 1329129900000 1329129900000	WASHER	£2,84
# 59	13295-29900-000 13295-29901-000 1329529900000	O RING, PILOT AIR SCREW O RING	£4,48
# 60	13586-48B00-000 1358648B00000 1358648B00000	SHAFT, STARTER	Not available	£0,00
# 61	13605-48B00-000 1360548B00000	SCREW	Not available	£0,00
# 62	13422-48B10-000 1342248B10000 1342248B10000	SUZUKI PART LEVER	Not available	£0,00
# 63	13628-19C00-000 1362819C00000	PLATE	Not available	£0,00
# 64	02112-05127-000 0211205127000 0211205127000	SCREW	£2,59
# 65	13628-19C10-000 1362819C10000 1362819C10000	PLATE	Not available	£0,00
# 66	09126-05005-000 0912605005000 0912605005000	REORDER ROBINSONS SCREW (5X14)	£3,84
# 67	13683-49160-000 09355-65001-600 1368349160000	HOSE HOSE (6.5X10.5X400)	£14,98
# 68	13684-22A00-000 09352-50005-600 1368422A00000	HOSE(5X8.2X600) .HOSE, AIR VENT (5X8X550Â†’500)	£6,34
# 69	13680-27A00-000 1368027A00000	HOSE ASSY	Not available	£0,00
# 70	13680-28A00-000 1368028A00000	HOSE ASSY	Not available	£0,00
# 71	13605-09300-000 1360509300000 1360509300000	SCREW	Not available	£0,00
# 72	13684-43440-000 1368443440000 1368443440000	HOSE HOSE (16X19X100)	£9,58
# 73	13683-48B00-000 09352-50901-600 1368348B00000	HOSE 5X9X600 HOSE (5X9X225!100)	£8,99
# 74	13271-28A10-000 1327128A10000 1327128A10000	REORDER ROBINSONS SPRING	Not available	£0,00
# 75	13432-47090-000 1343247090000 1343247090000	WASHER	£2,86
# 76	13422-48B00-000 1342248B00000 1342248B00000	LEVER	Not available	£0,00
# 77	13671-48B00-000 1367148B00000 1367148B00000	CLIP	Not available	£0,00
# 78	13683-48B00-000 09352-50901-600 1368348B00000	HOSE 5X9X600 HOSE (5X9X225!100)	£8,99
# 79	13685-48B00-000 1368548B00000 1368548B00000	NIPPLE	£20,14

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
