FRAME

FOOTREST FOR SUZUKI GSX-R 1100 1989

FUEL TANK (MODEL K) REFER TO FIG.35A (F-8) FOR MODEL L

(1) 43511-40C00-000

FOOTREST BAR
BAR,FRONT FOOTREST RH

(2) 43521-40C00-000

FOOTREST BAR
BAR,FRONT FOOTREST LH

(3) 43510-17C03-000

43510-17C03-000
DISCONTINUED

(3) 43511-17D01-000

FOOTREST BRACKET
DISCONTINUED

(4) 43522-17D01-000

FOOTREST BRACKET
DISCONTINUED

(5) 09139-10004-000

BOLT
DISCONTINUED

(6) 09106-10050-000

BOLT
DISCONTINUED

(7) 09164-10010-000

WASHER

(8) 43530-40C01-000

FRONT FOOTREST BOSS
BOSS, FRONT FOOTREST

(9) 43213-17C01-000

PLATE
PLATE,FRONT FOOTREST

(10) 43214-17C01-000

WASHER
WASHER,FRONT FOOTREST

(11) 43541-40C00-000

CUSHION
CUSHION,FOOTREST

(12) 43550-40C11-000

FOOTREST RUBBER
DISCONTINUED

(13) 02112-7516A-000

SCREW
SCREW, THROTTLE CABLE

(13) 02112-05167-000

SCREW
.SCREW, OUTER

(14) 02112-75207-000

SCREW
.SCREW, INNER

(14) 02112-3520B-000

INNER SCREW
SCREW,INNER

(15) 09448-18022-000

SPRING

(16) 09180-08149-000

SPACER
SPACER,FRONT FOOTREST

(17) 09140-12039-000

NUT
NUT, FRONT FOOTREST

(18) 04111-2515A-000

PIN
COTTER PIN

(19) 09200-08057-000

(20) 08322-01087-000

WASHER
.8MM FLAT WASHER, RH

(21) 43586-40C01-000

43586-40C01-000
DISCONTINUED

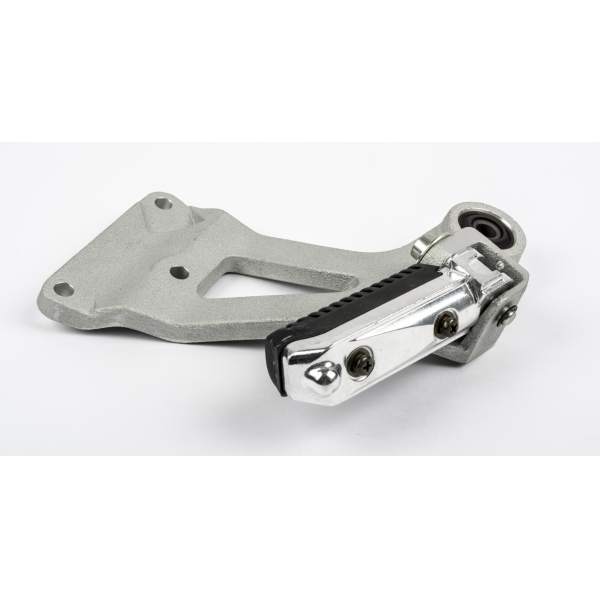

(22) 43600-40C00-000

FOOTREST ASSY
FOOTREST ASSY,PILLION RH

(23) 43700-40C00-000

SUZUKI PART
FOOTREST ASSY,PILLION LH

(24) 43610-40C00-000

RH PILLION F.REST BAR COMP.
BAR,RH

(24) 43620-40C00-000

LH PILLION F.REST BAR COMP.
BAR,LH

(25) 43550-40C11-000

FOOTREST RUBBER
DISCONTINUED

(26) 02112-7516A-000

SCREW
SCREW, THROTTLE CABLE

(26) 02112-05167-000

SCREW
.SCREW, OUTER

(27) 02112-75207-000

SCREW
.SCREW, INNER

(27) 02112-3520B-000

INNER SCREW
SCREW,INNER

(28) 43642-40C00-000

BOLT

(29) 09160-10126-000

WASHER

(30) 09440-05003-000

SPRING

(31) 43541-40C00-000

CUSHION
CUSHION,FOOTREST

(32) 06111-07004-000

BALL

(33) 08332-1106A-000

E RING
CIRCLIP

(34) 07130-0845B-000

BOLT
BOLT, UPPER,RH

(35) 01550-0825A-000

BOLT
.BOLT, LOWER RH

(36) 01550-0830B-000

BOLT
BOLT REFER TO FIG.57A(H-8) FOR MODE

	Part number	Description	Qty
# 1	43511-40C00-000 4351140C00000 4351140C00000	FOOTREST BAR BAR, FRONT FOOTREST RH	£61,45
# 2	43521-40C00-000 4352140C00000 4352140C00000	FOOTREST BAR BAR, FRONT FOOTREST LH	£61,45
# 3	43510-17C03-000 4351017C03000 4351017C03000	43510-17C03-000 DISCONTINUED	Not available	£0,00
# 3	43511-17D00-000 4351117D00000	FOOTREST BRACKET DISCONTINUED	Not available	£0,00
# 4	43522-17C02-000 4352217C02000	FOOTREST BRACKET DISCONTINUED	Not available	£0,00
# 5	43529-40C00-000 09139-10004-000 4352940C00000	BOLT DISCONTINUED	£6,96
# 6	43529-17C10-000 09106-10050-000 4352917C10000	BOLT DISCONTINUED	£7,18
# 7	09164-10005-000 09164-10010-000 0916410005000	WASHER	£7,15
# 8	43530-40C00-000 4353040C00000	FRONT FOOTREST BOSS BOSS, FRONT FOOTREST	Not available	£0,00
# 9	43213-17C01-000 4321317C01000 4321317C01000	PLATE PLATE, FRONT FOOTREST	Not available	£0,00
# 10	43214-17C01-000 4321417C01000 4321417C01000	WASHER WASHER, FRONT FOOTREST	£26,38
# 11	43541-40C00-000 4354140C00000 4354140C00000	CUSHION CUSHION, FOOTREST	Not available	£0,00
# 12	43550-40C10-000 43550-40C11-000 4355040C10000	FOOTREST RUBBER DISCONTINUED	£15,13
# 13	02112-35168-000 02112-05167-000 0211235168000	SCREW .SCREW, OUTER	£2,59
# 13	02112-75168-000 02112-7516A-000 0211275168000	SCREW SCREW, THROTTLE CABLE	£3,10
# 14	02112-35208-000 02112-3520B-000 0211235208000	INNER SCREW SCREW, INNER	£2,50
# 14	02112-75208-000 02112-75207-000 0211275208000	SCREW .SCREW, INNER	£4,33
# 15	09448-19020-000 09448-18022-000 0944819020000	SPRING	£6,01
# 16	09180-08149-000 0918008149000 0918008149000	SPACER SPACER, FRONT FOOTREST	£9,01
# 17	08310-22127-000 09140-12039-000 0831022127000	NUT NUT, FRONT FOOTREST	£4,03
# 18	04111-25158-000 04111-2515A-000 0411125158000	PIN COTTER PIN	£1,80
# 19	09200-08057-000 0920008057000 0920008057000	PIN	£3,71
# 20	08322-11088-000 08322-01087-000 0832211088000	WASHER .8MM FLAT WASHER, RH	£2,44
# 21	43586-40C00-000 4358640C00000	43586-40C01-000 DISCONTINUED	Not available	£0,00
# 22	43600-40C00-000 4360040C00000 4360040C00000	FOOTREST ASSY FOOTREST ASSY, PILLION RH	Not available	£0,00
# 23	43700-40C00-000 4370040C00000 4370040C00000	SUZUKI PART FOOTREST ASSY, PILLION LH	Not available	£0,00
# 24	43610-40C00-000 4361040C00000 4361040C00000	RH PILLION F.REST BAR COMP. BAR, RH	£80,92
# 24	43620-40C00-000 4362040C00000 4362040C00000	LH PILLION F.REST BAR COMP. BAR, LH	£80,92
# 25	43550-40C10-000 43550-40C11-000 4355040C10000	FOOTREST RUBBER DISCONTINUED	£15,13
# 26	02112-35168-000 02112-05167-000 0211235168000	SCREW .SCREW, OUTER	£2,59
# 26	02112-75168-000 02112-7516A-000 0211275168000	SCREW SCREW, THROTTLE CABLE	£3,10
# 27	02112-35208-000 02112-3520B-000 0211235208000	INNER SCREW SCREW, INNER	£2,50
# 27	02112-75208-000 02112-75207-000 0211275208000	SCREW .SCREW, INNER	£4,33
# 28	43642-40C00-000 4364240C00000 4364240C00000	BOLT	£13,18
# 29	09160-10031-000 09160-10126-000 0916010031000	WASHER	£3,40
# 30	09440-05003-000 0944005003000 0944005003000	SPRING	£2,40
# 31	43541-40C00-000 4354140C00000 4354140C00000	CUSHION CUSHION, FOOTREST	Not available	£0,00
# 32	06111-07004-000 0611107004000 0611107004000	BALL	£1,74
# 33	08332-11068-000 08332-1106A-000 0833211068000	E RING CIRCLIP	£1,56
# 34	01517-08205-000 07130-0845B-000 0151708205000	BOLT BOLT, UPPER, RH	£6,01
# 35	01517-08254-000 01550-0825A-000 0151708254000	BOLT .BOLT, LOWER RH	£2,70
# 36	01517-08304-000 01550-0830B-000 0151708304000	BOLT BOLT REFER TO FIG.57A(H-8) FOR MODE	£4,57

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
