Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CYLINDER HEAD COVER

CYLINDER HEAD FOR SUZUKI GSX-R 1100 1991

CYLINDER

Item numbers

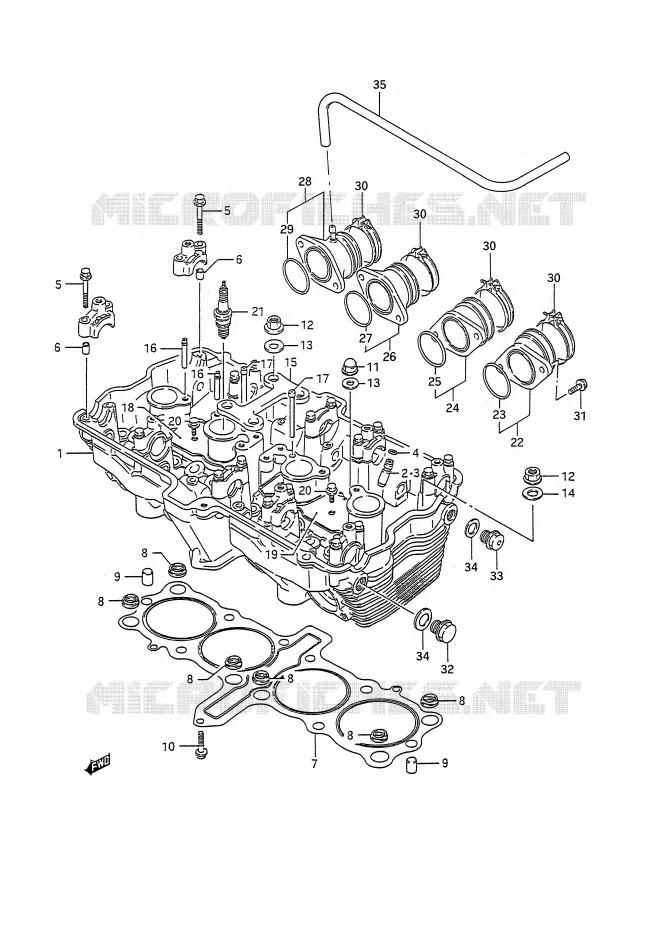

CYLINDER HEAD Suzuki MOTO 1100 GSX-R 1991 GSX-R1100M(E28)
1
2
3
4
5
5
6
6
7
8
8
8
8
8
8
9
9
10
10
11
12
12
13
13
14
15
16
16
17
17
18
19
20
20
21
21
22
23
24
25
26
27
28
29
30
30
30
30
31
32
33
34
34
35
1
HEAD, CYLINDER
HEAD ASSY, CYLINDER

11100-41C00-000   1110041C00000

1110041C00000
Not available
2
GUIDE, VALVE<br />GUIDE, VALVE, IN
GUIDE, VALVE
GUIDE, VALVE, IN

11116-06B70-000   1111606B70000

1111606B70000

Unit Price Incl. Tax

3
GUIDE, VALVE<br />GUIDE, VALVE, EX
GUIDE, VALVE
GUIDE, VALVE, EX

11116-06B70-000   1111606B70000

1111606B70000

Unit Price Incl. Tax

4
CIRCLIP<br />RING, VALVE GUIDE
CIRCLIP
RING, VALVE GUIDE

09381-10004-000   0938110004000

0938110004000

Unit Price Incl. Tax

5
BOLT
BOLT

09103-06026-000   0910306026000

0910306026000

Unit Price Incl. Tax

6
PIN (6.2X8X11)<br />PIN
PIN (6.2X8X11)
PIN

09206-08001-000   0920608001000

0920608001000

Unit Price Incl. Tax

7
11141-48B21-000
GASKET, CYLINDER HEAD

11141-48B21-000   1114148B21000

1114148B21000
Not available
8
11143-48B01-000
O RING

11143-48B01-000   1114348B01000

1114348B01000
Not available
9
PIN
PIN

09209-11007-000   0920911007000

0920911007000

Unit Price Incl. Tax

10
01517-06254-000
BOLT, CENTER

01517-06254-000   0151706254000

0151706254000
Not available
10
01517-06305-000
BOLT, EX SHAFT

01517-06305-000   0151706305000

0151706305000
Not available
11
NUT
NUT

09159-10069-000   0915910069000

0915910069000

Unit Price Incl. Tax

12
08316-16106-000
NUT

08316-16106-000   0831616106000

0831616106000
Not available
13
GASKET
GASKET

09168-10031-000   0916810031000

0916810031000

Unit Price Incl. Tax

14
09160-10060-000
WASHER

09160-10060-000   0916010060000

0916010060000
Not available
15
PLATE, HEAD REINFORCEMENT
PLATE, HEAD REINFORCEMENT

11138-40C10-000   1113840C10000

1113840C10000
Not available
16
PIPE, CYLINDER HEAD OIL<br />PIPE, OIL NO.1,2
PIPE, CYLINDER HEAD OIL
PIPE, OIL NO.1, 2

11131-27A00-000   1113127A00000

1113127A00000

Unit Price Incl. Tax

17
PIPE, OIL NO.3
PIPE, OIL NO.3

11133-27A00-000   1113327A00000

1113327A00000

Unit Price Incl. Tax

18
PLATE, OIL PIPE NO.1<br />PLATE, OIL PIPE RH
PLATE, OIL PIPE NO.1
PLATE, OIL PIPE RH

11135-27A02-000   1113527A02000

1113527A02000
Not available
19
PLATE, OIL PIPE NO.1<br />PLATE, OIL PIPE LH
PLATE, OIL PIPE NO.1
PLATE, OIL PIPE LH

11136-27A02-000   1113627A02000

1113627A02000

Unit Price Incl. Tax

20
01517-06128-000
BOLT, BRACKET REAR

01517-06128-000   0151706128000

0151706128000
Not available
21
JR10B
SPARK PLUG (NGK, JR10B)

09482-00391-000   0948200391000

0948200391000

Unit Price Incl. Tax

21
JR9B<br />SPARK PLUG (NGK,JR9B)
JR9B
SPARK PLUG (NGK, JR9B)

09482-00389-000   0948200389000

0948200389000

Unit Price Incl. Tax

22
INTAKE PIPE ASSY
PIPE, INTAKE LH

13101-41C00-000   1310141C00000

1310141C00000

Unit Price Incl. Tax

23
O RING
O RING

09280-40010-000   0928040010000

0928040010000

Unit Price Incl. Tax

24
INTAKE PIPE ASSY
PIPE, INTAKE ML

13102-41C00-000   1310241C00000

1310241C00000

Unit Price Incl. Tax

25
O RING
O RING

09280-40010-000   0928040010000

0928040010000

Unit Price Incl. Tax

26
INTAKE PIPE ASSY
PIPE, INTAKE MR

13103-41C00-000   1310341C00000

1310341C00000

Unit Price Incl. Tax

27
O RING
O RING

09280-40010-000   0928040010000

0928040010000

Unit Price Incl. Tax

28
INTAKE PIPE ASSY
PIPE, INTAKE RH

13104-41C00-000   1310441C00000

1310441C00000
Not available
29
O RING
O RING

09280-40010-000   0928040010000

0928040010000

Unit Price Incl. Tax

30
09402-56208-000
CLAMP

09402-56208-000   0940256208000

0940256208000
Not available
31
02152-06165-000
.SCREW

02152-06165-000   0215206165000

0215206165000
Not available
32
DRAIN PLUG<br />PLUG, CYLINDER HEAD EX
DRAIN PLUG
PLUG, CYLINDER HEAD EX

09247-14034-000   0924714034000

0924714034000
Not available
33
DRAIN PLUG<br />PLUG, CYLINDER HEAD IN
DRAIN PLUG
PLUG, CYLINDER HEAD IN

09247-14032-000   0924714032000

0924714032000

Unit Price Incl. Tax

34
GASKET
GASKET

09168-14004-000   0916814004000

0916814004000

Unit Price Incl. Tax

35
09352-50823-300
HOSE, FUEL COCK (L:300†’200)

09352-50823-300   0935250823300

0935250823300
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Suzuki 1100 GSX-R 1991

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 1100 GSX-R 1991

Choose your Suzuki 1100 1991 GSX-R model

1100 GSX-R 1991 GSX-R1100M(E28)

GSX-R 1100

Suzuki GSX-R

Displacement: 1100 cc
Year: 1991
Model code GSX-R1100M(E28)
