CLUTCH FOR SUZUKI GSX-R 1100 1992

TRANSMISSION

(1) 21200-40813-000

21200-40813-000
GEAR, PRIMARY DRIVEN (NT:72)

(1) 21200-40820-000

21200-40820-000
GEAR, PRIMARY DRIVEN (NT:72)

(2) 09160-25071-000

WASHER 25X54X2.5
WASHER

(3) 09263-35017-000

ROLLER BEARING
BEARING

(4) 21410-40C01-000

CLUTCH SLEEVE HUB
HUB, SLEEVE

(5) 09140-24014-000

NUT

(6) 09164-24006-000

WASHER

(7) 09160-25056-000

WASHER
WASHER (25X50X2.5)

(8) 21400-40C01-000

CLUTCH PLATE ASSY
PLATE ASSY, CLUTCH

(9) 21441-48B00-000

CLUTCH DRIVE PLATE
PLATE, DRIVE NO.1 (T:2.6)

(10) 21451-48B00-000

CLUTCH DRIVEN PLATE
PLATE, DRIVEN (T:2)

(11) 09164-00007-000

WAVE WASHER

(12) 21471-40C01-000

SEAT
SEAT, WAVE WASHER

(13) 21462-40C02-000

CLUTCH PRESSURE PLATE
DISC, PRESSURE

(14) 21463-40C01-000

CLUTCH RELEASE LIFTER
LIFTER, CLUTCH PRESSURE DISK

(15) 21611-40C01-000

HOLDER
HOLDER, CLUTCH SPRING

(16) 09164-47001-000

SPRING

(17) 21623-40C00-000

SEAT, CLUTCH SPRING

(18) 09381-84003-000

CIRCLIP

(19) 22721-06B02-000

22721-06B02-000
GEAR, ALTERNATOR DRIVE (NT:37/66)

(20) 23121-31E00-000

PIECE CLUTCH PUSH
PIECE, PUSH

(21) 09263-15003-000

ROLLER BEARING
BEARING

(22) 09160-15045-000

WASHER
WASHER (15X20X1)

(23) 23110-27A00-000

ROD COMP CLUTCH
ROD, PUSH RH

(24) 23111-05A01-000

CLUTCH PUSH ROD
ROD, PUSH LH (L:101.5)

(25) 09285-06015-000

OIL SEAL

(26) 23160-06B03-000

CYLINDER,CL. REL. GSF1200
CYLINDER, CLUTCH RELEASE

(27) 23163-06B00-000

CUP

(28) 23164-05A00-000

SPRING

(29) 59121-01A00-000

BLEEDER

(30) 59122-01A00-000

CAP, BLEEDER

(31) 04211-09129-000

(32) 07130-0625B-000

BOLT
BOLT (6X25)

(33) 23117-46E00-000

CLUTCH RELEASE CYL. COVER
COVER, CYLINDER

(34) 02112-0610B-000

SCREW CENTER SHAFT
SCREW

	Part number	Description	Qty
# 1	21200-40813-000 2120040813000 2120040813000	21200-40813-000 GEAR, PRIMARY DRIVEN (NT:72)	Not available	£0,00
# 1	21200-40820-000 2120040820000 2120040820000	21200-40820-000 GEAR, PRIMARY DRIVEN (NT:72)	Not available	£0,00
# 2	09160-25067-000 09160-25071-000 0916025067000	WASHER 25X54X2.5 WASHER	£19,39
# 3	09263-35017-000 0926335017000 0926335017000	ROLLER BEARING BEARING	£53,71
# 4	21410-40C01-000 2141040C01000 2141040C01000	CLUTCH SLEEVE HUB HUB, SLEEVE	Not available	£0,00

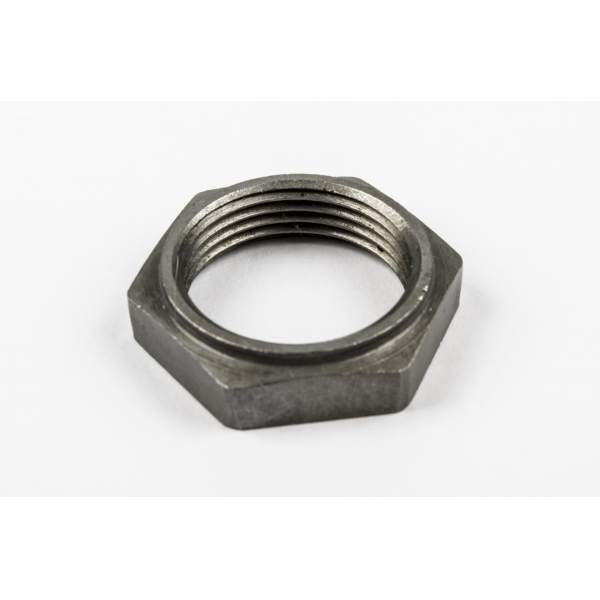

# 5	09140-24014-000 0914024014000 0914024014000	NUT	Not available	£0,00
# 6	09164-24006-000 0916424006000 0916424006000	WASHER	£5,90
# 7	09160-25056-000 0916025056000 0916025056000	WASHER WASHER (25X50X2.5)	£18,74
# 8	21400-40C00-000 2140040C00000	CLUTCH PLATE ASSY PLATE ASSY, CLUTCH	Not available	£0,00
# 9	21441-48B00-000 2144148B00000 2144148B00000	CLUTCH DRIVE PLATE PLATE, DRIVE NO.1 (T:2.6)	£22,90
# 10	21451-48B00-000 2145148B00000 2145148B00000	CLUTCH DRIVEN PLATE PLATE, DRIVEN (T:2)	£12,97
# 11	09164-00007-000 0916400007000 0916400007000	WAVE WASHER	Not available	£0,00
# 12	21471-40C01-000 2147140C01000 2147140C01000	SEAT SEAT, WAVE WASHER	Not available	£0,00
# 13	21462-40C02-000 2146240C02000 2146240C02000	CLUTCH PRESSURE PLATE DISC, PRESSURE	Not available	£0,00
# 14	21463-40C01-000 2146340C01000 2146340C01000	CLUTCH RELEASE LIFTER LIFTER, CLUTCH PRESSURE DISK	£71,83
# 15	21611-40C01-000 2161140C01000 2161140C01000	HOLDER HOLDER, CLUTCH SPRING	Not available	£0,00
# 16	09164-47001-000 0916447001000 0916447001000	SPRING	£13,22
# 17	21623-40C00-000 2162340C00000 2162340C00000	SEAT, CLUTCH SPRING	Not available	£0,00
# 18	09381-84002-000 09381-84003-000 0938184002000	CIRCLIP	£18,56
# 19	22721-06B02-000 2272106B02000 2272106B02000	22721-06B02-000 GEAR, ALTERNATOR DRIVE (NT:37/66)	Not available	£0,00
# 20	23121-07A00-000 23121-31E00-000 2312107A00000	PIECE CLUTCH PUSH PIECE, PUSH	£38,51
# 21	09263-15003-000 0926315003000 0926315003000	ROLLER BEARING BEARING	£5,35
# 22	09160-15015-000 09160-15045-000 0916015015000	WASHER WASHER (15X20X1)	£6,54
# 23	23110-27A00-000 2311027A00000 2311027A00000	ROD COMP CLUTCH ROD, PUSH RH	£34,87
# 24	23111-05A01-000 2311105A01000 2311105A01000	CLUTCH PUSH ROD ROD, PUSH LH (L:101.5)	£26,64
# 25	09285-06015-000 0928506015000 0928506015000	OIL SEAL	£6,28
# 26	23160-06B01-000 23160-06B03-000 2316006B01000	CYLINDER, CL. REL. GSF1200 CYLINDER, CLUTCH RELEASE	£154,43
# 27	23163-06B00-000 2316306B00000 2316306B00000	CUP	£4,39
# 28	23164-05A00-000 2316405A00000 2316405A00000	SPRING	£7,39
# 29	59121-01A00-000 5912101A00000 5912101A00000	BLEEDER	£7,88
# 30	59122-01A00-000 5912201A00000 5912201A00000	CAP, BLEEDER	£3,49
# 31	04211-09129-000 0421109129000 0421109129000	PIN	£2,27
# 32	07110-06255-000 07130-0625B-000 0711006255000	BOLT BOLT (6X25)	£4,02
# 33	23117-27A03-000 23117-46E00-000 2311727A03000	CLUTCH RELEASE CYL. COVER COVER, CYLINDER	£11,21
# 34	02112-06106-000 02112-0610B-000 0211206106000	SCREW CENTER SHAFT SCREW	£2,44

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
