FRONT FENDER

REAR FENDER FOR SUZUKI GSX-R 1100 1992

FAIRING (MODEL M 3CG / 05X) REFER TO FIG.57 (H-11) FOR MODEL M 3SL

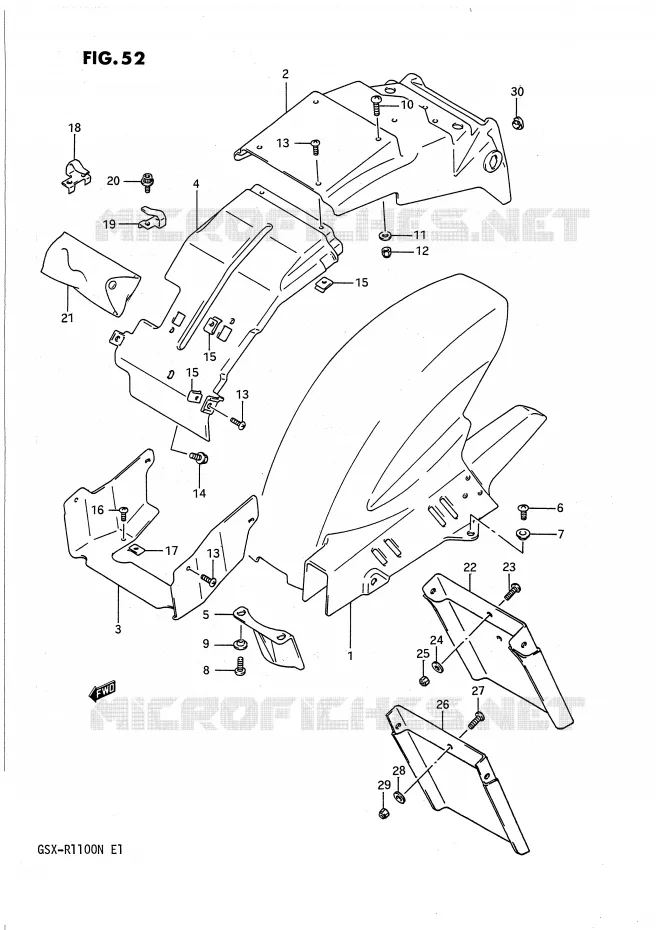

REAR FENDER
FENDER, REAR LOWER

63110-40C00-000 6311040C00000

Not available

REAR FENDER
FENDER, REAR UPPER

63112-40C00-000 6311240C00000

Not available

FENDER, REAR UPPER

63112-40C10-000 6311240C10000

Not available

FENDER, REAR UPPER

63112-40C20-000 6311240C20000

Not available

63113-40C00-000
FENDER, REAR UPPER FRONT

63113-40C00-000 6311340C00000

Not available

REAR FENDER
FENDER, REAR UPPER FRONT

63114-17C00-000 6311417C00000

Not available

63411-42A00-000
MUD GUARD, REAR UNIT

63411-42A00-000 6341142A00000

Not available

02142-06104-000
SCREW, LOWER

02142-06104-000 0214206104000

Not available

WASHER

09169-06060-000 0916906060000

£4,14

Unit Price Incl. Tax

SCREW
SCREW, MUD GUARD

02142-06167-000 0214206167000

£2,48

Unit Price Incl. Tax

09169-06025-000
WASHER, INNER

09169-06025-000 0916906025000

Not available

02142-06164-000
SCREW, CENTER COVER & FENDER

02142-06164-000 0214206164000

Not available

09160-06006-000
WASHER, FENDER & BRACE

09160-06006-000 0916006006000

Not available

08319-21066-000
NUT

08319-21066-000 0831921066000

Not available

02142-05124-000
SCREW, CENTER PANEL (5X12)

02142-05124-000 0214205124000

Not available

01517-06105-000
PLUG, OIL GALLERY

01517-06105-000 0151706105000

Not available

94484-32B00-000
NUT

94484-32B00-000 9448432B00000

Not available

02142-05124-000
SCREW, CENTER PANEL (5X12)

02142-05124-000 0214205124000

Not available

94484-32B00-000
NUT

94484-32B00-000 9448432B00000

Not available

SUZUKI PART
HOLDER, HELMET RH

95721-18D00-000 9572118D00000

Not available

SUZUKI PART
HOLDER, HELMET LH

95731-18D00-000 9573118D00000

Not available

01107-06125-000
BOLT, EXTENSION, FRONT

01107-06125-000 0110706125000

Not available

07120-06125-000
BOLT, OIL GALLERY

07120-06125-000 0712006125000

Not available

09800-20032-000
TOOL ASSY

09800-20032-000 0980020032000

Not available

63311-17C00-000
EXTENSION, REAR FENDER

63311-17C00-000 6331117C00000

Not available

EXTENSION, REAR FENDER

63311-17C20-000 6331117C20000

Not available

02142-06164-000
SCREW, CENTER COVER & FENDER

02142-06164-000 0214206164000

Not available

09160-06006-000
WASHER, FENDER & BRACE

09160-06006-000 0916006006000

Not available

08319-21066-000
NUT

08319-21066-000 0831921066000

Not available

63331-48B02-000
MUD GUARD, REAR FENDER

63331-48B02-000 6333148B02000

Not available

MUD GUARD
MUD GUARD, REAR FENDER

63331-48B12-000 6333148B12000

Not available

02142-06164-000
SCREW, CENTER COVER & FENDER

02142-06164-000 0214206164000

Not available

09160-06006-000
WASHER, FENDER & BRACE

09160-06006-000 0916006006000

Not available

08319-21066-000
NUT

08319-21066-000 0831921066000

Not available

CAP

09250-08007-000 0925008007000

£2,20

Unit Price Incl. Tax
