HEADLIGHT (MODEL T / V / W)

INDICATORS (MODEL P / R) FOR SUZUKI GSX-R 1100 1993

INDICATORS (MODEL S) REFER TO FIG.29B(1-I-4) FOR MODEL T/V/W

Item numbers

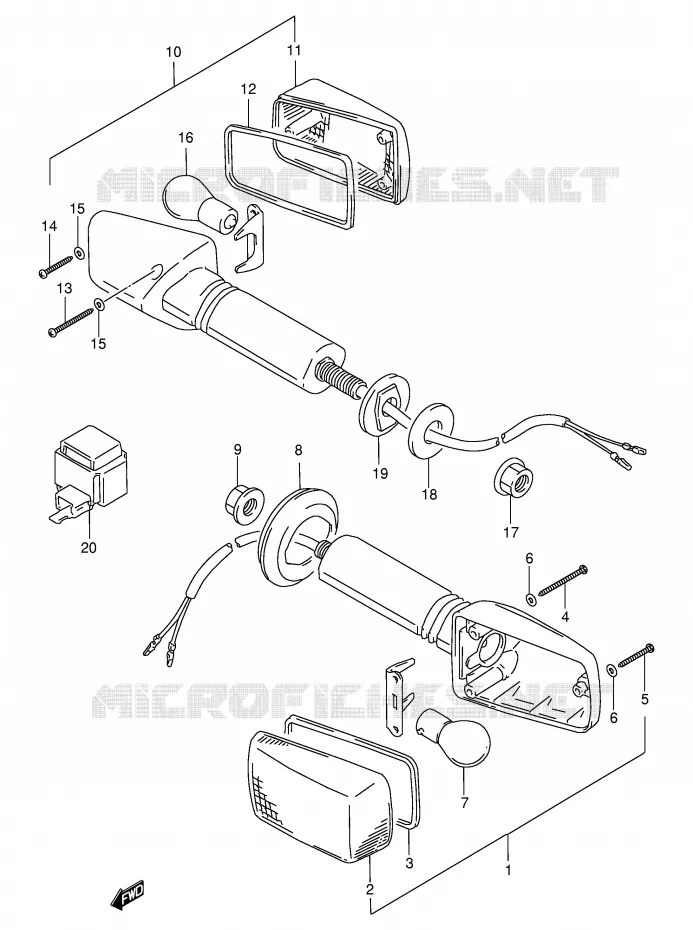

INDICATORS (MODEL P/R) Suzuki MOTO 1100 GSX-R 1993 GSX-R1100WP(E2)
1
1
2
3
4
5
6
6
7
8
9
10
10
11
12
13
14
15
15
16
17
18
19
20
1
LAMP ASSY, FRONT TURNSIGNAL
LAMP ASSY, FRONT TURNSIGNAL

35601-01D00-000   3560101D00000

3560101D00000
Not available
1
INDICATOR<br />LAMP ASSY, FRONT TURNSIGNAL
INDICATOR
LAMP ASSY, FRONT TURNSIGNAL

35601-01D10-000   3560101D10000

3560101D10000
Not available
2
TURN SIGNAL LENS<br />LENS
TURN SIGNAL LENS
LENS

35612-17C20-000   3561217C20000

3561217C20000

Unit Price Incl. Tax

3
LENS GASKET<br />GASKET
LENS GASKET
GASKET

35613-27A00-000   3561327A00000

3561327A00000

Unit Price Incl. Tax

4
TAPPING SCREW
TAPPING SCREW

35623-27A00-000   3562327A00000

3562327A00000

Unit Price Incl. Tax

5
SCREW<br />TAPPING SCREW
SCREW
TAPPING SCREW

35725-40511-000   3572540511000

3572540511000

Unit Price Incl. Tax

6
GASKET
GASKET

35627-27A02-000   3562727A02000

3562727A02000

Unit Price Incl. Tax

7
BULB (12V,21W)
BULB (12V, 21W)

09471-12045-000   0947112045000

0947112045000

Unit Price Incl. Tax

8
GROMMET
GROMMET

35674-27A01-000   3567427A01000

3567427A01000

Unit Price Incl. Tax

9
08316-20103-000
NUT

08316-20103-000   0831620103000

0831620103000
Not available
10
INDICATOR<br />LAMP ASSY, REAR TURNSIGNAL
INDICATOR
LAMP ASSY, REAR TURNSIGNAL

35603-17C41-999   3560317C41999

3560317C41999
Not available
10
INDICATOR
LAMP ASSY, REAR TURNSIGNAL

35603-17C51-999   3560317C51999

3560317C51999
Not available
11
TURN SIGNAL LENS<br />LENS
TURN SIGNAL LENS
LENS

35652-17C20-000   3565217C20000

3565217C20000

Unit Price Incl. Tax

12
LENS GASKET<br />GASKET
LENS GASKET
GASKET

35613-27A00-000   3561327A00000

3561327A00000

Unit Price Incl. Tax

13
TAPPING SCREW
TAPPING SCREW

35623-27A00-000   3562327A00000

3562327A00000

Unit Price Incl. Tax

14
SCREW<br />TAPPING SCREW
SCREW
TAPPING SCREW

35725-40511-000   3572540511000

3572540511000

Unit Price Incl. Tax

15
GASKET
GASKET

35627-27A02-000   3562727A02000

3562727A02000

Unit Price Incl. Tax

16
BULB (12V,21W)
BULB (12V, 21W)

09471-12045-000   0947112045000

0947112045000

Unit Price Incl. Tax

17
08316-20103-000
NUT

08316-20103-000   0831620103000

0831620103000
Not available
18
WASHER<br />WASHER (10.5X30X3.2)
WASHER
WASHER (10.5X30X3.2)

09160-10094-000   0916010094000

0916010094000

Unit Price Incl. Tax

19
SPACER
SPACER

35695-17C00-000   3569517C00000

3569517C00000

Unit Price Incl. Tax

20
TURN SIGNAL RELAY<br />RELAY ASSY, TURNSIGNAL
TURN SIGNAL RELAY
RELAY ASSY, TURNSIGNAL

38610-45D01-000   3861045D01000

3861045D01000

Unit Price Incl. Tax

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
