CARBURETOR (MODEL P / R / S / T) FOR SUZUKI GSX-R 1100 1993

CARBURETOR (MODEL V / W)

Item numbers

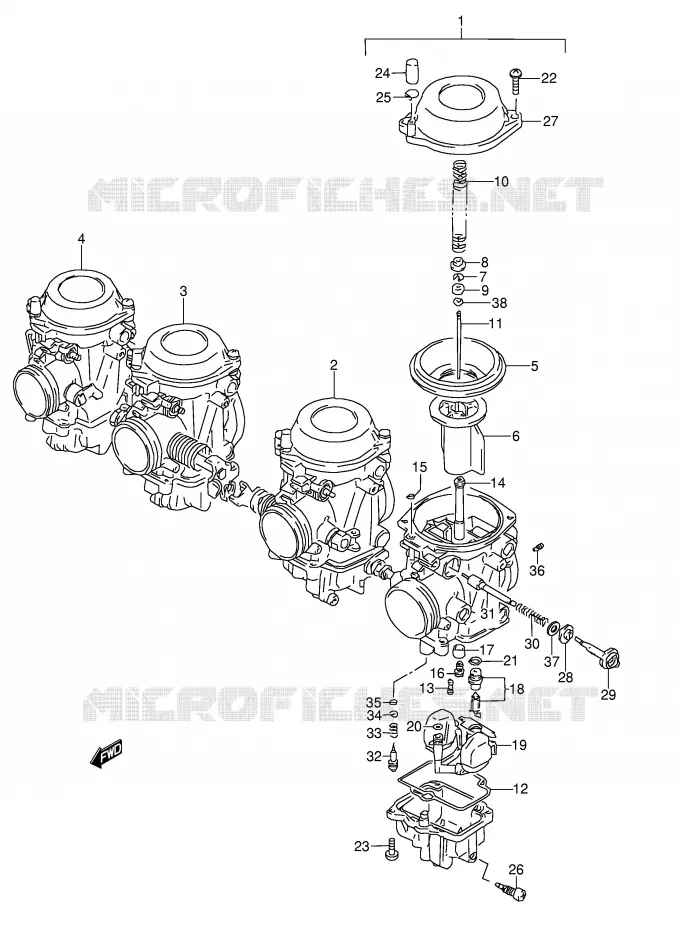

CARBURETOR (MODEL P/R/S/T) Suzuki MOTO 1100 GSX-R 1993 GSX-R1100WP(E28)
1
1
2
2
3
3
4
4
5
6
6
7
8
9
10
10
11
12
13
14
14
15
16
16
16
16
17
18
18
19
19
20
21
22
23
23
24
25
26
27
28
29
30
31
32
32
33
34
35
36
37
38
1
CARBURETOR ASSY, LH

13201-46E00-000   1320146E00000

1320146E00000
Not available
1
CARBURETOR ASSY, LH

13201-46EH0-000   1320146EH0000

1320146EH0000
Not available
2
CARBURETOR ASSY, ML

13202-46E00-000   1320246E00000

1320246E00000
Not available
2
CARBURETOR ASSY, ML

13202-46EH0-000   1320246EH0000

1320246EH0000
Not available
3
CARBURETOR ASSY, MR

13203-46E00-000   1320346E00000

1320346E00000
Not available
3
CARBURETOR ASSY, MR

13203-46EH0-000   1320346EH0000

1320346EH0000
Not available
4
CARBURETOR ASSY, RH

13204-46E00-000   1320446E00000

1320446E00000
Not available
4
CARBURETOR ASSY, RH

13204-46EH0-000   1320446EH0000

1320446EH0000
Not available
5
DIAPHRAGM

13507-07D01-000   1350707D01000

1350707D01000
Not available
6
VALVE, PISTON

13501-07D00-000   1350107D00000

1350107D00000
Not available
6
VALVE, PISTON

13501-17D00-000   1350117D00000

1350117D00000
Not available
7
E RING
E RING

13394-31210-000   1339431210000

1339431210000

Unit Price Incl. Tax

8
RING

13331-12D00-000   1333112D00000

1333112D00000

Unit Price Incl. Tax

9
RING

13387-07D00-000   1338707D00000

1338707D00000

Unit Price Incl. Tax

10
SPRING

13417-17D00-000   1341717D00000

1341717D00000

Unit Price Incl. Tax

10
SPRING

13417-31E00-000   1341731E00000

1341731E00000
Not available
11
JET NEEDLE 62D13-3
JET NEEDLE (6ZD13-4)

13383-41C00-000   1338341C00000

1338341C00000

Unit Price Incl. Tax

12
FL CHAMBER GASKET ASB<br />GASKET, FLOAT CHAMBER
FL CHAMBER GASKET ASB
GASKET, FLOAT CHAMBER

13258-44B00-000   1325844B00000

1325844B00000

Unit Price Incl. Tax

13
PILOT JET<br />JET, PILOT (40)
PILOT JET
JET, PILOT (40)

09492-40014-000   0949240014000

0949240014000

Unit Price Incl. Tax

14
JET NEEDLE P-2
NEEDLE JET (P-2)

09494-00800-000   0949400800000

0949400800000
Not available
14
REORDER ROBINSONS
NEEDLE JET (P-2)

09494-00857-000   0949400857000

0949400857000
Not available
15
O RING
O RING

13278-02340-000   1327802340000

1327802340000

Unit Price Incl. Tax

16
MAIN JET<br />JET, MAIN (122.5)
MAIN JET
JET, MAIN (122.5)

09491-24013-000   0949124013000

0949124013000

Unit Price Incl. Tax

16
MAIN JET
JET, MAIN (125)

09491-25010-000   0949125010000

0949125010000

Unit Price Incl. Tax

16
MAIN JET (127.5)
JET, MAIN (127.5)

09491-25011-000   0949125011000

0949125011000

Unit Price Incl. Tax

17
REORDER ROBINSONS
RING

13331-07D00-000   1333107D00000

1333107D00000

Unit Price Incl. Tax

18
13370-07D00-000
.VALVE ASSY, NEEDLE

13370-07D00-000   1337007D00000

1337007D00000
Not available
18
13370-46E10-000
.VALVE ASSY, NEEDLE

13370-46E10-000   1337046E10000

1337046E10000
Not available
19
FLOAT ASSY
FLOAT ASSY

13240-14D10-000   1324014D10000

1324014D10000

Unit Price Incl. Tax

19
FLOAT ASSY

13240-07D00-000   1324007D00000

1324007D00000
Not available
20
O RING
O RING

13374-46710-000   1337446710000

1337446710000

Unit Price Incl. Tax

21
13374-44080-000
..O RING

13374-44080-000   1337444080000

1337444080000
Not available
22
02112-75163-000
SCREW

02112-75163-000   0211275163000

0211275163000
Not available
23
13601-05148-000
SCREW 5X14

13601-05148-000   1360105148000

1360105148000
Not available
23
13602-05148-000
SCREW

13602-05148-000   1360205148000

1360205148000
Not available
24
CAP
CAP

13508-17C00-000   1350817C00000

1350817C00000

Unit Price Incl. Tax

25
CLIP
CLIP

13671-05A40-000   1367105A40000

1367105A40000

Unit Price Incl. Tax

26
SCREW<br />SCREW, DRAIN
SCREW
SCREW, DRAIN

13247-13A00-000   1324713A00000

1324713A00000

Unit Price Incl. Tax

27
DIAPHRAGM COVER
COVER, DIAPHRAGM

13502-41C00-000   1350241C00000

1350241C00000

Unit Price Incl. Tax

28
STARTER CAP<br />CAP, STARTER
STARTER CAP
CAP, STARTER

13418-17C00-000   1341817C00000

1341817C00000
Not available
29
STARTER CAP<br />HOLDER
STARTER CAP
HOLDER

13418-17C10-000   1341817C10000

1341817C10000

Unit Price Incl. Tax

30
SPRING
SPRING

13417-26D00-000   1341726D00000

1341726D00000

Unit Price Incl. Tax

31
PLUNGER ASSY
PLUNGER ASSY

13411-05320-000   1341105320000

1341105320000

Unit Price Incl. Tax

32
PILOT SCREW<br />SCREW, AIR (2.0)
PILOT SCREW
SCREW, AIR (2.0)

13279-47070-000   1327947070000

1327947070000

Unit Price Incl. Tax

33
SPRING
SPRING

13268-47070-000   1326847070000

1326847070000

Unit Price Incl. Tax

34
WASHER
WASHER

13291-29900-000   1329129900000

1329129900000

Unit Price Incl. Tax

35
O RING
O RING

13295-29900-000   1329529900000

1329529900000
Not available
36
JET AIR
JET, AIR (1.2)

09493-24007-000   0949324007000

0949324007000

Unit Price Incl. Tax

37
WASHER

13432-47090-000   1343247090000

1343247090000

Unit Price Incl. Tax

38
WASHER

13382-46E00-000   1338246E00000

1338246E00000

Unit Price Incl. Tax

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
