Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

INSTALLATION PARTS (MODEL P / R) REFER TO FIG.46(2-A-15) FOR MODEL S/T/V/W

FAIRING (MODEL S) FOR SUZUKI GSX-R 1100 1996

FAIRING (MODEL T) COLOR : E9P = 0JW(WHITE), Z12(BLUE)

Item numbers

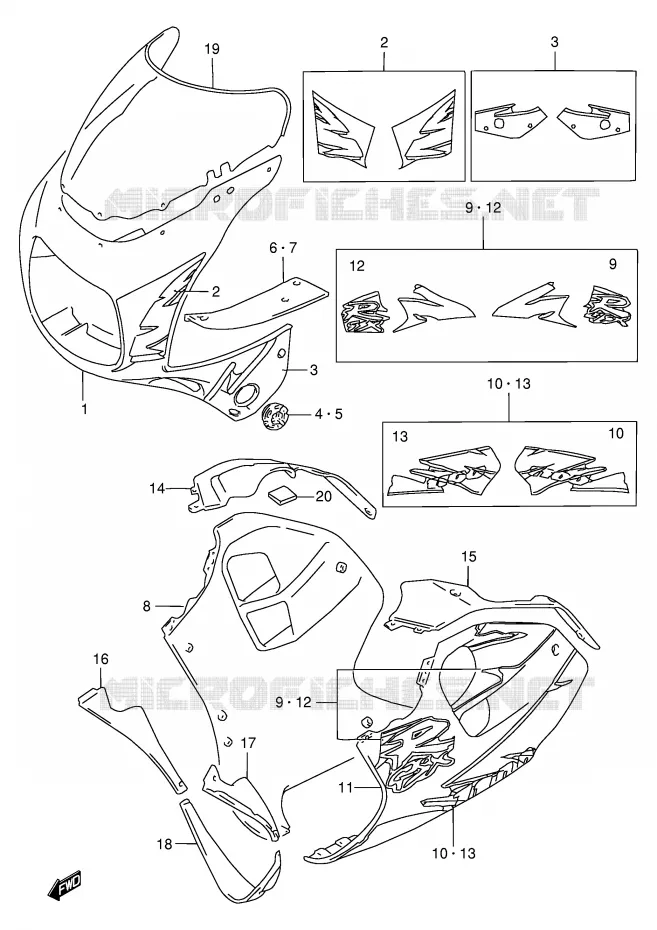

FAIRING (MODEL S) Suzuki MOTO 1100 GSX-R 1996 GSX-R1100WSKT(E2)
1
1
1
2
2
2
2
2
2
3
3
3
3
3
3
4
5
6
7
8
8
8
9
9
9
9
9
9
9
9
9
10
10
10
10
10
10
10
10
10
11
11
11
12
12
12
12
12
12
12
12
12
13
13
13
13
13
13
13
13
13
14
15
16
17
18
19
20
20
1
94400-17EG0-0JW
DISCONTINUED

94400-17EG0-0JW   9440017EG00JW

9440017EG00JW
Not available
1
94400-17EG0-2VX
COWLING ASSY, BODY (BLACK)

94400-17EG0-2VX   9440017EG02VX

9440017EG02VX
Not available
1
94400-17EG0-33J
COWLING ASSY, BODY (BLACK)

94400-17EG0-33J   9440017EG033J

9440017EG033J
Not available
2
FRONT TAPE SET (FOR 0JW)
TAPE SET, BODY FRONT

68270-17E50-D4H   6827017E50D4H

6827017E50D4H
Not available
2
FRONT TAPE SET (FOR 2VX)
TAPE SET, BODY FRONT

68270-17E50-D6A   6827017E50D6A

6827017E50D6A
Not available
2
FRONT TAPE SET (FOR 33J)
TAPE SET, BODY FRONT

68270-17E50-D6B   6827017E50D6B

6827017E50D6B
Not available
3
TAPE SET, BODY SIDE

68280-17E20-D4G   6828017E20D4G

6828017E20D4G
Not available
3
BODY SIDE TAPE SET
TAPE SET, BODY SIDE

68280-17E20-D5Y   6828017E20D5Y

6828017E20D5Y
Not available
3
BODY SIDE TAPE SET
TAPE SET, BODY SIDE

68280-17E20-D5Z   6828017E20D5Z

6828017E20D5Z
Not available
4
94416-17E20-000
PLATE, TURNSIGNAL RH

94416-17E20-000   9441617E20000

9441617E20000
Not available
5
94417-17E20-000
.PLATE, TURNSIGNAL LH

94417-17E20-000   9441717E20000

9441717E20000
Not available
6
94415-17E20-000
PANEL, UPPER RH

94415-17E20-000   9441517E20000

9441517E20000
Not available
7
94425-17E20-000
PANEL, UPPER LH

94425-17E20-000   9442517E20000

9442517E20000
Not available
8
RH UNDER COWLING ASSY. (BLUE)
COWLING ASSY, UNDER RH (BLUE)

94407-46E40-1LE   9440746E401LE

9440746E401LE
Not available
8
REORDER ROBINSONS
COWLING ASSY, UNDER RH (PURPLE)

94407-46E40-1TU   9440746E401TU

9440746E401TU
Not available
8
REORDER ROBINSONS
COWLING ASSY, UNDER RH (RED)

94407-46E40-1TY   9440746E401TY

9440746E401TY
Not available
9
REORDER ROBINSONS
TAPE SET, UNDER RH

68180-46E40-Y76   6818046E40Y76

6818046E40Y76
Not available
9
RH UNDER TAPE SET (FOR 1TY)
TAPE SET, UNDER RH

68180-46E40-Y77   6818046E40Y77

6818046E40Y77
Not available
9
REORDER ROBINSONS
TAPE SET, UNDER RH

68180-46E40-Y78   6818046E40Y78

6818046E40Y78
Not available
10
REORDER ROBINSONS
TAPE, UNDER RH

68185-46E00-D6C   6818546E00D6C

6818546E00D6C
Not available
10
RH UNDER TAPE (FOR 1TY)
TAPE, UNDER RH

68185-46E00-D6D   6818546E00D6D

6818546E00D6D
Not available
10
REORDER ROBINSONS
TAPE, UNDER RH

68185-46E00-D6E   6818546E00D6E

6818546E00D6E
Not available
11
LH UNDER COWLING ASSY. (BLUE)
COWLING ASSY, UNDER LH (BLUE)

94408-46E40-1LE   9440846E401LE

9440846E401LE
Not available
11
COWLING ASSY, UNDER LH (PURPLE)

94408-46E40-1TU   9440846E401TU

9440846E401TU
Not available
11
REORDER ROBINSONS
COWLING ASSY, UNDER LH (RED)

94408-46E40-1TY   9440846E401TY

9440846E401TY
Not available
12
REORDER ROBINSONS
TAPE SET, UNDER LH

68190-46E40-Y76   6819046E40Y76

6819046E40Y76
Not available
12
REORDER ROBINSONS
TAPE SET, UNDER LH

68190-46E40-Y77   6819046E40Y77

6819046E40Y77
Not available
12
REORDER ROBINSONS
TAPE SET, UNDER LH

68190-46E40-Y78   6819046E40Y78

6819046E40Y78
Not available
13
REORDER ROBINSONS
TAPE, UNDER LH

68195-46E00-D6C   6819546E00D6C

6819546E00D6C
Not available
13
LH UNDER TAPE (FOR 1TY)
TAPE, UNDER LH

68195-46E00-D6D   6819546E00D6D

6819546E00D6D
Not available
13
LH UNDER TAPE (FOR 1TU)
TAPE, UNDER LH

68195-46E00-D6E   6819546E00D6E

6819546E00D6E
Not available
14
R.H. LOWER PANEL
PANEL, LOWER RH

94416-46E20-000   9441646E20000

9441646E20000
Not available
15
L.H. LOWER PANEL
PANEL, LOWER LH

94426-46E20-000   9442646E20000

9442646E20000
Not available
16
REORDER ROBINSONS
COWLING, UNDER INNER RH (BLACK)

94461-46E00-019   9446146E00019

9446146E00019
Not available
17
LH UNDER INNER COWLING BLACK
COWLING, UNDER INNER LH (BLACK)

94462-46E00-019   9446246E00019

9446246E00019
Not available
18
UNDER CENTRE COWLING
COWLING, UNDER CENTER (BLACK)

94498-46E00-019   9449846E00019

9449846E00019

Unit Price Incl. Tax

19
WINDSCREEN SET
SCREEN SET, WIND

94610-46E20-000   9461046E20000

9461046E20000
Not available
20
CHAIN CASE CUSHION

61374-08010-000   6137408010000

6137408010000
Not available
20
94475-48B10-000
CUSHION, LOWER PANEL RH

94475-48B10-000   9447548B10000

9447548B10000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
