MUFFLER (MODEL P / R) FOR SUZUKI GSX-R 1100 1997

MUFFLER (MODEL S / T / V / W)

Item numbers

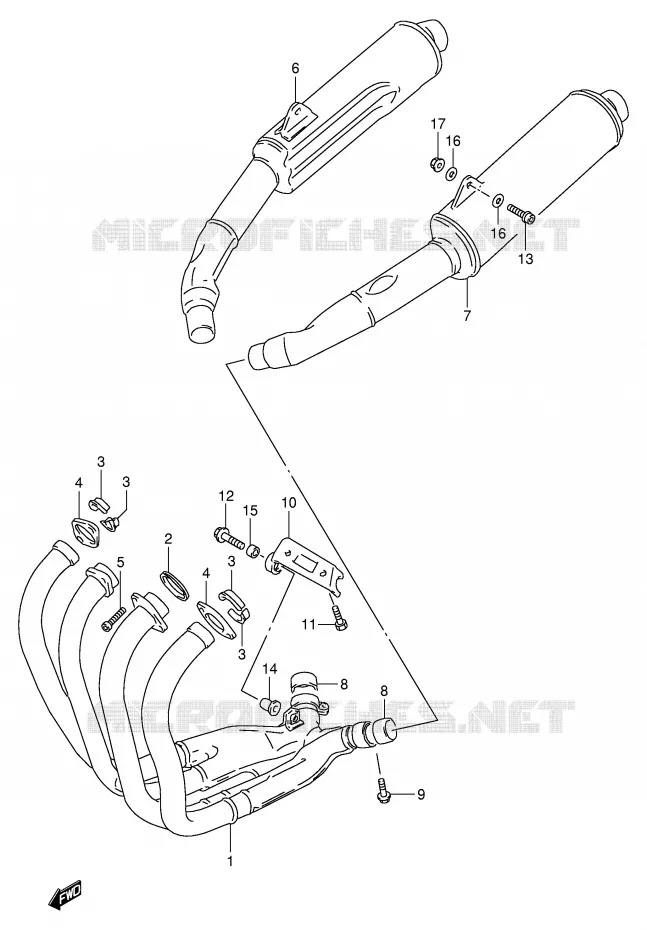

MUFFLER (MODEL P/R) Suzuki MOTO 1100 GSX-R 1997 GSX-R1100WV(E2)
1
1
2
3
3
3
3
4
4
5
5
6
6
6
6
6
7
7
7
7
7
7
8
8
9
10
11
12
13
14
15
16
16
16
16
17
17
1
EXHAUST ASSY

14100-46E00-000   1410046E00000

1410046E00000
Not available
1
EXHAUST ASSY

14100-46E10-000   1410046E10000

1410046E10000
Not available
2
EXHAUST PIPE GASKET
GASKET, EXHAUST PIPE

14181-46E00-000   1418146E00000

1418146E00000
Not available
3
PLATE<br />PLATE, EXHAUST PIPE
PLATE
PLATE, EXHAUST PIPE

14155-27A00-000   1415527A00000

1415527A00000

Unit Price Incl. Tax

4
CLAMP<br />CLAMP, EXHAUST PIPE
CLAMP
CLAMP, EXHAUST PIPE

14182-27A00-000   1418227A00000

1418227A00000
Not available
5
07130-08253-000
BOLT

07130-08253-000   0713008253000

0713008253000
Not available
5
07130-08255-000
BOLT (L:25)

07130-08255-000   0713008255000

0713008255000
Not available
6
BODY, MUFFLER RH

14310-46E01-000   1431046E01000

1431046E01000
Not available
6
14310-46E10-000
BODY, MUFFLER RH

14310-46E10-000   1431046E10000

1431046E10000
Not available
6
MUFFLER
BODY, MUFFLER RH

14310-46E12-H01   1431046E12H01

1431046E12H01
Not available
6
BODY, MUFFLER RH

14310-46E31-000   1431046E31000

1431046E31000
Not available
6
BODY, MUFFLER RH

14310-46E41-000   1431046E41000

1431046E41000
Not available
7
BODY, MUFFLER LH

14340-46E00-000   1434046E00000

1434046E00000
Not available
7
BODY, MUFFLER LH

14340-46E01-000   1434046E01000

1434046E01000
Not available
7
14340-46E10-000
BODY, MUFFLER LH

14340-46E10-000   1434046E10000

1434046E10000
Not available
7
LH MUFFLER BODY
BODY, MUFFLER LH

14340-46E12-H01   1434046E12H01

1434046E12H01
Not available
7
BODY, MUFFLER LH

14340-46E31-000   1434046E31000

1434046E31000
Not available
7
BODY, MUFFLER LH

14340-46E41-000   1434046E41000

1434046E41000
Not available
8
MUFFLER CONNECTOR<br />CONNECTOR, MUFFLER
MUFFLER CONNECTOR
CONNECTOR, MUFFLER

14771-46E00-000   1477146E00000

1477146E00000

Unit Price Incl. Tax

9
01517-08407-000
BOLT, LOWER

01517-08407-000   0151708407000

0151708407000
Not available
10
DAMPER
DAMPER, MUFFLER SUPPORT CENTER

14770-46E00-000   1477046E00000

1477046E00000
Not available
11
09100-08240-000
BOLT (8X20)

09100-08240-000   0910008240000

0910008240000
Not available
12
BOLT<br />BOLT (8X35)
BOLT
BOLT (8X35)

09118-08080-000   0911808080000

0911808080000

Unit Price Incl. Tax

13
BOLT

09116-10122-000   0911610122000

0911610122000
Not available
14
SPACER<br />SPACER (8.6X12X18.5)
SPACER
SPACER (8.6X12X18.5)

09180-08157-000   0918008157000

0918008157000

Unit Price Incl. Tax

15
CUSHION

09320-12062-000   0932012062000

0932012062000

Unit Price Incl. Tax

16
09160-10066-000
WASHER (10.5X24X2.3)

09160-10066-000   0916010066000

0916010066000
Not available
16
09160-10505-000
WASHER (10.5X24X2.3)

09160-10505-000   0916010505000

0916010505000
Not available
17
08316-10103-000
NUT

08316-10103-000   0831610103000

0831610103000
Not available
17
08316-16105-000
NUT

08316-16105-000   0831616105000

0831616105000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
