HEADLIGHT (GSF1200T / V / W / X / Y) REFER TO FIG.26A(E-8) FOR GSF1200ST/SV/SW/SX/SY/SAV/SAW/SAX/SAY

HEADLIGHT (GSF1200ST / SV / SW / SX / SY / SAV / SAW / SAX / SAY) FOR SUZUKI BANDIT 1200 1996

INDICATORS

Item numbers

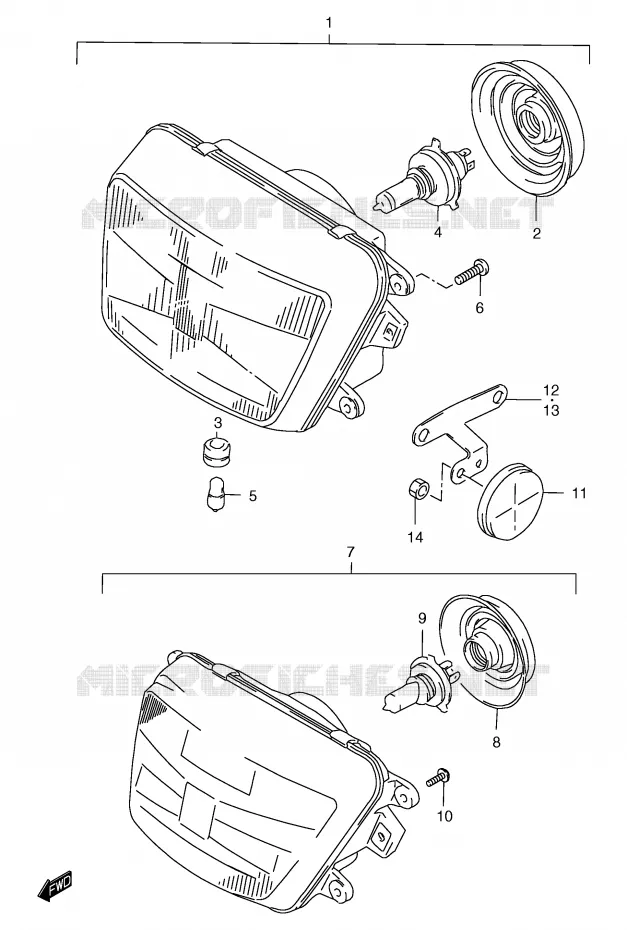

HEADLIGHT (GSF1200ST/SV/SW/SX/SY/SAV/SAW/SAX/SAY) Suzuki MOTO 1200 BANDIT 1996 GSF1200ST(E2)
1
1
2
3
4
5
6
7
8
9
10
10
11
12
13
14
1
HEADLAMP ASSY
HEADLAMP ASSY

35100-26E01-999   3510026E01999

3510026E01999
Not available
1
HEADLAMP GSF600S/S-X
HEADLAMP ASSY

35100-26E21-999   3510026E21999

3510026E21999
Not available
2
COVER<br />COVER, SOCKET
COVER
COVER, SOCKET

35173-26B20-000   3517326B20000

3517326B20000
Not available
3
SEAL<br />JOINT, RUBBER
SEAL
JOINT, RUBBER

36116-22630-000   3611622630000

3611622630000

Unit Price Incl. Tax

4
BULB (12V60/55W H4)
BULB (12V60/55W)

09471-12060-000   0947112060000

0947112060000

Unit Price Incl. Tax

5
BULB 12V 4W
BULB (12V/4W)

09471-12063-000   0947112063000

0947112063000

Unit Price Incl. Tax

6
02142-15163-000
SCREW

02142-15163-000   0214215163000

0214215163000
Not available
7
HEADLAMP ASSY

35100-19D11-000   3510019D11000

3510019D11000
Not available
8
COVER<br />COVER, SOCKET
COVER
COVER, SOCKET

35173-26B20-000   3517326B20000

3517326B20000
Not available
9
BULB (12V60/55W H4)
BULB (12V60/55W)

09471-12060-000   0947112060000

0947112060000

Unit Price Incl. Tax

10
02142-05163-000
SCREW

02142-05163-000   0214205163000

0214205163000
Not available
10
02142-15163-000
SCREW

02142-15163-000   0214215163000

0214215163000
Not available
11
REFLEX REFLECTOR ASSY FRONT<br />REFLEX REFLECTOR ASSY, FR SIDE
REFLEX REFLECTOR ASSY FRONT
REFLEX REFLECTOR ASSY, FR SIDE

35950-14A00-000   3595014A00000

3595014A00000

Unit Price Incl. Tax

12
BRACKET FRONT SID REFLECTOR R
BRACKET, FR SIDE RH

35956-40C01-000   3595640C01000

3595640C01000
Not available
13
BRACKET FRONT SID REFLECTOR L
BRACKET, FR SIDE LH

35957-40C01-000   3595740C01000

3595740C01000
Not available
14
08310-00053-000
NUT

08310-00053-000   0831000053000

0831000053000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the HEADLIGHT (GSF1200ST/SV/SW/SX/SY/SAV/SAW/SAX/SAY) of your Suzuki BANDIT 1200 S of BANDIT. Let us know if you have any questions.

Genuine parts for Suzuki 1200 BANDIT 1996
