Parts catalogue

Parts diagram

CRANKCASE

CRANKCASE COVER FOR SUZUKI BANDIT 1200 1997

OIL PAN

Item numbers

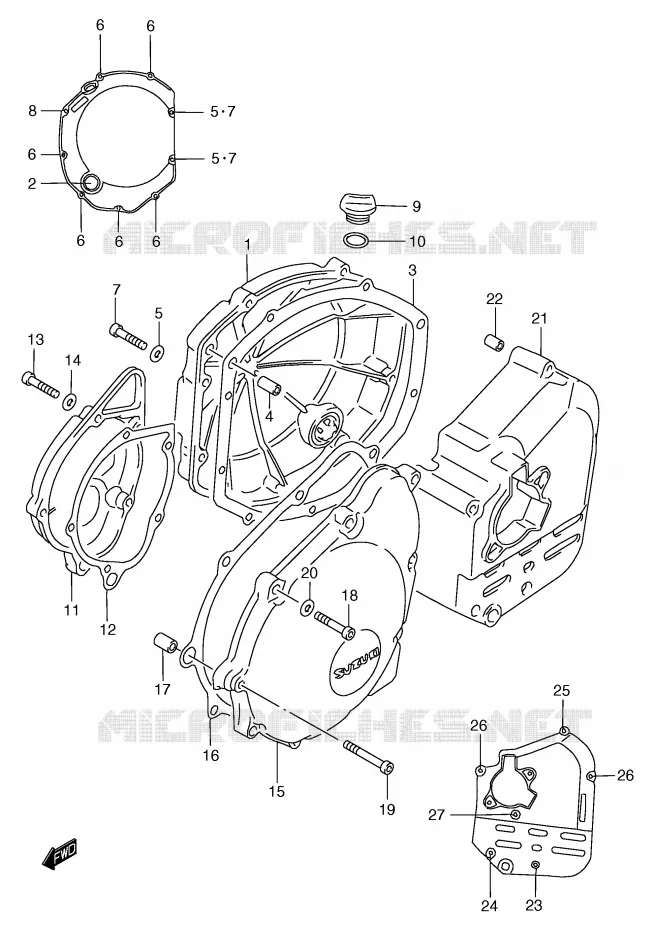

CRANKCASE COVER Suzuki MOTO 1200 BANDIT 1997 GSF1200SAV(E2)
1
2
3
4
5
5
5
5
5
5
6
6
6
6
6
6
7
7
7
8
9
10
11
11
12
13
14
14
15
16
17
18
19
20
20
21
21
22
23
24
25
26
26
27
1
CLUTCH COVER COMP.<br />COVER, CLUTCH
CLUTCH COVER COMP.
COVER, CLUTCH

11340-26E20-000   1134026E20000

1134026E20000
Not available
2
LENS<br />LENS, OIL LEVEL CHECK
LENS
LENS, OIL LEVEL CHECK

11971-33210-000   1197133210000

1197133210000

Unit Price Incl. Tax

3
CLUTCH COVER GASKET<br />GASKET
CLUTCH COVER GASKET
GASKET

11482-27A20-000   1148227A20000

1148227A20000

Unit Price Incl. Tax

4
PIN
PIN

04211-09189-000   0421109189000

0421109189000

Unit Price Incl. Tax

5
GASKET<br />GASKET (5.8X11X1.2)
GASKET
GASKET (5.8X11X1.2)

09168-06024-000   0916806024000

0916806024000

Unit Price Incl. Tax

5
GASKET<br />GASKET (5.8X13X1.2)
GASKET
GASKET (5.8X13X1.2)

09168-06023-000   0916806023000

0916806023000
Not available
6
07130-06253-000
BOLT

07130-06253-000   0713006253000

0713006253000
Not available
7
07130-06303-000
BOLT

07130-06303-000   0713006303000

0713006303000
Not available
8
07130-06353-000
BOLT

07130-06353-000   0713006353000

0713006353000
Not available
9
09259-20008-000
PLUG

09259-20008-000   0925920008000

0925920008000
Not available
10
O RING<br />O RING (D:3.1,ID:16.8)
O RING
O RING (D:3.1, ID:16.8)

09280-17003-000   0928017003000

0928017003000

Unit Price Incl. Tax

11
COVER, SIGNAL GENERATOR

11381-26E21-000   1138126E21000

1138126E21000

Unit Price Incl. Tax

11
11381-26E20-000
COVER, SIGNAL GENERATOR

11381-26E20-000   1138126E20000

1138126E20000
Not available
12
GASKET
GASKET

11491-27A30-000   1149127A30000

1149127A30000

Unit Price Incl. Tax

13
BOLT 6X23<br />BOLT
BOLT 6X23
BOLT

09106-06082-000   0910606082000

0910606082000

Unit Price Incl. Tax

14
GASKET<br />GASKET (5.8X11X1.2)
GASKET
GASKET (5.8X11X1.2)

09168-06024-000   0916806024000

0916806024000

Unit Price Incl. Tax

14
GASKET<br />GASKET (5.8X13X1.2)
GASKET
GASKET (5.8X13X1.2)

09168-06023-000   0916806023000

0916806023000
Not available
15
STARTER GEAR COVER<br />COVER, STARTER GEAR
STARTER GEAR COVER
COVER, STARTER GEAR

11351-26E20-000   1135126E20000

1135126E20000

Unit Price Incl. Tax

16
11483-48B20-000
GASKET

11483-48B20-000   1148348B20000

1148348B20000
Not available
17
PIN
PIN

09206-11017-000   0920611017000

0920611017000

Unit Price Incl. Tax

18
07130-06253-000
BOLT

07130-06253-000   0713006253000

0713006253000
Not available
19
07130-06403-000
BOLT

07130-06403-000   0713006403000

0713006403000
Not available
20
GASKET<br />GASKET (5.8X11X1.2)
GASKET
GASKET (5.8X11X1.2)

09168-06024-000   0916806024000

0916806024000

Unit Price Incl. Tax

20
GASKET<br />GASKET (5.8X13X1.2)
GASKET
GASKET (5.8X13X1.2)

09168-06023-000   0916806023000

0916806023000
Not available
21
11360-27E00-000
COVER, ENGINE SPROCKET

11360-27E00-000   1136027E00000

1136027E00000
Not available
21
11360-27E01-000
COVER, ENGINE SPROCKET

11360-27E01-000   1136027E01000

1136027E01000
Not available
22
PIN
PIN

04211-09129-000   0421109129000

0421109129000

Unit Price Incl. Tax

23
07130-06453-000
BOLT

07130-06453-000   0713006453000

0713006453000
Not available
24
07130-06353-000
BOLT

07130-06353-000   0713006353000

0713006353000
Not available
25
07130-06553-000
BOLT

07130-06553-000   0713006553000

0713006553000
Not available
26
07130-06703-000
BOLT

07130-06703-000   0713006703000

0713006703000
Not available
27
07130-06753-000
BOLT

07130-06753-000   0713006753000

0713006753000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the CRANKCASE COVER of your Suzuki BANDIT 1200 S ABS of BANDIT. Let us know if you have any questions.

Genuine parts for Suzuki 1200 BANDIT 1997
