Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FRAME (GSF1200SAV) REFER TO FIG.31B(F- 5) FOR GSF1200W/SW

FRAME (GSF1200W / SW) FOR SUZUKI BANDIT 1200 1998

FRAME (GSF1200SAW) REFER TO FIG.31D(F- 8) FOR GSF1200X/SX

Item numbers

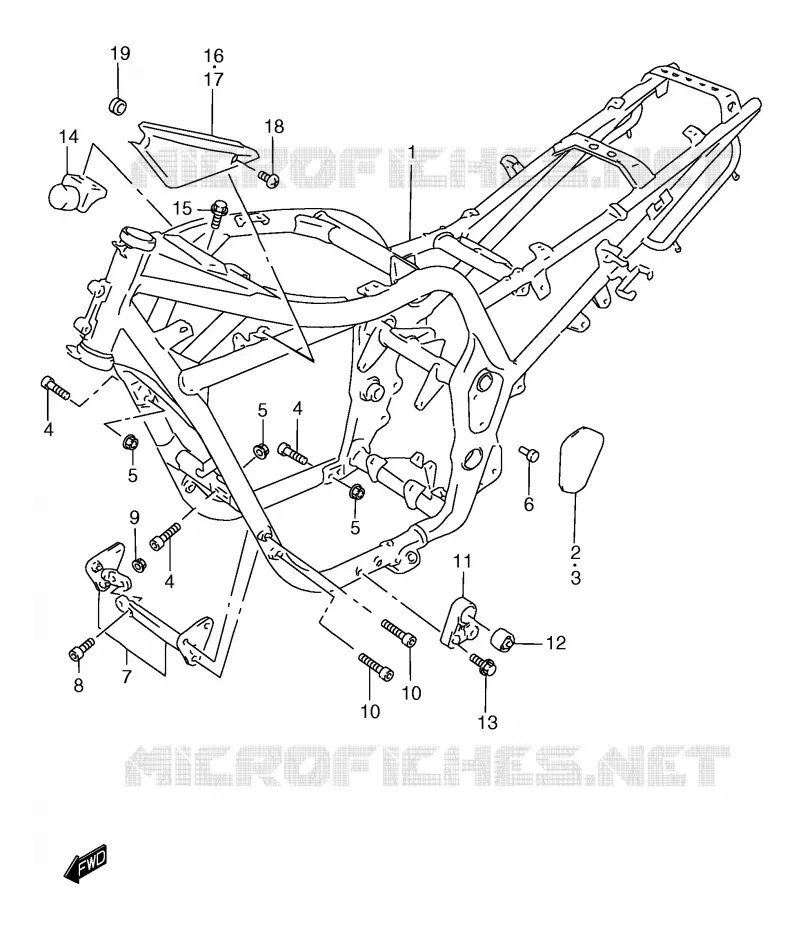

FRAME (GSF1200W/SW) Suzuki MOTO 1200 BANDIT 1998 GSF1200SAW(E2)
1
1
1
1
1
1
1
1
1
1
1
1
2
3
4
4
4
5
5
5
6
7
7
7
7
8
9
10
10
11
12
13
14
15
16
17
18
19
1
FRAME (GREEN)

41100-27E40-1UH   4110027E401UH

4110027E401UH
Not available
1
FRAME (MAROON)

41100-27E40-22U   4110027E4022U

4110027E4022U
Not available
1
FRAME (BLACK)

41100-27E40-33J   4110027E4033J

4110027E4033J
Not available
1
FRAME (SILVER)

41100-27E40-Y4H   4110027E40Y4H

4110027E40Y4H
Not available
1
41100-27E60-1UH
FRAME (GREEN)

41100-27E60-1UH   4110027E601UH

4110027E601UH
Not available
1
41100-27E60-22U
FRAME (MAROON)

41100-27E60-22U   4110027E6022U

4110027E6022U
Not available
1
41100-27E60-33J
FRAME (BLACK)

41100-27E60-33J   4110027E6033J

4110027E6033J
Not available
1
41100-27E60-Y4H
FRAME (SILVER)

41100-27E60-Y4H   4110027E60Y4H

4110027E60Y4H
Not available
1
FRAME (GREEN)

41100-27E70-1UH   4110027E701UH

4110027E701UH
Not available
1
41100-27E70-22U
FRAME (MAROON)

41100-27E70-22U   4110027E7022U

4110027E7022U
Not available
1
41100-27E70-33J
FRAME (BLACK)

41100-27E70-33J   4110027E7033J

4110027E7033J
Not available
1
FRAME (SILVER)

41100-27E70-Y4H   4110027E70Y4H

4110027E70Y4H
Not available
2
R.H. FRAME BODY COVER<br />COVER, FRAME BODY RH
R.H. FRAME BODY COVER
COVER, FRAME BODY RH

41639-26E00-000   4163926E00000

4163926E00000

Unit Price Incl. Tax

3
L.H. FRAME BODY COVER<br />COVER, FRAME BODY LH
L.H. FRAME BODY COVER
COVER, FRAME BODY LH

41649-26E00-000   4164926E00000

4164926E00000

Unit Price Incl. Tax

4
BOLT<br />BOLT (10X33)
BOLT
BOLT (10X33)

09106-10019-000   0910610019000

0910610019000

Unit Price Incl. Tax

5
08319-31103-000
NUT

08319-31103-000   0831931103000

0831931103000
Not available
6
CLIP
CLIP

09409-07329-000   0940907329000

0940907329000

Unit Price Incl. Tax

7
PLATE ASSY, MOUNT
PLATE, ENGINE MOUNT (GREEN)

41900-27E00-1UH   4190027E001UH

4190027E001UH

Unit Price Incl. Tax

7
ENG. MOUNTING PLATE
PLATE, ENGINE MOUNT (MAROON)

41900-27E00-22U   4190027E0022U

4190027E0022U
Not available
7
41900-27E00-33J
PLATE, ENGINE MOUNT (BLACK)

41900-27E00-33J   4190027E0033J

4190027E0033J
Not available
7
41900-27E00-Y4H
PLATE, ENGINE MOUNT (SILVER)

41900-27E00-Y4H   4190027E00Y4H

4190027E00Y4H
Not available
8
07120-10303-000
BOLT

07120-10303-000   0712010303000

0712010303000
Not available
9
08319-31103-000
NUT

08319-31103-000   0831931103000

0831931103000
Not available
10
07130-08503-000
BOLT

07130-08503-000   0713008503000

0713008503000
Not available
11
ENG. MOUNTING BRKT.<br />BRACKET, ENGINE MOUNT NO.2
ENG. MOUNTING BRKT.
BRACKET, ENGINE MOUNT NO.2

41931-27E50-000   4193127E50000

4193127E50000
Not available
12
ENG. MOUNTING BUSH<br />BUSH
ENG. MOUNTING BUSH
BUSH

41932-27E50-000   4193227E50000

4193227E50000

Unit Price Incl. Tax

13
07120-08253-000
BOLT

07120-08253-000   0712008253000

0712008253000
Not available
14
DAMPER, FRAME

42550-27E50-000   4255027E50000

4255027E50000
Not available
15
01550-06123-000
BOLT

01550-06123-000   0155006123000

0155006123000
Not available
16
R.H. FRAME HEAD COVER (BLACK)
COVER, FRAME HEAD RH (BLACK)

47511-26E00-291   4751126E00291

4751126E00291
Not available
17
L.H. FRAME HEAD COVER (BLACK)<br />COVER, FRAME HEAD LH (BLACK)
L.H. FRAME HEAD COVER (BLACK)
COVER, FRAME HEAD LH (BLACK)

47521-26E00-291   4752126E00291

4752126E00291

Unit Price Incl. Tax

18
SCREW
SCREW

09139-05021-000   0913905021000

0913905021000

Unit Price Incl. Tax

19
CUSHION
CUSHION

09320-08013-000   0932008013000

0932008013000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
