Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CYLINDER HEAD COVER

CYLINDER HEAD FOR SUZUKI BANDIT 1200 2000

CYLINDER

Item numbers
CYLINDER HEAD Suzuki MOTO 1200 BANDIT 2000 GSF1200SAY(E2)
1
1
2
3
4
4
5
5
6
7
7
7
7
7
7
8
8
9
10
11
11
12
12
13
14
15
15
16
16
17
18
19
19
20
20
21
22
23
24
25
25
25
25
26
26
26
26
27
28
28
28
28
28
28
29
29
1

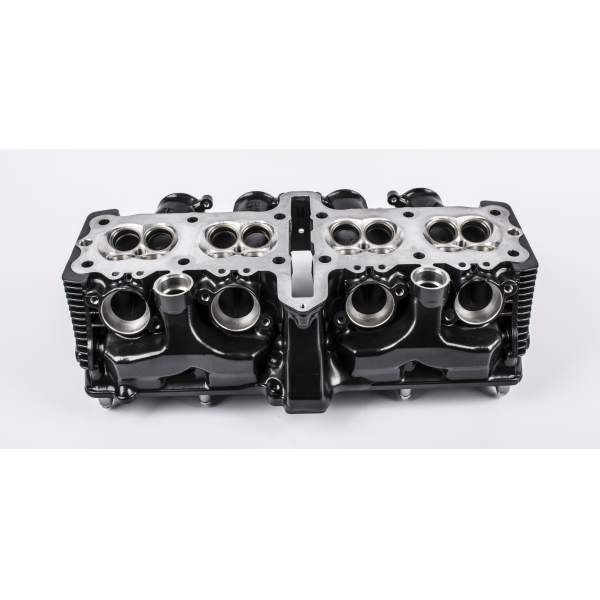

HEAD, CYLINDER<br />HEAD ASSY, CYLINDER
HEAD, CYLINDER
HEAD ASSY, CYLINDER

11100-27E50-000   1110027E50000

1110027E50000
Not available
1
HEAD ASSY, CYLINDER

11100-27E60-000   1110027E60000

1110027E60000
Not available
2
GUIDE, VALVE
GUIDE, VALVE

11116-06B70-000   1111606B70000

1111606B70000

Unit Price Incl. Tax

3
CIRCLIP<br />SNAP RING
CIRCLIP
SNAP RING

09381-10004-000   0938110004000

0938110004000

Unit Price Incl. Tax

4
BOLT<br />BOLT (6X39)
BOLT
BOLT (6X39)

09103-06026-000   0910306026000

0910306026000

Unit Price Incl. Tax

5
PIN (6.2X8X11)<br />PIN (8X11)
PIN (6.2X8X11)
PIN (8X11)

09206-08001-000   0920608001000

0920608001000

Unit Price Incl. Tax

6
GASKET, CYLINDER HEAD GSF1200

11141-27E00-000  

11141-32F00-000
 1114127E00000

Unit Price Incl. Tax

7
O-RING GSF1200 GSX1200

11143-48B01-000  

11143-32F00-000
 1114348B01000

Unit Price Incl. Tax

8
PIN
PIN

09209-11007-000   0920911007000

0920911007000

Unit Price Incl. Tax

9
BOLT

01550-06303-000  

01550-0630A-000
 0155006303000

Unit Price Incl. Tax

10
NUT
NUT

09159-10069-000   0915910069000

0915910069000

Unit Price Incl. Tax

11
NUT

08316-10103-000  

08316-1010B-000
 0831610103000

Unit Price Incl. Tax

12
GASKET
GASKET

09168-10031-000   0916810031000

0916810031000

Unit Price Incl. Tax

13
WASHER

09160-10060-000  

0916010060000
Not available
14
PLATE, HEAD REINFORCEMENT<br />PLATE, REINFORCEMENT
PLATE, HEAD REINFORCEMENT
PLATE, REINFORCEMENT

11138-40C10-000   1113840C10000

1113840C10000

Unit Price Incl. Tax

15
PIPE, CYLINDER HEAD OIL<br />PIPE, OIL NO.1,2
PIPE, CYLINDER HEAD OIL
PIPE, OIL NO.1, 2

11131-27A00-000   1113127A00000

1113127A00000

Unit Price Incl. Tax

16
PIPE, OIL NO.3
PIPE, OIL NO.3

11133-27A00-000   1113327A00000

1113327A00000

Unit Price Incl. Tax

17
PLATE, OIL PIPE NO.1<br />PLATE, OIL PIPE RH
PLATE, OIL PIPE NO.1
PLATE, OIL PIPE RH

11135-27A02-000   1113527A02000

1113527A02000
Not available
18
PLATE, OIL PIPE NO.1<br />PLATE, OIL PIPE LH
PLATE, OIL PIPE NO.1
PLATE, OIL PIPE LH

11136-27A02-000   1113627A02000

1113627A02000

Unit Price Incl. Tax

19
SCREW AIR CLEANER

01550-06123-000  

01550-0612B-000
 0155006123000

Unit Price Incl. Tax

20
JR10B
SPARK PLUG (NGK, JR10B)

09482-00391-000   0948200391000

0948200391000

Unit Price Incl. Tax

20
JR9B<br />SPARK PLUG (NGK,JR9B)
JR9B
SPARK PLUG (NGK, JR9B)

09482-00389-000   0948200389000

0948200389000

Unit Price Incl. Tax

21
INTAKE PIPE
INTAKE PIPE

13101-40C00-000  

13101-40C01-000
 1310140C00000

Unit Price Incl. Tax

22
INTAKE PIPE
INTAKE PIPE

13102-40C00-000  

13102-40C01-000
 1310240C00000

Unit Price Incl. Tax

23
INTAKE PIPE
INTAKE PIPE

13103-40C00-000  

13103-40C01-000
 1310340C00000

Unit Price Incl. Tax

24
INTAKE PIPE<br />PIPE, INTAKE NO.4
INTAKE PIPE
PIPE, INTAKE NO.4

13104-40C00-000   1310440C00000

1310440C00000
Not available
25
O RING
O RING

09280-40010-000  

09280-40020-000
 0928040010000

Unit Price Incl. Tax

26
CLAMP
CLAMP

09402-52208-000   0940252208000

0940252208000

Unit Price Incl. Tax

27
BOLT

07120-06163-000  

07120-06167-000
 0712006163000

Unit Price Incl. Tax

28
DRAIN PLUG<br />PLUG, CYLINDER HEAD IN,LH
DRAIN PLUG
PLUG, CYLINDER HEAD IN, LH

09247-14032-000   0924714032000

0924714032000

Unit Price Incl. Tax

28
PLUG
PLUG

09248-14010-000   0924814010000

0924814010000

Unit Price Incl. Tax

29
GASKET
GASKET

09168-14002-000   0916814002000

0916814002000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the CYLINDER HEAD of your Suzuki BANDIT 1200 of BANDIT. Let us know if you have any questions.

Genuine parts for Suzuki 1200 BANDIT 2000
