CYLINDER FOR SUZUKI TS-ER 125 1998

CRANKCASE

(1) 11111-48740-000

CYLINDER HEAD
HEAD, CYLINDER

(2) 11141-48011-H17

CYLINDER HEAD GASKET
GASKET, CYLINDER HEAD

(3) 09108-08102-000

STUD
STUD BOLT

(3) 01421-0835A-000

STUD BOLT

(4) 08316-1008B-000

NUT SIDE STAND
NUT

(5) 11251-30530-000

REORDER CROOKS
PAD, CYLINDER HEAD

(6) 09482-00091-000

SPARK PLUG B8ES
SPARK PLUG (NGK,B8ES)

(6) 09482-00092-000

SPARK PLUG (ND, W24ES)

(7) 11210-48752-000

CYLINDER

(7) 11210-48751-000

CYLINDER

(8) 11241-41321-000

CYLINDER GASKET
GASKET, CYLINDER

(9) 01421-0620B-000

BOLT STUD
STUD BOLT

(10) 01421-0825A-000

STUD BOLT

(11) 08319-31067-000

NUT

(12) 08316-1008B-000

NUT SIDE STAND
NUT

(13) 11251-36500-000

RUBBER PAD
PAD, CYLINDER (N9->)

(14) 13150-48700-000

REORDER ROBINSONS MOTORS
VALVE ASSY, REED

(15) 13152-48010-000

STOPPER

(16) 13153-48700-000

VALVE,REED TS125ERCN
VALVE, REED

(17) 02112-0308A-000

SCREW

(18) 13156-41100-H17

REED VALVE GASKET ASB
GASKET, REED VALVE

(19) 02112-0616A-000

SCREW

(20) 13110-48701-000

INTAKE PIPE
PIPE, INTAKE

(21) 01570-0620A-000

BOLT

(22) 09402-40303-000

CLAMP UX150
CLAMP

(23) 11400-48876-000

GASKET SET

	Part number	Description	Qty
# 1	11111-48740-000 1111148740000 1111148740000	CYLINDER HEAD HEAD, CYLINDER	£141,49
# 2	11141-48011-H17 1114148011H17 1114148011H17	CYLINDER HEAD GASKET GASKET, CYLINDER HEAD	£18,55
# 3	01421-08353-000 01421-0835A-000 0142108353000	STUD BOLT	£2,64
# 3	09108-08102-000 0910808102000 0910808102000	STUD STUD BOLT	£5,50
# 4	08316-10083-000 08316-1008B-000 0831610083000	NUT SIDE STAND NUT	£3,43
# 5	11251-30530-000 1125130530000 1125130530000	REORDER CROOKS PAD, CYLINDER HEAD	£10,38

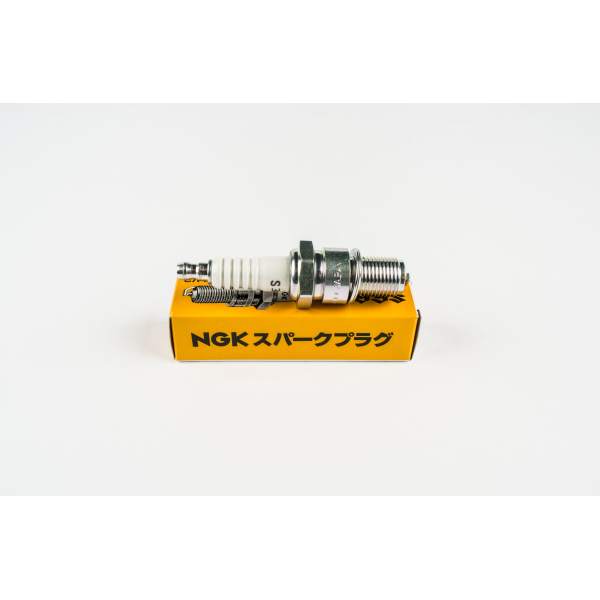

# 6	09482-00091-000 0948200091000 0948200091000	SPARK PLUG B8ES SPARK PLUG (NGK, B8ES)	£5,38
# 6	09482-00092-000 0948200092000 0948200092000	SPARK PLUG (ND, W24ES)	Not available	£0,00
# 7	11210-48752-000 1121048752000 1121048752000	CYLINDER	£667,78
# 7	11210-48751-000 1121048751000 1121048751000	CYLINDER	Not available	£0,00
# 8	11241-41320-000 11241-41321-000 1124141320000	CYLINDER GASKET GASKET, CYLINDER	£10,16
# 9	01421-06203-000 01421-0620B-000 0142106203000	BOLT STUD STUD BOLT	£2,59
# 10	01421-08253-000 01421-0825A-000 0142108253000	STUD BOLT	£2,41
# 11	08316-10063-000 08319-31067-000 0831610063000	NUT	£2,69
# 12	08316-10083-000 08316-1008B-000 0831610083000	NUT SIDE STAND NUT	£3,43
# 13	11251-36500-000 1125136500000 1125136500000	RUBBER PAD PAD, CYLINDER (N9->)	£12,40
# 14	13150-48700-000 1315048700000 1315048700000	REORDER ROBINSONS MOTORS VALVE ASSY, REED	£181,62
# 15	13152-48010-000 1315248010000 1315248010000	STOPPER	£13,27
# 16	13153-48700-000 1315348700000 1315348700000	VALVE, REED TS125ERCN VALVE, REED	£17,29
# 17	02112-03083-000 02112-0308A-000 0211203083000	SCREW	£2,28
# 18	13156-41100-H17 1315641100H17 1315641100H17	REED VALVE GASKET ASB GASKET, REED VALVE	£7,75
# 19	02112-06163-000 02112-0616A-000 0211206163000	SCREW	£2,03
# 20	13110-48701-000 1311048701000 1311048701000	INTAKE PIPE PIPE, INTAKE	£64,38
# 21	01570-06203-000 01570-0620A-000 0157006203000	BOLT	£2,83
# 22	09402-40306-000 09402-40303-000 0940240306000	CLAMP UX150 CLAMP	£11,39
# 23	11400-48876-000 1140048876000 1140048876000	GASKET SET	Not available	£0,00

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
