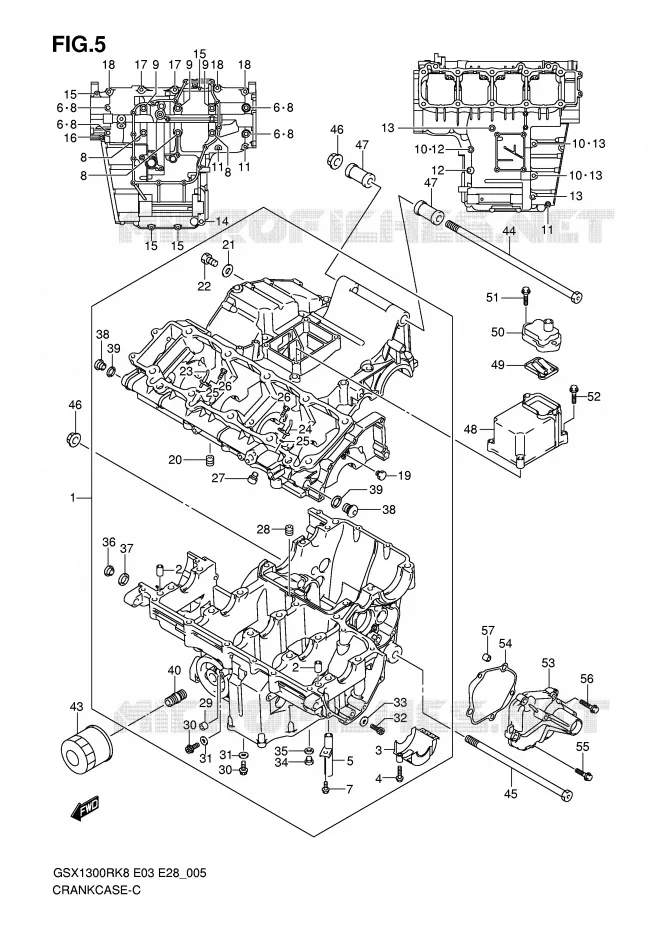

CRANKCASE FOR SUZUKI HAYABUSA 1300 2009

CRANKCASE COVER

Item numbers

CRANKCASE ASSY
CRANKCASE SET

11301-24861-000 1130124861000

£1 427,74

Unit Price Incl. Tax

CRANKCASE PIN
PIN

11319-33E50-000 1131933E50000

£9,79

Unit Price Incl. Tax

SEPARATOR, OIL

11323-24F10-000 1132324F10000

£85,07

Unit Price Incl. Tax

BOLT

01547-0625A-000 015470625A000

£3,52

Unit Price Incl. Tax

UNION, BREATHER OIL

11328-24F00-000 1132824F00000

£31,82

Unit Price Incl. Tax

GASKET
GASKET, CRANKCASE BOLT (10.2X20X2.3)

09168-10031-000 0916810031000

£1,99

Unit Price Incl. Tax

BOLT
BOLT, BREATHER UNION

01547-0612A-000 015470612A000

£3,74

Unit Price Incl. Tax

BOLT
BOLT (9X95)

09103-09008-000 0910309008000

£15,20

Unit Price Incl. Tax

BOLT
BOLT (9X115)

09103-09010-000 0910309010000

£16,55

Unit Price Incl. Tax

GASKET

09168-08016-000 0916808016000

£2,09

Unit Price Incl. Tax

BOLT

01547-0650A-000 015470650A000

£4,62

Unit Price Incl. Tax

BOLT

01550-0865A-000 015500865A000

£5,53

Unit Price Incl. Tax

BOLT

01550-0880A-000 015500880A000

£5,44

Unit Price Incl. Tax

BOLT

01550-1060A-000 015501060A000

£6,13

Unit Price Incl. Tax

BOLT

01547-0640A-000 015470640A000

£4,07

Unit Price Incl. Tax

BOLT

01547-0660A-000 015470660A000

£5,57

Unit Price Incl. Tax

BOLT
BOLT (8X50)

09103-08155-000 0910308155000

£7,06

Unit Price Incl. Tax

BOLT 8X50
BOLT (8X60)

09103-08355-000 0910308355000

£7,28

Unit Price Incl. Tax

MAGNETO COOLING JET
JET, MAGNETO COOLING

11393-33E01-000 1139333E01000

£29,51

Unit Price Incl. Tax

JET, T/M COOLING

09493-20012-000 0949320012000

£24,47

Unit Price Incl. Tax

GASKET
GASKET, T/M COOLING

09168-06023-000 0916806023000

Not available

BOLT OIL GALLERY
PLUG, T/M COOLING

07120-0612B-000 071200612B000

£4,56

Unit Price Incl. Tax

RH PISTON COOLING JET
JET, PISTON COOLING RH

11390-34E00-000 1139034E00000

£29,84

Unit Price Incl. Tax

LH PISTON COOLING JET
JET, PISTON COOLING LH

11390-34E10-000 1139034E10000

£29,84

Unit Price Incl. Tax

O RING

09280-04004-000 0928004004000

£2,62

Unit Price Incl. Tax

BOLT

09106-06075-000 0910606075000

£5,08

Unit Price Incl. Tax

BOLT
PLUG, PISTON JET OIL GALLERY

09106-06076-000 0910606076000

£5,60

Unit Price Incl. Tax

JET, T/M OIL 180

09493-36006-000 0949336006000

£25,66

Unit Price Incl. Tax

JET OIL PAN GALLERY
JET, OIL GALLERY

11532-46E00-000 1153246E00000

£19,79

Unit Price Incl. Tax

BOLT OIL GALLERY
PLUG, OIL GALLERY

07120-0612B-000 071200612B000

£4,56

Unit Price Incl. Tax

GASKET

09168-06023-000 0916806023000

Not available

PLUG, OIL GALLERY

07130-0816B-000 071300816B000

£5,20

Unit Price Incl. Tax

GASKET
GASKET (8.2X14X1)

09168-08016-000 0916808016000

£2,09

Unit Price Incl. Tax

PLUG OIL GALLERY UPPER LH
PLUG, OIL GALLERY

09248-10010-000 0924810010000

£3,01

Unit Price Incl. Tax

GASKET
GASKET (9.9X14X0.3)

09168-10002-000 0916810002000

£3,52

Unit Price Incl. Tax

PLUG OIL GALL NO.1/OIL PUMP
PLUG, OIL GALLERY (16X8)

09248-16012-000 0924816012000

£8,36

Unit Price Incl. Tax

GASKET
GASKET (16X22X2)

09168-16002-000 0916816002000

£1,86

Unit Price Incl. Tax

OIL GALLERY PLUG
PLUG (14X12)

09248-14005-000 0924814005000

Not available

GASKET
GASKET (13.8X18.8X0.4)

09168-14002-000 0916814002000

£3,46

Unit Price Incl. Tax

OIL STAND UNION
UNION, OIL FILTER STAND

16591-06B01-000 1659106B01000

£13,96

Unit Price Incl. Tax

BEARING CRANK THRUST L
BEARING, CRANK THRUST (GREEN)

12228-24F00-0D0 1222824F000D0

£16,02

Unit Price Incl. Tax

BEARING CRANK THRUST L
BEARING, CRANK THRUST (RED)

12228-24F00-0A0 1222824F000A0

£22,02

Unit Price Incl. Tax

BEARING CRANK THRUST L
BEARING, CRANK THRUST (BLACK)

12228-24F00-0B0 1222824F000B0

£22,02

Unit Price Incl. Tax

BEARING CRANK THRUST L
BEARING, CRANK THRUST (BLUE)

12228-24F00-0C0 1222824F000C0

£15,77

Unit Price Incl. Tax

BEARING CRANK THRUST L
BEARING, CRANK THRUST (GREEN)

12228-24F00-0D0 1222824F000D0

£16,02

Unit Price Incl. Tax

BEARING CRANK THRUST L
BEARING, CRANK THRUST (YELLOW)

12228-24F00-0E0 1222824F000E0

£22,02

Unit Price Incl. Tax

BEARING CRANK THRUST L
BEARING, CRANK THRUST (WHITE)

12228-24F00-0F0 1222824F000F0

£22,60

Unit Price Incl. Tax

16510-03G00-X07
FILTER ASSY, ENGINE OIL

16510-03G00-X07 1651003G00X07

Not available

BOLT ENG MTG UPPER L320
BOLT (12X320)

09103-12066-000 0910312066000

£66,92

Unit Price Incl. Tax

BOLT ENG MTG UPPER L240
BOLT (12X240)

09103-12067-000 0910312067000

£31,50

Unit Price Incl. Tax

NUT

09159-12054-000 0915912054000

£9,50

Unit Price Incl. Tax

SPACER ENG MTG L14
SPACER, ENGINE MOUNT

11611-24F00-000 1161124F00000

£39,66

Unit Price Incl. Tax

COVER, BREATHER

11331-15H00-000 1133115H00000

£165,83

Unit Price Incl. Tax

13150-01H00-000
VALVE ASSY, BREATHER REED

13150-01H00-000 1315001H00000

Not available

COVER BREATHER REED VALVE
COVER, REED VALVE

11372-21H00-000 1137221H00000

£34,52

Unit Price Incl. Tax

BOLT

01547-0620A-000 015470620A000

£3,29

Unit Price Incl. Tax

BOLT

01547-0630A-000 015470630A000

£3,70

Unit Price Incl. Tax

COVER, GEAR SHIFT

11383-15H00-000 1138315H00000

£152,84

Unit Price Incl. Tax

GASKET GEAR SHIFT COVER (NA)
GASKET

11485-24F00-000 1148524F00000

£7,97

Unit Price Incl. Tax

BOLT

01547-0625A-000 015470625A000

£3,52

Unit Price Incl. Tax

BOLT

01547-0635A-000 015470635A000

£3,94

Unit Price Incl. Tax

04211-09149-000 0421109149000

£2,51

Unit Price Incl. Tax
