HEADLIGHT (GSX1400K4 / K5 / UK4 / UK5 E2,E19) REFER TO FIG.31 (E-12) FOR GSX1400K2/K3 E24

HEADLIGHT (GSX1400K4 / K5 E24) FOR SUZUKI GSX 1400 2005

INDICATORS (E2,E19) REFER TO FIG.33 (F- 3) FOR E24,%F.NO.100196

Item numbers

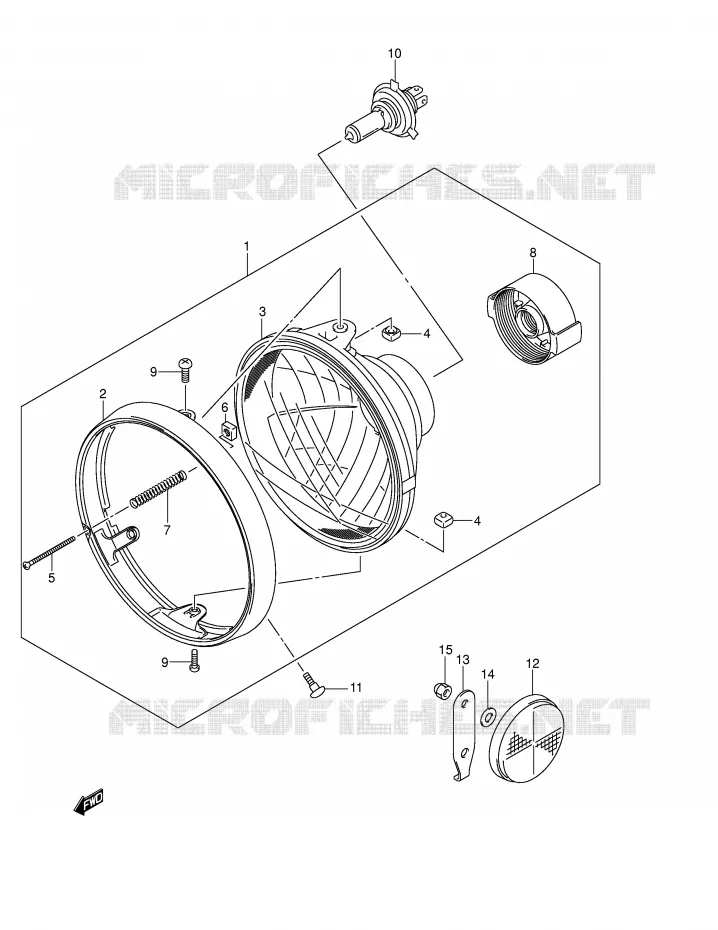

HEADLIGHT (GSX1400K4/K5 E24) Suzuki MOTO 1400 GSX 2005 GSX1400K5(E2)
1
2
3
4
4
5
6
7
8
9
9
10
11
12
13
14
15
1
35100-19F70-999
HEAD LAMP ASSY

35100-19F70-999   3510019F70999

3510019F70999
Not available
2
RIM
RIM

35111-19F00-000   3511119F00000

3511119F00000

Unit Price Incl. Tax

3
LAMP UNIT

35121-19F00-000   3512119F00000

3512119F00000

Unit Price Incl. Tax

4
NUT- HEAD LAMP UNIT<br />NUT
NUT- HEAD LAMP UNIT
NUT

35135-45900-000   3513545900000

3513545900000

Unit Price Incl. Tax

5
SCREW, ADJUSTING
SCREW, ADJUSTING

35151-19F00-000   3515119F00000

3515119F00000

Unit Price Incl. Tax

6
35152-45600-000
NUT

35152-45600-000   3515245600000

3515245600000
Not available
7
SPRING

35154-49200-000   3515449200000

3515449200000

Unit Price Incl. Tax

8
COVER, SOCKET
COVER, SOCKET

35174-19F00-000   3517419F00000

3517419F00000

Unit Price Incl. Tax

9
SCREW<br />SCREW (5X16)
SCREW
SCREW (5X16)

35181-19F00-000   3518119F00000

3518119F00000

Unit Price Incl. Tax

10
BULB (12V, 60/55W, H4)

09471-12060-000   0947112060000

0947112060000

Unit Price Incl. Tax

11
SCREW
SCREW

09139-05038-000   0913905038000

0913905038000

Unit Price Incl. Tax

12
REFLEX REFLECTOR ASSY FRONT<br />REFLEX REFLECTOR ASSY, FR SIDE
REFLEX REFLECTOR ASSY FRONT
REFLEX REFLECTOR ASSY, FR SIDE

35950-14A00-000   3595014A00000

3595014A00000

Unit Price Incl. Tax

13
SOPORTE
BRACKET, FR SIDE

35956-42F00-000   3595642F00000

3595642F00000
Not available
14
WASHER
WASHER (6.5X13X1.0)

09161-06008-000   0916106008000

0916106008000

Unit Price Incl. Tax

15
08313-10053-000
NUT

08313-10053-000   0831310053000

0831310053000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the HEADLIGHT (GSX1400K4/K5 E24) of your Suzuki INTRUDER 1400 of GSX. Let us know if you have any questions.
