Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

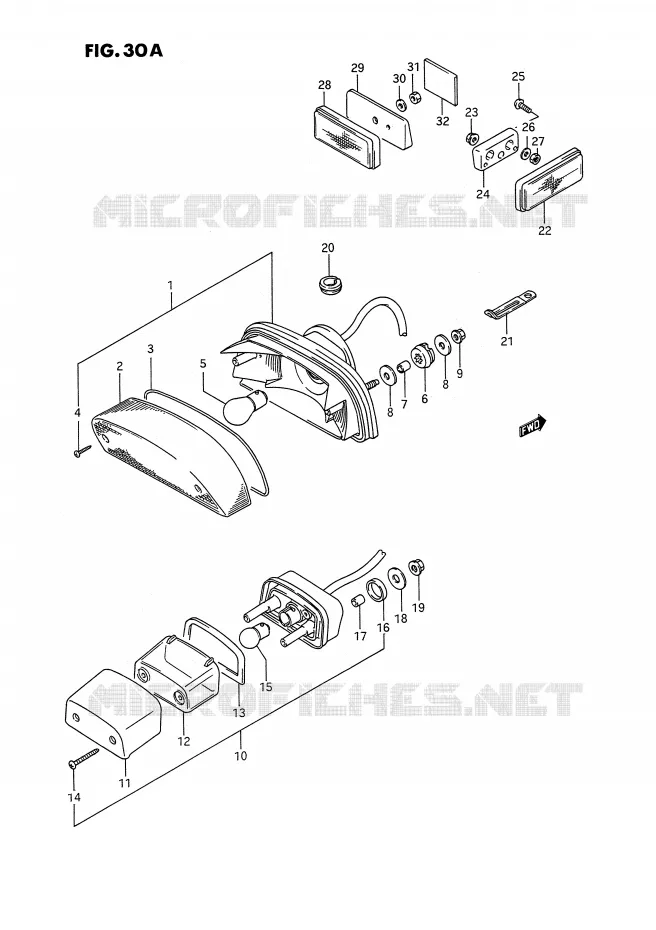

TAIL LIGHT (MODEL H / J / K / L / M / N / P / R) REFER TO FIG.30A(F-6) FOR E1

TAIL LIGHT (E1) FOR SUZUKI INTRUDER 1400 1994

TAIL LIGHT (MODEL S)

TAIL LIGHT (E1) Suzuki MOTO 1400 INTRUDER 1994 VS1400GLPR(E2)
1
REAR LAMP ASSY
LAMP ASSY, REAR COMBINATION

35710-38B30-000   3571038B30000

3571038B30000

Unit Price Incl. Tax

2
LENS

35712-38B30-000   3571238B30000

3571238B30000

Unit Price Incl. Tax

3
GASKET

35713-38B30-000   3571338B30000

3571338B30000

Unit Price Incl. Tax

4
35723-38B30-000
SCREW

35723-38B30-000   3572338B30000

3572338B30000
Not available
5
BULB (12V, 27/8W)

09471-12129-000   0947112129000

0947112129000

Unit Price Incl. Tax

6
CUSHION

09320-09018-000   0932009018000

0932009018000

Unit Price Incl. Tax

7
09180-06090-000
SPACER, FR (6.4X9X10.5)

09180-06090-000   0918006090000

0918006090000
Not available
8
WASHER
WASHER (6.5X20X1.2)

09160-06060-000   0916006060000

0916006060000

Unit Price Incl. Tax

9
08316-20063-000
NUT

08316-20063-000   0831620063000

0831620063000
Not available
10
LICENCE LAMP ASSY.
LAMP ASSY, LICENSE

35910-38B30-000   3591038B30000

3591038B30000
Not available
11
COVER LIC. VS1400K5 NOT E22
COVER

35917-38B30-000   3591738B30000

3591738B30000
Not available
12
LENS

35912-38B30-000   3591238B30000

3591238B30000
Not available
13
GASKET, LICENSE LAMP
GASKET

35913-38B30-000   3591338B30000

3591338B30000
Not available
14
SCREW
SCREW

03211-04207-000   0321104207000

0321104207000

Unit Price Incl. Tax

15
BULB (12V, 7.5W)

09471-12130-000   0947112130000

0947112130000

Unit Price Incl. Tax

16
CUSHION

35762-38B30-000   3576238B30000

3576238B30000
Not available
17
SPACER

35766-38B30-000   3576638B30000

3576638B30000
Not available
18
WASHER
WASHER (6.5X20X1.2)

09160-06060-000   0916006060000

0916006060000

Unit Price Incl. Tax

19
08316-20063-000
NUT

08316-20063-000   0831620063000

0831620063000
Not available
20
GROMMET
GROMMET, LEAD WIRE

09308-12009-000   0930812009000

0930812009000

Unit Price Incl. Tax

21
09404-06206-000
CLAMP (L:60) GW250

09404-06206-000   0940406206000

0940406206000
Not available
22
REFLEX REFLECTOR
REFLEX REFLECTOR, REAR SIDE

35970-38B00-000   3597038B00000

3597038B00000

Unit Price Incl. Tax

23
08316-10053-000
NUT

08316-10053-000   0831610053000

0831610053000
Not available
24
SPACER

35977-38B11-000   3597738B11000

3597738B11000
Not available
25
02142-05123-000
SCREW

02142-05123-000   0214205123000

0214205123000
Not available
26
08322-01053-000
WASHER

08322-01053-000   0832201053000

0832201053000
Not available
27
08310-00053-000
NUT

08310-00053-000   0831000053000

0831000053000
Not available
28
REFLEX REFLECTOR
REFLEX REFLECTOR, REAR

35970-38B00-000   3597038B00000

3597038B00000

Unit Price Incl. Tax

29
35977-38B00-000
SPACER

35977-38B00-000   3597738B00000

3597738B00000
Not available
30
08322-01053-000
WASHER

08322-01053-000   0832201053000

0832201053000
Not available
31
08310-00053-000
NUT

08310-00053-000   0831000053000

0831000053000
Not available
32
36920-06401-000
COVER

36920-06401-000   3692006401000

3692006401000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
