TAIL LIGHT ASSY FOR SUZUKI INTRUDER 150 2019

WIRING HARNESS

(1) 35710-27K00-000

LAMP ASSY,REAR COMB

(2) 35328-27K00-000

.CLIP

(3) 35650-27K00-000

.CAP

(4) 02112-0416A-000

.SCREW

(5) 03541-0516A-000

SCREW

(6) 35910-16GB0-000

LAMP ASSY,LICENSE

(7) 35912-30H01-000

.LENS

(8) 35913-30H00-000

.GASKET

(9) 35917-30H00-000

.COVER

(10) 35926-30H00-000

RETAINER
.WASHER

(11) 09471-12226-000

.BULB (12V10W,AMBER)

(12) 03211-04207-000

.SCREW

(12) 03211-04207-000

.SCREW
SCREW

(13) 09160-05501-000

WASHER
WASHER (5.5X20X1.2)

(14) 03541-0520B-000

SCREW

(14) 03541-0520B-000

SCREW
SCREW

(15) 09407-14407-000

BAND
CLAMP (L:145)

(16) 09407-15L01-000

CLAMP
CLAMP (L:170)

(17) 35970-28G00-000

REFLEX REFLECTOR
REFLECTOR ASSY,REAR

(18) 08316-1005A-000

NUT

	Part number	Description	Qty
# 1	35710-27K00-000 3571027K00000 3571027K00000	LAMP ASSY, REAR COMB	Not available	£0,00
# 2	35328-27K00-000 3532827K00000 3532827K00000	.CLIP	Not available	£0,00
# 3	35650-27K00-000 3565027K00000 3565027K00000	.CAP	Not available	£0,00

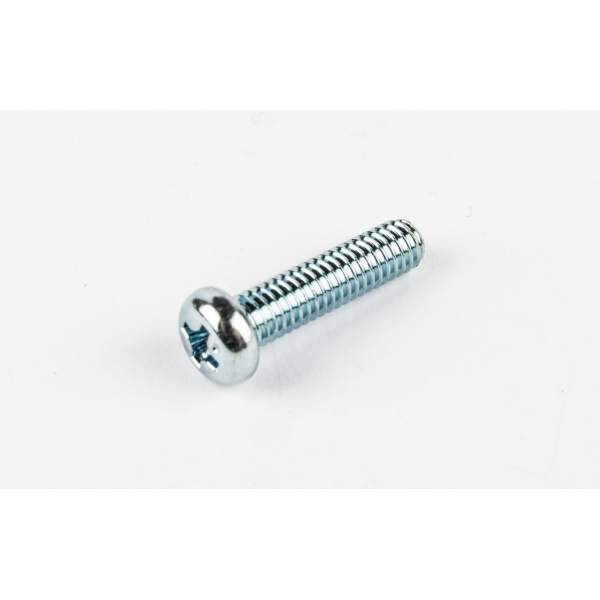

# 4	02112-0416A-000 021120416A000 021120416A000	.SCREW	£1,80
# 5	03541-0516A-000 035410516A000 035410516A000	SCREW	£1,87
# 6	35910-16GB0-000 3591016GB0000 3591016GB0000	LAMP ASSY, LICENSE	Not available	£0,00
# 7	35912-30H01-000 3591230H01000 3591230H01000	.LENS	£4,26
# 8	35913-30H00-000 3591330H00000 3591330H00000	.GASKET	£2,10
# 9	35917-30H00-000 3591730H00000 3591730H00000	.COVER	£2,10
# 10	35926-30H00-000 3592630H00000 3592630H00000	RETAINER .WASHER	£1,09
# 11	09471-12226-000 0947112226000 0947112226000	.BULB (12V10W, AMBER)	£6,31
# 12	03211-04203-000 03211-04207-000 0321104203000	.SCREW	£2,04
# 13	09160-05501-000 0916005501000 0916005501000	WASHER WASHER (5.5X20X1.2)	£2,41
# 14	03541-0520A-000 03541-0520B-000 035410520A000	SCREW	£3,52
# 15	09407-14407-000 0940714407000 0940714407000	BAND CLAMP (L:145)	£4,03
# 16	09407-15L01-000 0940715L01000 0940715L01000	CLAMP CLAMP (L:170)	£2,32
# 17	35970-28G00-000 3597028G00000 3597028G00000	REFLEX REFLECTOR REFLECTOR ASSY, REAR	£6,41
# 18	08316-1005A-000 083161005A000 083161005A000	NUT	£3,07
