CYLINDER

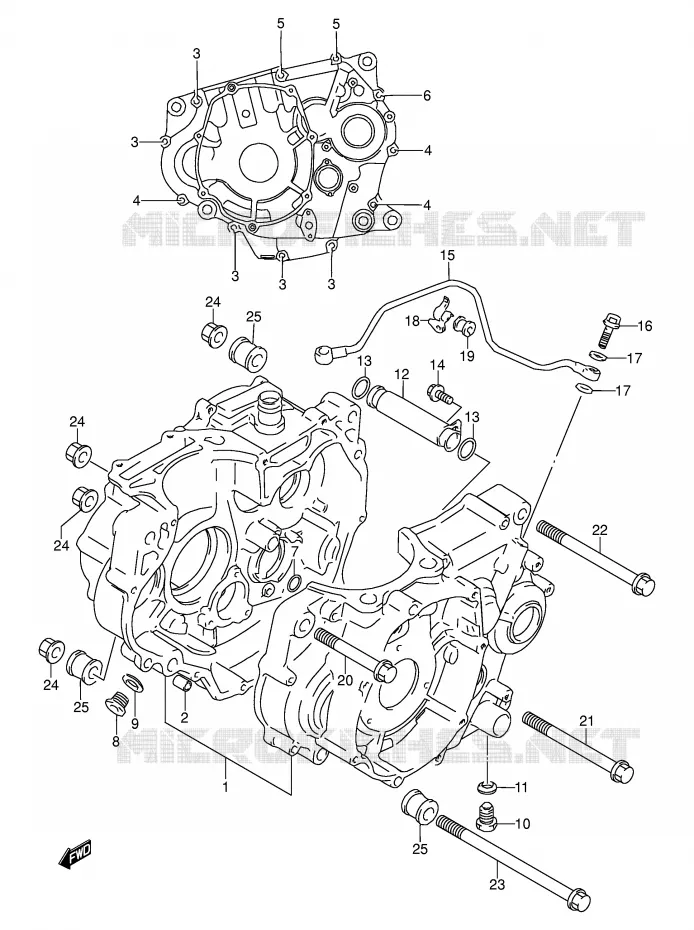

CRANKCASE FOR SUZUKI DR 250 1990

CRANKCASE COVER

Item numbers

11301-14882-000
CRANKCASE SET

11301-14882-000 1130114882000

Not available

11301-15820-000
CRANKCASE SET

11301-15820-000 1130115820000

Not available

04211-09149-000 0421109149000

£2,51

Unit Price Incl. Tax

BOLT

01547-06457-000 0154706457000

£4,22

Unit Price Incl. Tax

01547-06453-000
BOLT

01547-06453-000 0154706453000

Not available

BOLT

01547-06507-000 0154706507000

£4,44

Unit Price Incl. Tax

01547-06503-000
BOLT

01547-06503-000 0154706503000

Not available

BOLT

01547-06607-000 0154706607000

£5,72

Unit Price Incl. Tax

01547-06603-000
BOLT

01547-06603-000 0154706603000

Not available

BOLT

01547-06707-000 0154706707000

£5,57

Unit Price Incl. Tax

09280-13007-000
O RING

09280-13007-000 0928013007000

Not available

OIL GALLERY PLUG
PLUG, OIL GALLERY

09248-14005-000 0924814005000

Not available

GASKET

09168-14002-000 0916814002000

£3,46

Unit Price Incl. Tax

GASKET
GASKET (14.1X18.0X1.5)

09168-14004-000 0916814004000

£2,90

Unit Price Incl. Tax

01104-12205-000
PLUG, OIL DRAIN

01104-12205-000 0110412205000

Not available

01500-12203-000
PLUG, OIL DRAIN

01500-12203-000 0150012203000

Not available

GASKET(12.1X16.2X3.7)
GASKET

09168-12002-000 0916812002000

Not available

REORDER ROBINSONS
PIPE, MISSION OIL INNER

11450-14D01-000 1145014D01000

£42,95

Unit Price Incl. Tax

O RING

09280-16005-000 0928016005000

£2,98

Unit Price Incl. Tax

01517-06128-000
BOLT, BRACKET REAR

01517-06128-000 0151706128000

Not available

01550-06123-000
BOLT

01550-06123-000 0155006123000

Not available

PIPE
PIPE, MISSION OIL OUTER

11280-14D02-000 1128014D02000

Not available

BOLT
UNION BOLT, OIL PIPE

09360-08011-000 0936008011000

£9,59

Unit Price Incl. Tax

GASKET, 8.2X14X1
GASKET

09168-08008-000 0916808008000

£1,42

Unit Price Incl. Tax

REORDER ROBINSONS
CLAMP, OIL PIPE

11290-14D00-000 1129014D00000

Not available

CUSHION

09320-06019-000 0932006019000

Not available

REORDER ROBINSONS
BOLT (10X85)

09103-10230-000 0910310230000

£6,77

Unit Price Incl. Tax

BOLT
BOLT (10X100)

09103-10242-000 0910310242000

£16,61

Unit Price Incl. Tax

BOLT
BOLT (10X115)

09103-10063-000 0910310063000

£10,45

Unit Price Incl. Tax

BOLT
BOLT (10X143)

09103-10241-000 0910310241000

£15,28

Unit Price Incl. Tax

09159-10058-000
NUT

09159-10058-000 0915910058000

Not available

SPACER

11611-14D00-000 1161114D00000

£31,14

Unit Price Incl. Tax

11611-36A30-000
SPACER (L:19.85)

11611-36A30-000 1161136A30000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the CRANKCASE of your Suzuki of DR. Let us know if you have any questions.
