STARTER MOTOR FOR SUZUKI GN 250 2001

IGNITION

Item numbers

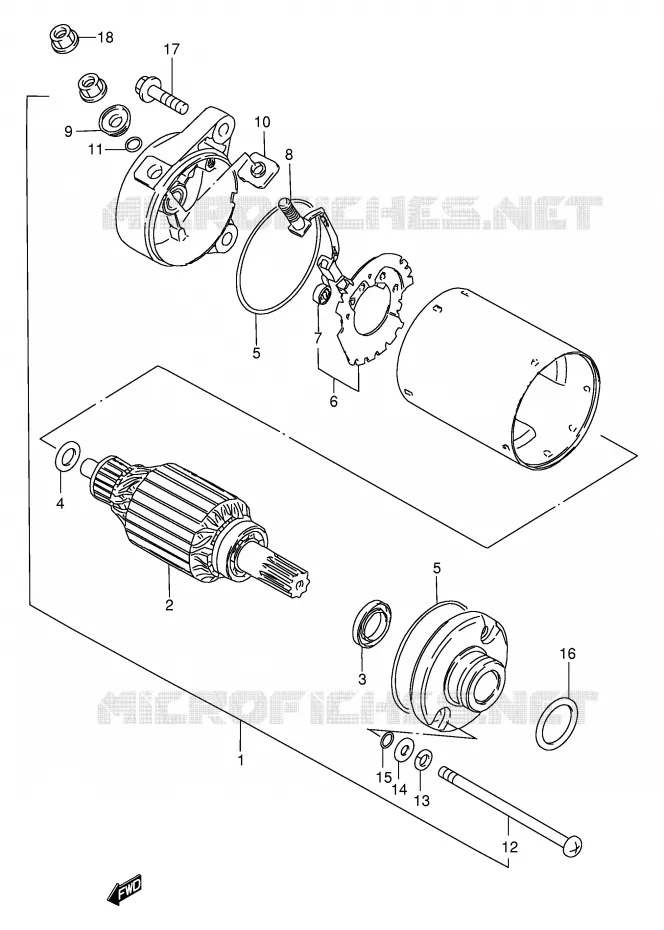

STARTER MOTOR Suzuki MOTO 250 GN 2001 GN250EK1(E2)

1

STARTER MOTOR ASSY
MOTOR ASSY, STARTING

31100-38300-H17 3110038300H17

Not available

2

ARMATURE

31311-49211-H17 3131149211H17

£155,20

Unit Price Incl. Tax

3

OIL SEAL

31153-49210-000 3115349210000

£40,21

Unit Price Incl. Tax

4

STARTING MOTOR SHIM SET
SHIM

31170-43400-000 3117043400000

£8,62

Unit Price Incl. Tax

5

O RING

31264-44110-000 3126444110000

£19,62

Unit Price Incl. Tax

6

BRUSH HOLDER SET
BRUSH HOLDER ASSY

31132-27A01-000 3113227A01000

£118,10

Unit Price Incl. Tax

7

SPRING

31135-65010-000 3113565010000

£7,58

Unit Price Incl. Tax

8

BRUSH
BRUSH (+)

31130-38300-000 3113038300000

£32,36

Unit Price Incl. Tax

9

BUSHING
BUSHING (A)

31172-38300-000 3117238300000

£10,16

Unit Price Incl. Tax

10

BUSHING
BUSHING (B)

31171-38300-000 3117138300000

£14,88

Unit Price Incl. Tax

11

O RING

31143-38300-000 3114338300000

£8,50

Unit Price Incl. Tax

12

BOLT
SCREW

31281-87402-000 3128187402000

£17,24

Unit Price Incl. Tax

13

LOCK WASHER

08321-01067-000 0832101067000

£2,89

Unit Price Incl. Tax

14

WASHER, STARTING MOTOR
WASHER

31161-38300-000 3116138300000

Not available

15

O RING

31156-38300-000 3115638300000

£7,62

Unit Price Incl. Tax

16

O RING
O RING (D:3, ID:24.5)

09280-24003-000 0928024003000

£1,99

Unit Price Incl. Tax

17

01550-06257-000
BOLT

01550-06257-000 0155006257000

Not available

18

08361-35068-000
NUT

08361-35068-000 0836135068000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
