COWLING BODY (MODEL R / T) COLOR : M18 = 0JW(WHITE),1LE(BLUE)

INSTALATION PARTS (MODEL N / P / R / T) FOR SUZUKI RG 250 1991

SEAT (MODEL M / N / P) REFER FIG.46A(J- 4) FOR MODEL R/T

(1) 94616-22D00-000

PIN
PIN, WINDOW SCREEN (4X11)

(2) 09320-04501-000

CUSHION
CUSHION (4X13X1.0)

(3) 09148-04032-000

NUT

(4) 09139-05044-000

SCREW

(5) 09161-07009-000

WASHER

(6) 09139-05043-000

SCREW

(6) 09139-05043-000

SCREW

(7) 09161-07009-000

WASHER

(7) 09161-07009-000

WASHER

(8) 94484-12C11-000

NUT

(8) 94484-12C11-000

NUT

(9) 03241-0516A-000

SCREW
SCREW, CENTER PANEL (5X16)

(10) 09161-05017-000

WASHER

(11) 09148-05013-000

NUT
ASHTRAY GUIDE NUT

(12) 09139-06053-000

SCREW

(13) 09160-06125-000

WASHER

(14) 94520-12C00-000

PLUG
PLUG, COWLING CENTER

(15) 94522-12C00-000

PIPE
PIPE, COWLING CENTER

(16) 94523-12C0V-000

PIN
PIN, COWLING FITTING PIPE

(17) 01570-06207-000

BOLT

(17) 01570-0620A-000

BOLT

(18) 09139-06053-000

SCREW

(19) 09160-06056-000

WASHER
WASHER (6.5X18X1)

(20) 09180-06307-000

SPACER
SPACER, COWL SIDE

(21) 09320-09016-000

CUSHION

(22) 94740-22D10-000

BRACKET UNDER COWLING R
BRACKET, UNDER COWLING LOWER

(23) 09116-06024-000

BOLT
BOLT (6X16)

(24) 94510-22D01-000

BRACE
BRACE, COWLING

(25) 01570-0835A-000

BOLT

(25) 01570-0835A-000

BOLT

(25) 01570-0835A-000

BOLT
BOLT

(25) 01570-0835A-000

BOLT
BOLT

(25) 01570-0835A-000

BOLT

(25) 01570-0835A-000

BOLT

(25) 01570-0835A-000

BOLT
BOLT

(25) 01570-0835A-000

BOLT
BOLT

(25) 01570-0835A-000

BOLT

(25) 01570-0835A-000

BOLT

(25) 01570-0835A-000

BOLT
BOLT

(25) 01570-0835A-000

BOLT
BOLT

(26) 08313-2008B-000

NUT

(26) 08313-20087-000

NUT

(27) 09250-08013-000

CAP

(28) 09116-06115-000

BOLT
BOLT, HEADLAMP (6*20)

(29) 09180-06307-000

SPACER
SPACER, COWL SIDE

(30) 09320-08518-000

CUSHION (8.5X23X9.7)
CUSHION

(31) 94520-22D01-000

BRACE
BRACE, REAR VIEW MIRROR

(32) 09116-06115-000

BOLT
BOLT, HEADLAMP (6*20)

(33) 09320-09009-000

CUSHION

(34) 09169-06062-000

WASHER
WASHER (6.3X17X1.6)

(35) 94576-22D00-000

CUSHION
CUSHION, REAR VIEW MIRROR

(36) 09136-06004-000

SCREW
SCREW (6X12)

(37) 09161-06023-000

WASHER

(38) 94418-22D00-000

HEADLAMP BRACKET RH
BRACKET, HEADLAMP RH

(39) 94419-22D00-000

HEADLAMP BRACKET LH
BRACKET, HEADLAMP LH

(40) 03541-0516B-000

SCREW

(40) 03541-0516B-000

SCREW

(40) 03541-0516B-000

SCREW
SCREW

(40) 03541-0516B-000

SCREW
SCREW

(40) 03541-0516B-000

SCREW

(40) 03541-0516B-000

SCREW

(40) 03541-0516B-000

SCREW
SCREW

(40) 03541-0516B-000

SCREW
SCREW

(41) 94454-12C01-000

BODY
BODY, AIR DUCT

(42) 02142-05127-000

SCREW

(42) 02142-0512A-000

SCREW

(43) 09402-36403-XC0

CLAMP

(44) 03211-0425B-000

SCREW
TAPPING SCREW

(45) 94455-22D00-000

BODY
BODY, AIR DUCT

(46) 09321-10018-000

CUSHION

	Part number	Description	Qty
# 1	94616-22D00-000 9461622D00000 9461622D00000	PIN PIN, WINDOW SCREEN (4X11)	£4,81
# 2	09320-04007-000 09320-04501-000 0932004007000	CUSHION CUSHION (4X13X1.0)	£5,06
# 3	09148-04032-000 0914804032000 0914804032000	NUT	£2,86
# 4	09139-05044-000 0913905044000 0913905044000	SCREW	£6,41
# 5	09161-07009-000 0916107009000 0916107009000	WASHER	£3,80
# 6	09139-05043-000 0913905043000 0913905043000	SCREW	£6,41
# 7	09161-07009-000 0916107009000 0916107009000	WASHER	£3,80
# 8	94484-12C11-000 9448412C11000 9448412C11000	NUT	£15,62
# 9	03241-05163-000 03241-0516A-000 0324105163000	SCREW SCREW, CENTER PANEL (5X16)	£1,55
# 10	09161-05017-000 0916105017000 0916105017000	WASHER	Not available	£0,00
# 11	09148-05004-000 09148-05013-000 0914805004000	NUT ASHTRAY GUIDE NUT	£2,28
# 12	09139-06053-000 0913906053000 0913906053000	SCREW	£6,08
# 13	09160-06053-000 09160-06125-000 0916006053000	WASHER	£2,59
# 14	94520-12C00-000 9452012C00000 9452012C00000	PLUG PLUG, COWLING CENTER	£17,05
# 15	94522-12C00-000 9452212C00000 9452212C00000	PIPE PIPE, COWLING CENTER	Not available	£0,00
# 16	94523-12C00-000 94523-12C0V-000 9452312C00000	PIN PIN, COWLING FITTING PIPE	£6,49
# 17	01137-06205-000 01570-0620A-000 0113706205000	BOLT	£2,83
# 17	01570-06207-000 0157006207000 0157006207000	BOLT	£4,16
# 18	09139-06053-000 0913906053000 0913906053000	SCREW	£6,08
# 19	09160-06056-000 0916006056000 0916006056000	WASHER WASHER (6.5X18X1)	Not available	£0,00
# 20	09180-06114-000 09180-06307-000 0918006114000	SPACER SPACER, COWL SIDE	£4,85
# 21	09320-09016-000 0932009016000 0932009016000	CUSHION	Not available	£0,00
# 22	94740-22D01-000 9474022D01000	BRACKET UNDER COWLING R BRACKET, UNDER COWLING LOWER	Not available	£0,00
# 23	09116-06024-000 0911606024000 0911606024000	BOLT BOLT (6X16)	£3,64
# 24	94510-22D01-000 9451022D01000 9451022D01000	BRACE BRACE, COWLING	Not available	£0,00
# 25	01137-08355-000 01570-0835A-000 0113708355000	BOLT	£3,58
# 26	08313-20083-000 08313-2008B-000 0831320083000	NUT	£4,10
# 26	08313-20087-000 0831320087000 0831320087000	NUT	£3,52
# 26	08313-21085-000 08313-2008B-000 0831321085000	NUT	£4,10
# 27	09250-08013-000 0925008013000 0925008013000	CAP	£3,73
# 28	09116-06143-000 09116-06115-000 0911606143000	BOLT BOLT, HEADLAMP (6*20)	£2,59
# 29	09180-06114-000 09180-06307-000 0918006114000	SPACER SPACER, COWL SIDE	£4,85
# 30	09320-08047-000 09320-08518-000 0932008047000	CUSHION (8.5X23X9.7) CUSHION	£3,05
# 31	94520-22D01-000 9452022D01000 9452022D01000	BRACE BRACE, REAR VIEW MIRROR	Not available	£0,00
# 32	09116-06143-000 09116-06115-000 0911606143000	BOLT BOLT, HEADLAMP (6*20)	£2,59
# 33	09320-09009-000 0932009009000 0932009009000	CUSHION	£6,18
# 34	09169-06062-000 0916906062000 0916906062000	WASHER WASHER (6.3X17X1.6)	£4,06
# 35	94576-22D00-000 9457622D00000 9457622D00000	CUSHION CUSHION, REAR VIEW MIRROR	£7,27
# 36	09136-06004-000 0913606004000 0913606004000	SCREW SCREW (6X12)	£2,59
# 37	09161-06023-000 0916106023000 0916106023000	WASHER	£5,47
# 38	94418-22D00-000 9441822D00000 9441822D00000	HEADLAMP BRACKET RH BRACKET, HEADLAMP RH	Not available	£0,00
# 39	94419-22D00-000 9441922D00000 9441922D00000	HEADLAMP BRACKET LH BRACKET, HEADLAMP LH	Not available	£0,00
# 40	03541-05163-000 03541-0516B-000 0354105163000	SCREW	£2,29

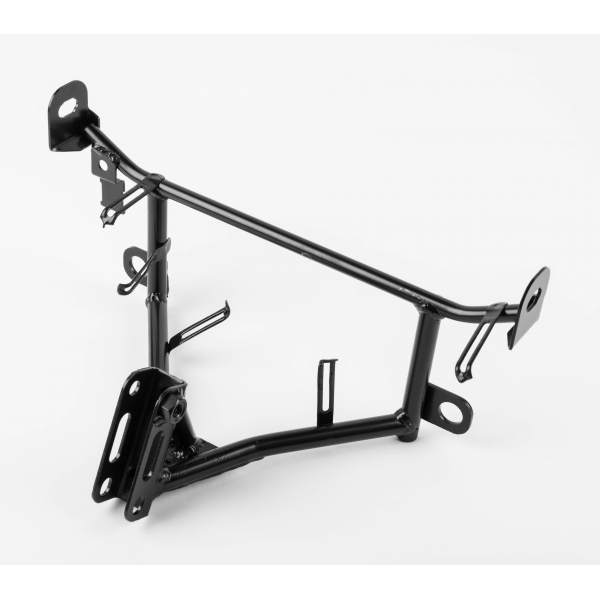

# 41	94454-12C01-000 9445412C01000 9445412C01000	BODY BODY, AIR DUCT	Not available	£0,00
# 42	02142-05127-000 0214205127000 0214205127000	SCREW	£2,59
# 42	02142-05123-000 0214205123000	SCREW	Not available	£0,00
# 43	09402-36403-000 09402-36403-XC0 0940236403000	CLAMP	£8,96
# 44	03211-04253-000 03211-0425B-000 0321104253000	SCREW TAPPING SCREW	£3,64
# 45	94455-22D00-000 9445522D00000 9445522D00000	BODY BODY, AIR DUCT	Not available	£0,00
# 46	09321-10018-000 0932110018000 0932110018000	CUSHION	£7,37
