TRANSMISSION MODEL Z MODEL D:

TRANSMISSION MODEL D FOR SUZUKI RM 250 1982

GEAR SHIFTING MODEL Z MODEL D:

(1) 24121-14310-000

DISCONTINUED

(2) 24221-14310-000

GEAR,2ND DRIVEN (NT:18)

(3) 24231-14310-000

GEAR,3RD DRIVE (NT:21)

(4) 24241-14311-000

GEAR 4TH DRIVE (NT:23)

(5) 24251-14311-000

REORDER CROOKS
GEAR 5TH DRIVE (NT:25)

(6) 09167-22011-000

LOCK WASHER
DRIVEN GEAR WASHER

(7) 09167-22014-000

WASHER
WASHER,3RD DRVN GEAR

(8) 09380-22006-000

CIRCLIP
4TH DRIVE GR CIRCLIP

(9) 09181-22002-000

REORDER CROOKS
DRIVEN GR THR WASHER

(10) 24131-14310-000

DISCONTINUED

(11) 24311-14311-000

GEAR 1ST DRIVEN (NT:27)

(12) 24320-14310-000

DISCONTINUED

(13) 24331-14310-000

GEAR,3RD DRIVEN (NT:29)

(14) 24341-14310-000

GEAR,4TH DRIVEN (NT:27)

(15) 24351-14311-000

GEAR 5TH DRIVEN (NT:25)

(16) 09181-17195-000

THRUST WASHER

(17) 08221-25325-000

SUZUKI PART
SHIM

(18) 09380-22006-000

CIRCLIP
4TH DRIVE GR CIRCLIP

(19) 08331-31259-000

CIRCLIP

(20) 09167-22014-000

WASHER
WASHER,3RD DRVN GEAR

(21) 09262-20073-000

BALL BEARING
B1 20X52X15 BEARING

(22) 09262-17023-000

BEARING
B1 17X40X12 BEARING

(23) 09262-17023-000

BEARING
B1 17X40X12 BEARING

(24) 09262-22028-000

BALL BEARING
BEARING, RH (22X56X16)

(25) 09283-32003-000

OIL SEAL
DRIVE SHAFT OIL SEAL

(26) 24741-40300-000

RETAINER CTR SHAFT

(27) 02112-06127-000

SCREW
.6 X 12 CROSS SCREW

(28) 24751-40300-000

RETAINER DRIVE SHAFT

(29) 02122-06127-000

SCREW
6 X 12 CROSS SCREW

(30) 26260-13A10-000

GEAR KICK STARTER IDLE
GEAR KK STARTER IDLE (NT:26)

(31) 08211-17241-000

THRUST WASHER

(32) 09380-17001-000

SNAP RING
THIRD PINION CIRCLIP

(33) 27511-47D00-000

ENGINE SPROCKET
SPROCKET, ENGINE (NT:14)

(33) 27511-37F00-000

SPROCKET ENGINE (NT 13)
SPROCKET, ENGINE (NT:13)

(33) 27511-14320-000

ENGINE SPROCKET
SPROCKET,ENGINE (NT:15)

(34) 09180-22026-000

SPACER
SPACER ENG SPROCKET

(35) 09140-18009-000

NUT
NUT ENGINE SPROCKET

(36) 09167-22012-000

WASHER
ENG SPROCKET WASHER

(37) 09280-22003-000

O RING
DRIVE SHAFT O RING

(38) 27600-46K00-116

DRIVE CHAIN
DISCONTINUED

(39) 27620-14261-000

DISCONTINUED

(39) 27620-28C01-000

JOINT, CHAIN
JOINT,CHAIN (DID)

(40) 09180-12068-000

SPACER
RETURN SPRING SPACER

	Part number	Description	Qty
# 1	24121-14310-000 2412114310000 2412114310000	DISCONTINUED	Not available	£0,00
# 2	24221-14310-000 2422114310000 2422114310000	GEAR, 2ND DRIVEN (NT:18)	Not available	£0,00
# 3	24231-14310-000 2423114310000 2423114310000	GEAR, 3RD DRIVE (NT:21)	Not available	£0,00
# 4	24241-14311-000 2424114311000 2424114311000	GEAR 4TH DRIVE (NT:23)	Not available	£0,00
# 5	24251-14311-000 2425114311000 2425114311000	REORDER CROOKS GEAR 5TH DRIVE (NT:25)	Not available	£0,00
# 6	09167-22011-000 0916722011000 0916722011000	LOCK WASHER DRIVEN GEAR WASHER	£4,99
# 7	09167-22014-000 0916722014000 0916722014000	WASHER WASHER, 3RD DRVN GEAR	£5,51
# 8	09380-22006-000 0938022006000 0938022006000	CIRCLIP 4TH DRIVE GR CIRCLIP	£4,75
# 9	09181-22002-000 0918122002000 0918122002000	REORDER CROOKS DRIVEN GR THR WASHER	Not available	£0,00
# 10	24131-14310-000 2413114310000 2413114310000	DISCONTINUED	Not available	£0,00
# 11	24311-14311-000 2431114311000 2431114311000	GEAR 1ST DRIVEN (NT:27)	Not available	£0,00
# 12	24320-14310-000 2432014310000 2432014310000	DISCONTINUED	Not available	£0,00
# 13	24331-14310-000 2433114310000 2433114310000	GEAR, 3RD DRIVEN (NT:29)	Not available	£0,00
# 14	24341-14310-000 2434114310000 2434114310000	GEAR, 4TH DRIVEN (NT:27)	Not available	£0,00
# 15	24351-14311-000 2435114311000 2435114311000	GEAR 5TH DRIVEN (NT:25)	Not available	£0,00
# 16	08211-17281-000 09181-17195-000 0821117281000	THRUST WASHER	£2,46
# 17	08221-25325-000 0822125325000 0822125325000	SUZUKI PART SHIM	£3,29
# 18	09380-22006-000 0938022006000 0938022006000	CIRCLIP 4TH DRIVE GR CIRCLIP	£4,75
# 19	08331-31256-000 08331-31259-000 0833131256000	CIRCLIP	£3,40
# 20	09167-22014-000 0916722014000 0916722014000	WASHER WASHER, 3RD DRVN GEAR	£5,51
# 21	09262-20073-000 0926220073000 0926220073000	BALL BEARING B1 20X52X15 BEARING	£32,06
# 22	09262-17023-000 0926217023000 0926217023000	BEARING B1 17X40X12 BEARING	£14,11
# 23	09262-17023-000 0926217023000 0926217023000	BEARING B1 17X40X12 BEARING	£14,11
# 24	09262-22014-000 09262-22028-000 0926222014000	BALL BEARING BEARING, RH (22X56X16)	£52,52

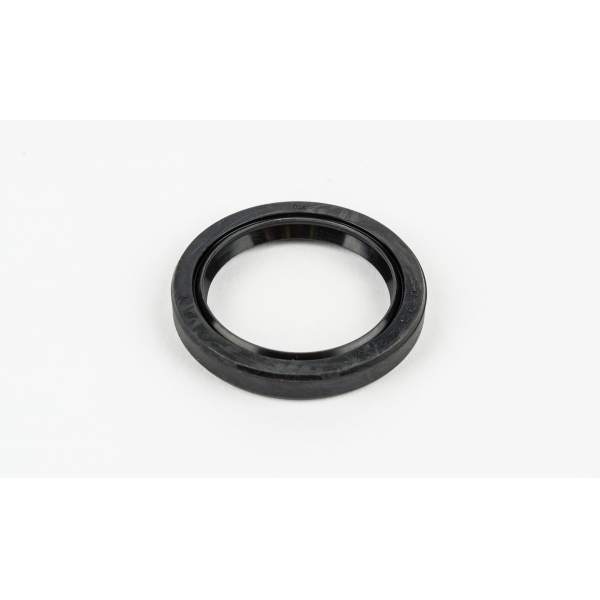

# 25	09283-32003-000 0928332003000 0928332003000	OIL SEAL DRIVE SHAFT OIL SEAL	£12,11
# 26	24741-40300-000 2474140300000 2474140300000	RETAINER CTR SHAFT	Not available	£0,00
# 27	02112-06128-000 02112-06127-000 0211206128000	SCREW .6 X 12 CROSS SCREW	£2,44
# 28	24751-40300-000 2475140300000 2475140300000	RETAINER DRIVE SHAFT	Not available	£0,00
# 29	02122-06128-000 02122-06127-000 0212206128000	SCREW 6 X 12 CROSS SCREW	£2,44
# 30	26260-41101-000 2626041101000	GEAR KICK STARTER IDLE GEAR KK STARTER IDLE (NT:26)	Not available	£0,00
# 31	08211-17241-000 0821117241000 0821117241000	THRUST WASHER	£3,04
# 32	09380-17001-000 0938017001000 0938017001000	SNAP RING THIRD PINION CIRCLIP	£2,84
# 33	27511-14300-000 27511-47D00-000 2751114300000	ENGINE SPROCKET SPROCKET, ENGINE (NT:14)	£38,34
# 33	27511-14310-000 27511-37F00-000 2751114310000	SPROCKET ENGINE (NT 13) SPROCKET, ENGINE (NT:13)	£38,08
# 33	27511-14320-000 2751114320000 2751114320000	ENGINE SPROCKET SPROCKET, ENGINE (NT:15)	Not available	£0,00
# 34	09180-22026-000 0918022026000 0918022026000	SPACER SPACER ENG SPROCKET	Not available	£0,00
# 35	09140-18009-000 0914018009000 0914018009000	NUT NUT ENGINE SPROCKET	Not available	£0,00
# 36	09167-22012-000 0916722012000 0916722012000	WASHER ENG SPROCKET WASHER	£1,50
# 37	09280-22003-000 0928022003000 0928022003000	O RING DRIVE SHAFT O RING	£2,48
# 38	27600-14310-000 27600-46K00-116 2760014310000	DRIVE CHAIN DISCONTINUED	£84,10
# 39	27620-14261-000 2762014261000 2762014261000	DISCONTINUED	Not available	£0,00
# 39	27620-14270-000 2762014270000	JOINT, CHAIN JOINT, CHAIN (DID)	Not available	£0,00
# 40	09180-12068-000 0918012068000 0918012068000	SPACER RETURN SPRING SPACER	£4,85
