FAIRING (MODEL Y) REFER TO FIG.37A(H-14) FOR MODEL K1/K2

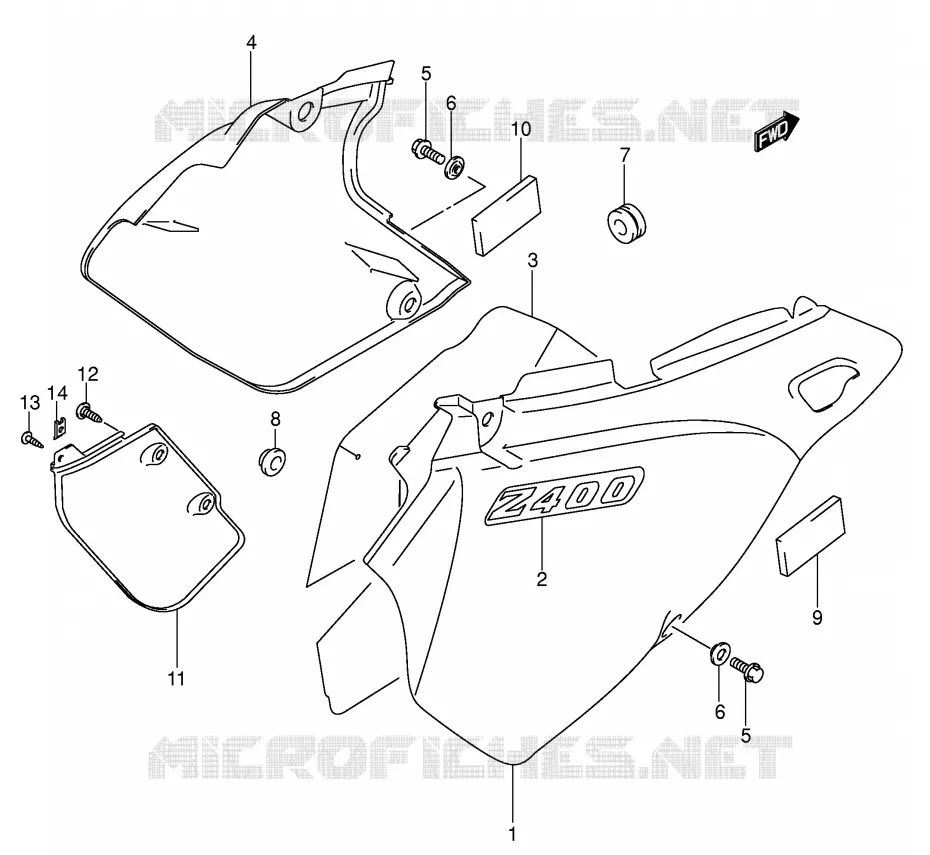

FAIRING (MODEL K1 / K2) FOR SUZUKI DR-Z 400 2003

FAIRING (MODEL K3 / K4)

Item numbers

COVER FRAME RH
COVER, FRAME RH (YELLOW)

47111-29F00-YR1 4711129F00YR1

£82,64

Unit Price Incl. Tax

COVER, FRAME RH (YELLOW)

47111-29F00-YU1 4711129F00YU1

£103,62

Unit Price Incl. Tax

EMBLEM FRAME COVER (YR1)
EMBLEM, FRAME COVER

68131-29F10-FR4 6813129F10FR4

Not available

SHIELD FRAME COVER
SHIELD, FRAME COVER RH

47166-29F00-000 4716629F00000

£104,21

Unit Price Incl. Tax

47211-29F00-YR1
COVER, FRAME LH (YELLOW)

47211-29F00-YR1 4721129F00YR1

Not available

COVER, FRAME LH (YELLOW)

47211-29F00-YU1 4721129F00YU1

Not available

47211-29F10-YR1
COVER, FRAME LH (YELLOW)

47211-29F10-YR1 4721129F10YR1

Not available

COVER FRAME L
COVER, FRAME LH (YELLOW)

47211-29F10-YU1 4721129F10YU1

Not available

COVER, FRAME LH (YELLOW)

47211-29F20-YR1 4721129F20YR1

Not available

COVER, FRAME LH (YELLOW)

47211-29F20-YU1 4721129F20YU1

Not available

01547-06163-000
BOLT

01547-06163-000 0154706163000

Not available

LOCK WASHER
WASHER

09169-06041-000 0916906041000

£4,97

Unit Price Incl. Tax

CUSHION
CUSHION, RH

09320-06504-000 0932006504000

£10,26

Unit Price Incl. Tax

CUSHION
CUSHION, MUFFLER

09321-10018-000 0932110018000

£9,23

Unit Price Incl. Tax

CUSHION, LH COVER FRONT

47161-29F00-000 4716129F00000

£12,76

Unit Price Incl. Tax

CUSHION, RH COVER FRONT

71762-65G10-000 7176265G10000

£14,42

Unit Price Incl. Tax

PROTECTOR, CHAIN

47221-29F00-000 4722129F00000

Not available

SCREW

09139-06083-000 0913906083000

£3,83

Unit Price Incl. Tax

03242-05103-000
SCREW

03242-05103-000 0324205103000

Not available

NUT(M5)
NUT

09148-05038-000 0914805038000

£3,30

Unit Price Incl. Tax

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
