RADIATOR HOSE - EXPANSION TANK

CLUTCH FOR SUZUKI GSX 400 1997

TRANSMISSION

(1) 21200-46811-000

GEAR ASSY, PRI DRIVEN (NT:77)

(2) 09263-37001-000

ROLLER BEARING 37X42X27
BEARING (37X42X27)

(3) 09160-22045-000

WASHER
WASHER (22X50X2.5)

(4) 09160-22032-000

REORDER ROBINSONS
SPACER (22X32X3)

(5) 21410-46D00-000

HUB,CLUTCH SLEEVE GSX400
HUB, CLUTCH SLEEVE

(6) 09140-20006-000

REORDER ROBINSONS
NUT

(7) 09164-20007-000

LOCK WASHER (ID 20.1)
WASHER

(8) 09160-20051-000

WASHER
WASHER (20X50X2)

(9) 21441-46D01-000

PLATE, CLUTCH GSX400
PLATE, CLUTCH DRIVE NO.1

(10) 21451-46D00-000

PLATE CLUTCH DRIVEN NO.3 (N/UK
PLATE, CLUTCH DRIVEN

(11) 21442-46D02-000

PLATE, CLUTCH DRIVE NO.2

(12) 21471-46D10-000

SEAT, WAVE WASHER

(13) 21472-46D00-000

WASHER CLUTCH PLATE WAVE
WAVE WASHER

(14) 21462-46D00-000

DISC,CLUTCH PRESSURE GSX400V
DISC, CLUTCH PRESSURE

(15) 09440-19027-000

SPRING

(16) 09116-06150-000

BOLT
BOLT (6X25)

(17) 23121-39101-000

CLUTCH PUSH PIECE
PIECE, CLUTCH PUSH

(18) 09263-10002-000

ROLLER BEARING
BEARING (10.1X22X2.8)

(19) 23110-32C50-000

CLUTCH PUSH ROD
ROD, CLUTCH PUSH

(20) 23111-08A00-000

CLUTCH PUSH ROD
ROD, CLUTCH PUSH LH

(21) 09285-06018-000

OIL SEAL
OIL SEAL (6X34X7.5)

(22) 23200-32C00-000

SCREW ASSY, CLUTCH RELEASE

(23) 09134-06010-000

SCREW

(24) 08310-00067-000

NUT

(25) 02112-3612A-000

SCREW

(26) 09443-09044-000

SPRING

(27) 23117-33C01-000

RETAINER
RETAINER, OIL SEAL

(28) 01500-0612A-000

BOLT

	Part number	Description	Qty
# 1	21200-46811-000 2120046811000 2120046811000	GEAR ASSY, PRI DRIVEN (NT:77)	Not available	£0,00
# 2	09263-37001-000 0926337001000 0926337001000	ROLLER BEARING 37X42X27 BEARING (37X42X27)	£34,09
# 3	09160-22045-000 0916022045000 0916022045000	WASHER WASHER (22X50X2.5)	£14,84
# 4	09160-22032-000 0916022032000 0916022032000	REORDER ROBINSONS SPACER (22X32X3)	£7,39
# 5	21410-46D00-000 2141046D00000 2141046D00000	HUB, CLUTCH SLEEVE GSX400 HUB, CLUTCH SLEEVE	£148,43
# 6	09140-20006-000 0914020006000 0914020006000	REORDER ROBINSONS NUT	£5,51
# 7	09164-20007-000 0916420007000 0916420007000	LOCK WASHER (ID 20.1) WASHER	£6,01
# 8	09160-20051-000 0916020051000 0916020051000	WASHER WASHER (20X50X2)	£13,91
# 9	21441-46D01-000 2144146D01000 2144146D01000	PLATE, CLUTCH GSX400 PLATE, CLUTCH DRIVE NO.1	£25,43
# 10	21451-46D00-000 2145146D00000 2145146D00000	PLATE CLUTCH DRIVEN NO.3 (N/UK PLATE, CLUTCH DRIVEN	£8,80
# 11	21442-46D00-000 21442-46D02-000 2144246D00000	PLATE, CLUTCH DRIVE NO.2	£32,80
# 12	21471-46D10-000 2147146D10000 2147146D10000	SEAT, WAVE WASHER	£17,75
# 13	21472-46D00-000 2147246D00000 2147246D00000	WASHER CLUTCH PLATE WAVE WAVE WASHER	£26,05
# 14	21462-46D00-000 2146246D00000 2146246D00000	DISC, CLUTCH PRESSURE GSX400V DISC, CLUTCH PRESSURE	£78,11

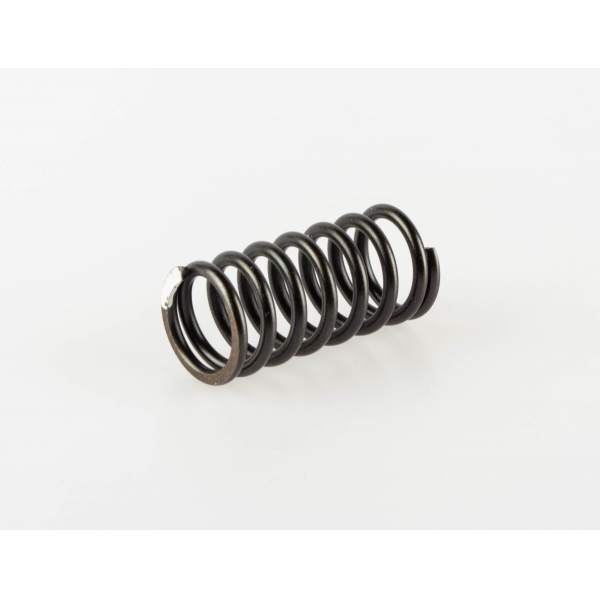

# 15	09440-19027-000 0944019027000 0944019027000	SPRING	£8,69
# 16	09116-06150-000 0911606150000 0911606150000	BOLT BOLT (6X25)	£3,96
# 17	23121-39101-000 2312139101000 2312139101000	CLUTCH PUSH PIECE PIECE, CLUTCH PUSH	Not available	£0,00
# 18	09263-10002-000 0926310002000 0926310002000	ROLLER BEARING BEARING (10.1X22X2.8)	£13,96
# 19	23110-32C50-000 2311032C50000 2311032C50000	CLUTCH PUSH ROD ROD, CLUTCH PUSH	£38,38
# 20	23111-08A00-000 2311108A00000 2311108A00000	CLUTCH PUSH ROD ROD, CLUTCH PUSH LH	£24,25
# 21	09285-06018-000 0928506018000 0928506018000	OIL SEAL OIL SEAL (6X34X7.5)	£10,72
# 22	23200-32C00-000 2320032C00000 2320032C00000	SCREW ASSY, CLUTCH RELEASE	£116,86
# 23	09134-06010-000 0913406010000 0913406010000	SCREW	£4,99
# 24	08310-00067-000 0831000067000 0831000067000	NUT	£2,44
# 25	02112-06123-000 02112-3612A-000 0211206123000	SCREW	£2,69
# 26	09443-09044-000 0944309044000 0944309044000	SPRING	£5,81
# 27	23117-33C01-000 2311733C01000 2311733C01000	RETAINER RETAINER, OIL SEAL	£10,87
# 28	01500-06123-000 01500-0612A-000 0150006123000	BOLT	£1,81

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the CLUTCH of your Suzuki of GSX. Let us know if you have any questions.
