CRANKCASE COVER

OIL PAN FOR SUZUKI BANDIT 600 1996

OIL PUMP

Item numbers

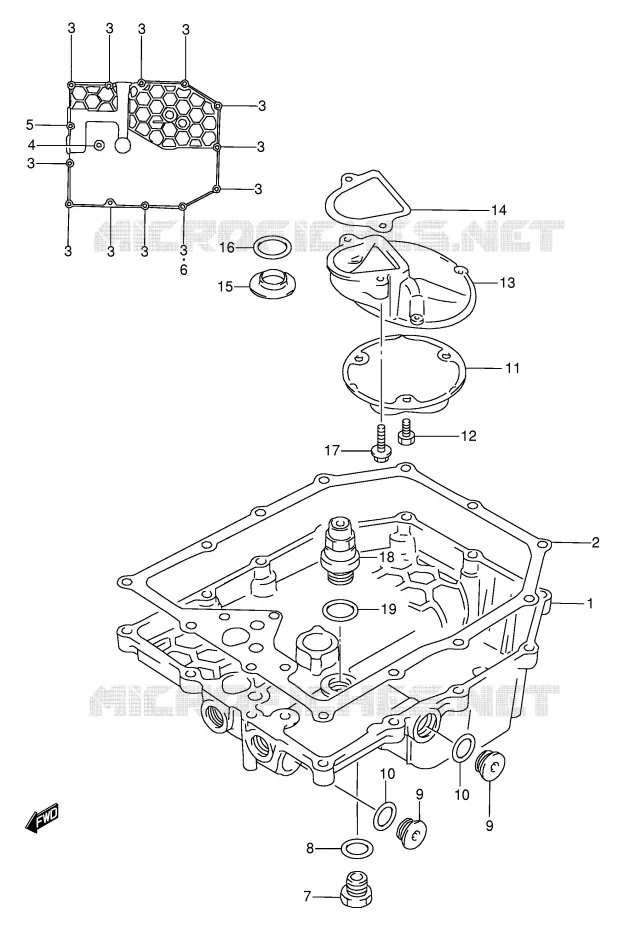

OIL PAN Suzuki MOTO 600 BANDIT 1996 GSF600T(E2)
1
2
3
3
3
3
3
3
3
3
3
3
3
3
4
5
6
7
8
9
9
10
10
11
12
13
14
15
16
17
18
19
1
11511-26E00-000
PAN, OIL

11511-26E00-000   1151126E00000

1151126E00000
Not available
2
11489-27A20-000
GASKET, OIL PAN

11489-27A20-000   1148927A20000

1148927A20000
Not available
3
01550-06253-000
BOLT

01550-06253-000   0155006253000

0155006253000
Not available
4
01550-06303-000
BOLT

01550-06303-000   0155006303000

0155006303000
Not available
5
01550-06503-000
BOLT

01550-06503-000   0155006503000

0155006503000
Not available
6
GASKET
GASKET

09168-06024-000   0916806024000

0916806024000

Unit Price Incl. Tax

7
09247-14001-000
PLUG, OIL DRAIN

09247-14001-000   0924714001000

0924714001000
Not available
8
GASKET
GASKET

09168-14002-000   0916814002000

0916814002000

Unit Price Incl. Tax

9
09248-16010-000
PLUG, OIL GALLERY

09248-16010-000   0924816010000

0924816010000
Not available
10
GASKET
GASKET

09168-16002-000   0916816002000

0916816002000

Unit Price Incl. Tax

11
OIL STRAINER<br />STRAINER, ENGINE OIL
OIL STRAINER
STRAINER, ENGINE OIL

16520-09301-000   1652009301000

1652009301000

Unit Price Incl. Tax

12
01570-06123-000
BOLT

01570-06123-000   0157006123000

0157006123000
Not available
13
PROTECTOR<br />PROTECTOR, STRAINER
PROTECTOR
PROTECTOR, STRAINER

16525-06B00-000   1652506B00000

1652506B00000

Unit Price Incl. Tax

14
16528-27A20-000
GASKET, PROTECTOR

16528-27A20-000   1652827A20000

1652827A20000
Not available
15
OIL OUTLET GASKET ASB<br />GASKET, OIL OUTLET
OIL OUTLET GASKET ASB
GASKET, OIL OUTLET

16529-27A01-000   1652927A01000

1652927A01000

Unit Price Incl. Tax

16
O RING<br />O RING (D:3.2,ID:17.8)
O RING
O RING (D:3.2, ID:17.8)

09280-18009-000   0928018009000

0928018009000

Unit Price Incl. Tax

17
01550-06253-000
BOLT

01550-06253-000   0155006253000

0155006253000
Not available
18
16440-17C01-000
REGULATOR, ENGINE OIL

16440-17C01-000   1644017C01000

1644017C01000
Not available
19
GASKET
GASKET

09168-16002-000   0916816002000

0916816002000

Unit Price Incl. Tax

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the OIL PAN of your Suzuki BANDIT 600 of BANDIT. Let us know if you have any questions.

Genuine parts for Suzuki 600 BANDIT 1996
