Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

SEAT (MODEL N / P / R / S / T)

BACKREST (MODEL J / K / L / M / N / P) FOR SUZUKI GSX-F 600 1990

BACKREST (MODEL R / S / T)

Item numbers

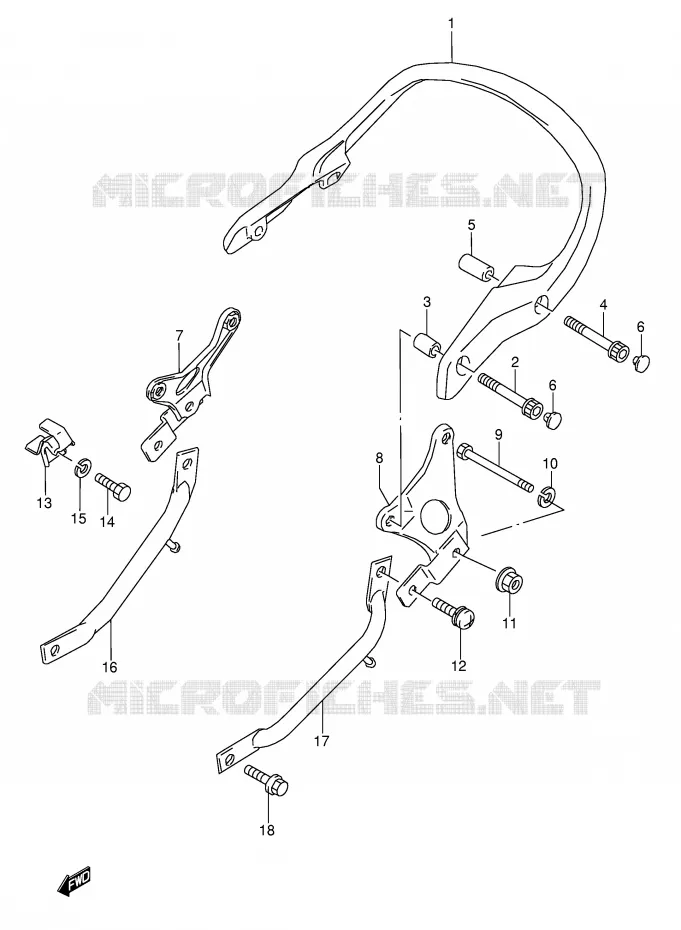

BACKREST (MODEL J/K/L/M/N/P) Suzuki MOTO 600 GSX-F 1990 GSX600FUL(E2)
1
1
1
1
2
2
3
4
4
5
6
6
7
8
9
9
10
11
11
12
12
13
14
14
15
16
16
17
17
18
1
GRAB RAIL
HANDLE, PILLION RIDER (BLACK)

46211-19C00-019   4621119C00019

4621119C00019
Not available
1
46211-19C00-37W
DISCONTINUED

46211-19C00-37W   4621119C0037W

4621119C0037W
Not available
1
46211-19C00-38K
HANDLE, PILLION RIDER (BLUE)

46211-19C00-38K   4621119C0038K

4621119C0038K
Not available
1
46211-19C00-39N
HANDLE, PILLION RIDER (BLUE)

46211-19C00-39N   4621119C0039N

4621119C0039N
Not available
2
FRONT BOLT<br />BOLT, FRONT
FRONT BOLT
BOLT, FRONT

07130-08357-000   0713008357000

0713008357000

Unit Price Incl. Tax

2
07110-08355-000
BOLT, HANDLEBAR

07110-08355-000   0711008355000

0711008355000
Not available
3
09180-08125-000
DISCONTINUED

09180-08125-000   0918008125000

0918008125000
Not available
4
BOLT
BOLT, REAR

07130-08557-000   0713008557000

0713008557000

Unit Price Incl. Tax

4
07110-08555-000
BOLT, UPPER

07110-08555-000   0711008555000

0711008555000
Not available
5
09180-08136-000
SPACER, CHAIN ROLLER

09180-08136-000   0918008136000

0918008136000
Not available
6
CAP
CAP

09250-06004-000   0925006004000

0925006004000

Unit Price Incl. Tax

7
BRACKET
BRACKET, PILLION HANDLE RH

46220-19C01-000   4622019C01000

4622019C01000
Not available
8
BRACKET
BRACKET, PILLION HANDLE LH

46230-19C01-000   4623019C01000

4623019C01000
Not available
9
01107-08555-000
.BOLT

01107-08555-000   0110708555000

0110708555000
Not available
9
01137-08555-000
BOLT

01137-08555-000   0113708555000

0113708555000
Not available
10
08321-21084-000
.LOCK WASHER

08321-21084-000   0832121084000

0832121084000
Not available
11
REORDER ROBINSONS
NUT

08316-20087-000   0831620087000

0831620087000

Unit Price Incl. Tax

11
08316-26085-000
NUT

08316-26085-000   0831626085000

0831626085000
Not available
12
SCREW
SCREW

02142-06207-000   0214206207000

0214206207000

Unit Price Incl. Tax

12
02142-06205-000
SCREW, FENDER UPPER

02142-06205-000   0214206205000

0214206205000
Not available
13
95720-19C00-000
DISCONTINUED

95720-19C00-000   9572019C00000

9572019C00000
Not available
14
01107-06205-000
BOLT, UPPER

01107-06205-000   0110706205000

0110706205000
Not available
14
01137-06205-000
BOLT

01137-06205-000   0113706205000

0113706205000
Not available
15
08321-21064-000
.LOCK WASHER

08321-21064-000   0832121064000

0832121064000
Not available
16
43970-19C00-000
DISCONTINUED

43970-19C00-000   4397019C00000

4397019C00000
Not available
16
43970-19C01-000
DISCONTINUED

43970-19C01-000   4397019C01000

4397019C01000
Not available
17
43980-19C00-000
DISCONTINUED

43980-19C00-000   4398019C00000

4398019C00000
Not available
17
43980-19C01-000
DISCONTINUED

43980-19C01-000   4398019C01000

4398019C01000
Not available
18
01517-08165-000
BOLT, BRACE FRONT

01517-08165-000   0151708165000

0151708165000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Suzuki 600 GSX-F 1990
