CARBURETOR (MODEL K) REFER TO FIG.12B(C-13) FOR MODEL L/M/N/P/R/S/T

CARBURETOR (MODEL L / M / N / P / R / S / T) FOR SUZUKI GSX-F 600 1990

CARBURETOR FITTINGS (MODEL L / M / N / P / R / S / T)

Item numbers

CARBURETOR ASSY, LH

13201-44C01-000 1320144C01000

Not available

CARBURETOR ASSY, ML

13202-44C01-000 1320244C01000

Not available

CARBURETOR ASSY, MR

13203-44C01-000 1320344C01000

Not available

CARBURETOR ASSY, RH

13204-44C01-000 1320444C01000

Not available

DIAPHRAGM

13507-17C00-000

13507-17C01-000

£28,16

Unit Price Incl. Tax

REORDER ROBINSONS
VALVE, PISTON

13501-01D00-000 1350101D00000

Not available

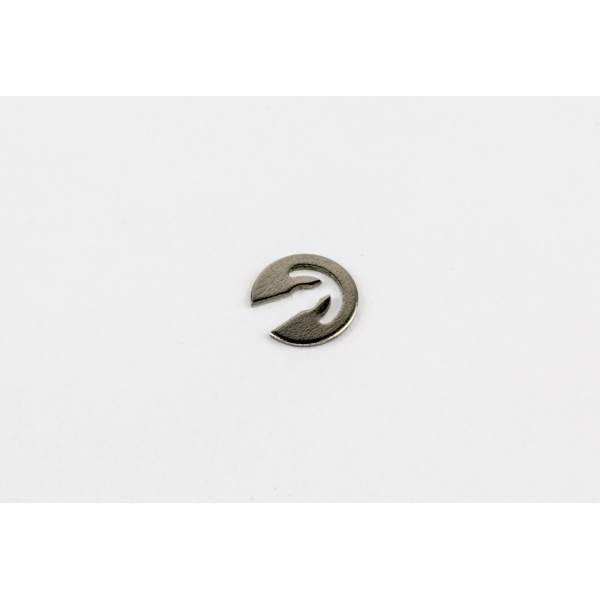

E RING

13394-40D20-000 1339440D20000

£7,37

Unit Price Incl. Tax

WASHER
RING

13382-42A00-000 1338242A00000

£7,37

Unit Price Incl. Tax

RING NEEDLE JET
RING

13387-47010-000 1338747010000

£11,96

Unit Price Incl. Tax

PLUNGER SPRING
SPRING

13417-42A00-000 1341742A00000

£11,18

Unit Price Incl. Tax

JET NEEDLE 5FZ102-3
NEEDLE, JET (5FZ102-3)

13383-44C20-000 1338344C20000

Not available

SCREW

13267-44B00-000 1326744B00000

£6,47

Unit Price Incl. Tax

FL CHAMBER GASKET ASB
GASKET, FLOAT CHAMBER

13258-44B00-000 1325844B00000

£7,84

Unit Price Incl. Tax

PILOT JET
JET, PILOT (32.5)

09492-32006-000 0949232006000

£17,53

Unit Price Incl. Tax

JET, NEEDLE (P-3)

09494-00763-000 0949400763000

Not available

O RING

13509-17C00-000 1350917C00000

£3,30

Unit Price Incl. Tax

MAIN JET
JET, MAIN (110)

09491-22016-000 0949122016000

£13,64

Unit Price Incl. Tax

DRAIN PLUG
SCREW, DRAIN

13247-24500-000 1324724500000

Not available

FLOAT/ NEEDLE VALVE ASSY

13250-44C00-000

Not available

O RING

13374-46710-000 1337446710000

£6,91

Unit Price Incl. Tax

O RING

13374-44080-000

13374-35C00-000

£4,93

Unit Price Incl. Tax

SCREW

02112-75163-000

02112-7516A-000

£3,10

Unit Price Incl. Tax

SCREW

02112-05127-000 0211205127000

£2,59

Unit Price Incl. Tax

SPRING

13271-44B00-000 1327144B00000

£7,76

Unit Price Incl. Tax

SPRING

13268-17C10-000 1326817C10000

£10,87

Unit Price Incl. Tax

CAP

13508-17C00-000 1350817C00000

£8,44

Unit Price Incl. Tax

CLIP

13671-33600-000

13671-05A40-000

£6,29

Unit Price Incl. Tax

SCREW
SCREW, DRAIN

13247-13A00-000 1324713A00000

£11,96

Unit Price Incl. Tax

COVER
COVER, DIAPHRAGM

13502-01D00-000 1350201D00000

£68,76

Unit Price Incl. Tax

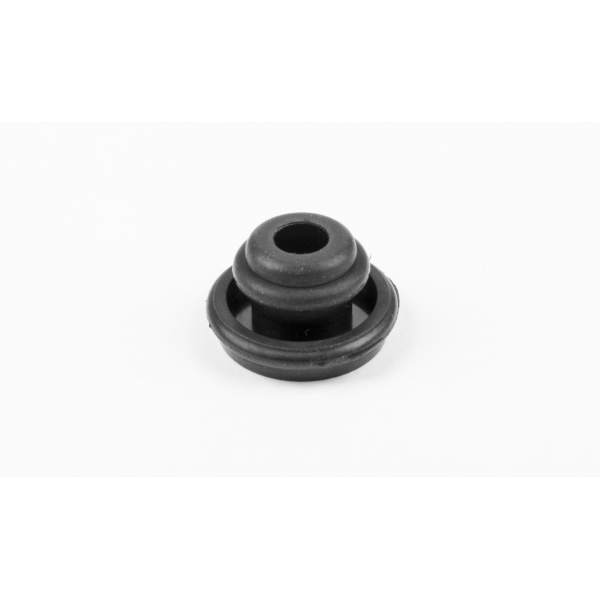

STARTER CAP

13418-17C00-000

13418-17C01-000

£6,79

Unit Price Incl. Tax

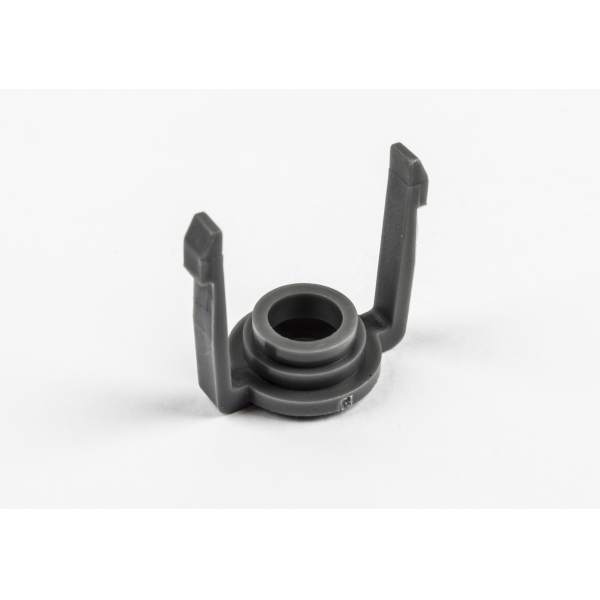

STARTER CAP
HOLDER

13418-17C10-000 1341817C10000

£20,81

Unit Price Incl. Tax

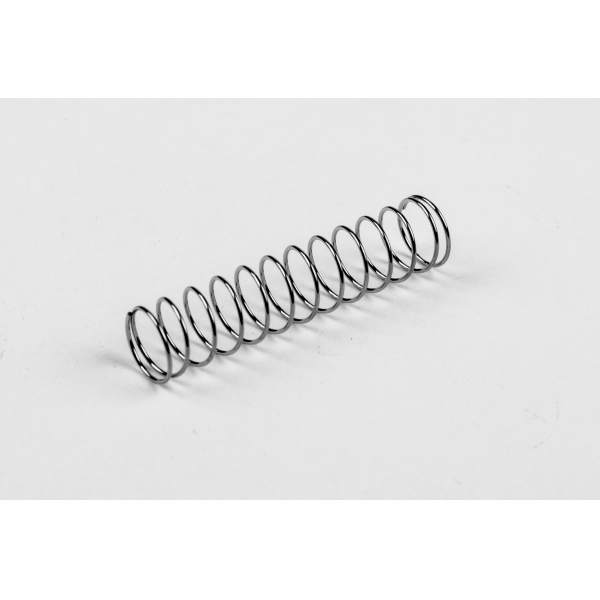

STARTER PLUNGER SPRING
SPRING

13417-09110-000 1341709110000

£9,16

Unit Price Incl. Tax

PLUNGER ASSY

13411-01D00-000 1341101D00000

Not available

PILOT SCREW
SCREW, AIR (1 1/2)

13279-47070-000 1327947070000

£10,06

Unit Price Incl. Tax

SPRING

13268-47070-000 1326847070000

£7,39

Unit Price Incl. Tax

WASHER

13291-29900-000 1329129900000

£2,84

Unit Price Incl. Tax

O RING, PILOT AIR SCREW

13295-29900-000

13295-29901-000

£4,48

Unit Price Incl. Tax

SCREW

02112-05164-000

02112-05163-000

£2,98

Unit Price Incl. Tax

PLUG

13357-34C00-000 1335734C00000

£8,44

Unit Price Incl. Tax

WASHER

08322-01053-000

08322-0105A-000

£3,00

Unit Price Incl. Tax

CLIP

13671-20C20-000 1367120C20000

Not available

AIR JET
JET, AIR (1.3)

09493-26004-000 0949326004000

£24,40

Unit Price Incl. Tax
