CARBURETOR (SEE NOTE) NOTE: MODEL K

CARBURETOR (MODEL L / M / N / P / R / S,MODEL L E17 ~F.NO.107606) FOR SUZUKI GSX-F 600 1991

CARBURETOR (GSX600FU2R / FU2S E22) REFER TO FIG.12D(1-D- 7) FOR MODEL T

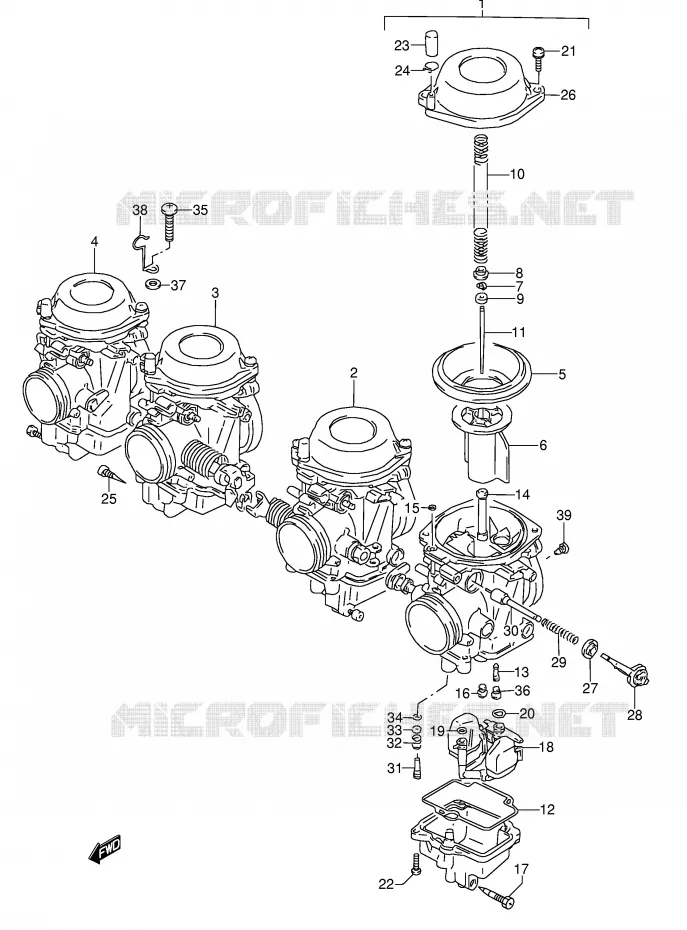

CARBURETOR (MODEL L/M/N/P/R/S,MODEL L E17 ~F.NO.107606) Suzuki MOTO 600 GSX-F 1991 GSX600FM(E2)
1
13201-44C00-000
CARBURETOR ASSY, LH

13201-44C00-000   1320144C00000

1320144C00000
Not available
1
CARBURETOR ASSY, LH

13201-44C30-000   1320144C30000

1320144C30000
Not available
1
CARBURETOR ASSY, LH

13201-44C40-000   1320144C40000

1320144C40000
Not available
1
CARBURETOR ASSY, LH

13201-44C60-000   1320144C60000

1320144C60000
Not available
1
CARBURETOR ASSY, LH

13201-44C80-000   1320144C80000

1320144C80000
Not available
1
CARBURETOR ASSY, LH

13201-44C90-000   1320144C90000

1320144C90000
Not available
2
CARBURETOR ASSY, ML

13202-44C00-000   1320244C00000

1320244C00000
Not available
2
CARBURETOR ASSY, ML

13202-44C30-000   1320244C30000

1320244C30000
Not available
2
CARBURETOR ASSY, ML

13202-44C40-000   1320244C40000

1320244C40000
Not available
2
CARBURETOR ASSY, ML

13202-44C60-000   1320244C60000

1320244C60000
Not available
2
CARBURETOR ASSY, ML

13202-44C80-000   1320244C80000

1320244C80000
Not available
2
CARBURETOR ASSY, ML

13202-44C90-000   1320244C90000

1320244C90000
Not available
3
13203-44C00-000
CARBURETOR ASSY, MR

13203-44C00-000   1320344C00000

1320344C00000
Not available
3
CARBURETOR ASSY, MR

13203-44C30-000   1320344C30000

1320344C30000
Not available
3
CARBURETOR ASSY, MR

13203-44C40-000   1320344C40000

1320344C40000
Not available
3
CARBURETOR ASSY, MR

13203-44C60-000   1320344C60000

1320344C60000
Not available
3
CARBURETOR ASSY, MR

13203-44C80-000   1320344C80000

1320344C80000
Not available
3
CARBURETOR ASSY, MR

13203-44C90-000   1320344C90000

1320344C90000
Not available
4
CARBURETOR ASSY, RH

13204-44C00-000   1320444C00000

1320444C00000
Not available
4
CARBURETOR ASSY, RH

13204-44C30-000   1320444C30000

1320444C30000
Not available
4
CARBURETOR ASSY, RH

13204-44C40-000   1320444C40000

1320444C40000
Not available
4
CARBURETOR ASSY, RH

13204-44C60-000   1320444C60000

1320444C60000
Not available
4
CARBURETOR ASSY, RH

13204-44C80-000   1320444C80000

1320444C80000
Not available
4
CARBURETOR ASSY, RH

13204-44C90-000   1320444C90000

1320444C90000
Not available
5
DIAPHRAM
DIAPHRAGM

13507-44B00-000   1350744B00000

1350744B00000

Unit Price Incl. Tax

5
DIAPHRAGM
DIAPHRAGM

13507-17C01-000   1350717C01000

1350717C01000
Not available
6
REORDER ROBINSONS
VALVE, PISTON

13501-01D00-000   1350101D00000

1350101D00000
Not available
7
E RING
E RING

13394-40D20-000   1339440D20000

1339440D20000

Unit Price Incl. Tax

8
WASHER<br />RING
WASHER
RING

13382-42A00-000   1338242A00000

1338242A00000

Unit Price Incl. Tax

9
RING NEEDLE JET<br />RING
RING NEEDLE JET
RING

13387-47010-000   1338747010000

1338747010000

Unit Price Incl. Tax

10
PLUNGER SPRING<br />SPRING
PLUNGER SPRING
SPRING

13417-42A00-000   1341742A00000

1341742A00000

Unit Price Incl. Tax

10
13417-44C80-000
SPRING

13417-44C80-000   1341744C80000

1341744C80000
Not available
11
JET NEEDLE 5FZ102-3
NEEDLE, JET (5FZ102-3)

13383-44C20-000   1338344C20000

1338344C20000
Not available
11
NEEDLE, JET (5F103-3)

13383-44C30-000   1338344C30000

1338344C30000
Not available
12
FL CHAMBER GASKET ASB<br />GASKET, FLOAT CHAMBER
FL CHAMBER GASKET ASB
GASKET, FLOAT CHAMBER

13258-44B00-000   1325844B00000

1325844B00000

Unit Price Incl. Tax

13
PILOT JET
JET, PILOT (32.5)

09492-32006-000   0949232006000

0949232006000

Unit Price Incl. Tax

14
09494-00669-000
DISCONTINUED

09494-00669-000   0949400669000

0949400669000
Not available
14
09494-00671-000
JET, NEEDLE (P-3)

09494-00671-000   0949400671000

0949400671000
Not available
15
O RING
O RING

13509-17C00-000   1350917C00000

1350917C00000

Unit Price Incl. Tax

16
MAIN JET<br />JET, MAIN (112.5)
MAIN JET
JET, MAIN (112.5)

09491-22015-000   0949122015000

0949122015000

Unit Price Incl. Tax

16
MAIN JET
JET, MAIN (110)

09491-22016-000   0949122016000

0949122016000

Unit Price Incl. Tax

17
DRAIN PLUG
SCREW, DRAIN

13247-24500-000   1324724500000

1324724500000
Not available
18
13250-44C00-000
.FLOAT/NEEDLE VALVE ASSY

13250-44C00-000   1325044C00000

1325044C00000
Not available
19
O RING
O RING

13374-46710-000   1337446710000

1337446710000

Unit Price Incl. Tax

20
13374-44080-000
..O RING

13374-44080-000   1337444080000

1337444080000
Not available
21
13602-34390-000
.SCREW

13602-34390-000   1360234390000

1360234390000
Not available
22
SCREW
SCREW

02112-05127-000   0211205127000

0211205127000

Unit Price Incl. Tax

23
CAP
CAP

13508-17C00-000   1350817C00000

1350817C00000

Unit Price Incl. Tax

24
13671-33600-000
.CLIP, RH

13671-33600-000   1367133600000

1367133600000
Not available
25
SCREW<br />SCREW, DRAIN
SCREW
SCREW, DRAIN

13247-13A00-000   1324713A00000

1324713A00000

Unit Price Incl. Tax

26
COVER
COVER, DIAPHRAGM

13502-01D00-000   1350201D00000

1350201D00000

Unit Price Incl. Tax

26
COVER, DIAPHRAGM

13502-45B10-000   1350245B10000

1350245B10000
Not available
26
COVER, DIAPHRAGM

13502-45B20-000   1350245B20000

1350245B20000
Not available
27
STARTER CAP<br />CAP, STARTER
STARTER CAP
CAP, STARTER

13418-17C00-000   1341817C00000

1341817C00000
Not available
28
STARTER CAP<br />HOLDER
STARTER CAP
HOLDER

13418-17C10-000   1341817C10000

1341817C10000

Unit Price Incl. Tax

29
STARTER PLUNGER SPRING<br />SPRING
STARTER PLUNGER SPRING
SPRING

13417-09110-000   1341709110000

1341709110000

Unit Price Incl. Tax

30
PLUNGER ASSY

13411-01D00-000   1341101D00000

1341101D00000
Not available
31
PILOT SCREW<br />SCREW, AIR (1 3/8)
PILOT SCREW
SCREW, AIR (1 3/8)

13279-47070-000   1327947070000

1327947070000

Unit Price Incl. Tax

32
SPRING
SPRING

13268-47070-000   1326847070000

1326847070000

Unit Price Incl. Tax

33
WASHER
WASHER

13291-29900-000   1329129900000

1329129900000

Unit Price Incl. Tax

34
O RING
O RING

13295-29900-000   1329529900000

1329529900000
Not available
35
02112-05164-000
SCREW

02112-05164-000   0211205164000

0211205164000
Not available
36
PLUG

13357-34C00-000   1335734C00000

1335734C00000

Unit Price Incl. Tax

37
13606-00A10-000
.WASHER

13606-00A10-000   1360600A10000

1360600A10000
Not available
38
CLIP

13671-20C20-000   1367120C20000

1367120C20000
Not available
39
AIR JET<br />JET, AIR (1.3)
AIR JET
JET, AIR (1.3)

09493-26004-000   0949326004000

0949326004000

Unit Price Incl. Tax

39
JET, AIR (1.55)

09493-31001-000   0949331001000

0949331001000

Unit Price Incl. Tax

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Suzuki 600 GSX-F 1991

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS
FRAME (MODEL J/K/L/M/N) for Suzuki GSX-F 600 1991

FRAME (MODEL J / K / L / M / N)
for Suzuki GSX-F 600 1991

FRAME (MODEL P/R/S/T) for Suzuki GSX-F 600 1991

FRAME (MODEL P / R / S / T)
for Suzuki GSX-F 600 1991

FOOTREST for Suzuki GSX-F 600 1991

FOOTREST
for Suzuki GSX-F 600 1991

FUEL TANK (MODEL J/K/L) for Suzuki GSX-F 600 1991

FUEL TANK (MODEL J / K / L)
for Suzuki GSX-F 600 1991

FUEL TANK (MODEL M/N) for Suzuki GSX-F 600 1991

FUEL TANK (MODEL M / N)
for Suzuki GSX-F 600 1991

FUEL TANK (MODEL P/R/S) for Suzuki GSX-F 600 1991

FUEL TANK (MODEL P / R / S)
for Suzuki GSX-F 600 1991

FUEL TANK (MODEL T) for Suzuki GSX-F 600 1991

FUEL TANK (MODEL T)
for Suzuki GSX-F 600 1991

FAIRING (MODEL J) for Suzuki GSX-F 600 1991

FAIRING (MODEL J)
for Suzuki GSX-F 600 1991

FAIRING (MODEL K) for Suzuki GSX-F 600 1991

FAIRING (MODEL K)
for Suzuki GSX-F 600 1991

FAIRING (MODEL L) for Suzuki GSX-F 600 1991

FAIRING (MODEL L)
for Suzuki GSX-F 600 1991

FAIRING (MODEL M) for Suzuki GSX-F 600 1991

FAIRING (MODEL M)
for Suzuki GSX-F 600 1991

FAIRING (MODEL N/P) for Suzuki GSX-F 600 1991

FAIRING (MODEL N / P)
for Suzuki GSX-F 600 1991

FAIRING (MODEL R/S) for Suzuki GSX-F 600 1991

FAIRING (MODEL R / S)
for Suzuki GSX-F 600 1991

FAIRING (MODEL T) for Suzuki GSX-F 600 1991

FAIRING (MODEL T)
for Suzuki GSX-F 600 1991

FRONT FENDER (MODEL J/K/L/M/N/P/R) for Suzuki GSX-F 600 1991

FRONT FENDER (MODEL J / K / L / M / N / P / R)
for Suzuki GSX-F 600 1991

FRONT FENDER (MODEL S/T) for Suzuki GSX-F 600 1991

FRONT FENDER (MODEL S / T)
for Suzuki GSX-F 600 1991

REAR FENDER (MODEL J/K/L/M/N/P/R) for Suzuki GSX-F 600 1991

REAR FENDER (MODEL J / K / L / M / N / P / R)
for Suzuki GSX-F 600 1991

REAR FENDER (MODEL S) for Suzuki GSX-F 600 1991

REAR FENDER (MODEL S)
for Suzuki GSX-F 600 1991

REAR FENDER (MODEL T) for Suzuki GSX-F 600 1991

REAR FENDER (MODEL T)
for Suzuki GSX-F 600 1991

FAIRING (MODEL J) for Suzuki GSX-F 600 1991

FAIRING (MODEL J)
for Suzuki GSX-F 600 1991

FAIRING (MODEL K 24V,28V) for Suzuki GSX-F 600 1991

FAIRING (MODEL K 24V,28V)
for Suzuki GSX-F 600 1991

FAIRING (MODEL K 33J) for Suzuki GSX-F 600 1991

FAIRING (MODEL K 33J)
for Suzuki GSX-F 600 1991

FAIRING (MODEL L) for Suzuki GSX-F 600 1991

FAIRING (MODEL L)
for Suzuki GSX-F 600 1991

FAIRING (MODEL M 28V) for Suzuki GSX-F 600 1991

FAIRING (MODEL M 28V)
for Suzuki GSX-F 600 1991

FAIRING (MODEL M 0JW) for Suzuki GSX-F 600 1991

FAIRING (MODEL M 0JW)
for Suzuki GSX-F 600 1991

FAIRING (MODEL N) for Suzuki GSX-F 600 1991

FAIRING (MODEL N)
for Suzuki GSX-F 600 1991

FAIRING (MODEL P) for Suzuki GSX-F 600 1991

FAIRING (MODEL P)
for Suzuki GSX-F 600 1991

FAIRING (MODEL R) for Suzuki GSX-F 600 1991

FAIRING (MODEL R)
for Suzuki GSX-F 600 1991

FAIRING (MODEL S) for Suzuki GSX-F 600 1991

FAIRING (MODEL S)
for Suzuki GSX-F 600 1991

FAIRING (MODEL T) for Suzuki GSX-F 600 1991

FAIRING (MODEL T)
for Suzuki GSX-F 600 1991

INSTALLATION PARTS for Suzuki GSX-F 600 1991

INSTALLATION PARTS
for Suzuki GSX-F 600 1991

SEAT (MODEL J/K/L/M) for Suzuki GSX-F 600 1991

SEAT (MODEL J / K / L / M)
for Suzuki GSX-F 600 1991

SEAT (MODEL N/P/R/S/T) for Suzuki GSX-F 600 1991

SEAT (MODEL N / P / R / S / T)
for Suzuki GSX-F 600 1991

BACKREST (MODEL J/K/L/M/N/P) for Suzuki GSX-F 600 1991

BACKREST (MODEL J / K / L / M / N / P)
for Suzuki GSX-F 600 1991

BACKREST (MODEL R/S/T) for Suzuki GSX-F 600 1991

BACKREST (MODEL R / S / T)
for Suzuki GSX-F 600 1991

CYLINDER HEAD COVER for Suzuki GSX-F 600 1991

CYLINDER HEAD COVER
for Suzuki GSX-F 600 1991

CYLINDER HEAD for Suzuki GSX-F 600 1991

CYLINDER HEAD
for Suzuki GSX-F 600 1991

CYLINDER for Suzuki GSX-F 600 1991

CYLINDER
for Suzuki GSX-F 600 1991

CRANKCASE for Suzuki GSX-F 600 1991

CRANKCASE
for Suzuki GSX-F 600 1991

CRANKCASE COVER for Suzuki GSX-F 600 1991

CRANKCASE COVER
for Suzuki GSX-F 600 1991

OIL PAN for Suzuki GSX-F 600 1991

OIL PAN
for Suzuki GSX-F 600 1991

OIL PUMP for Suzuki GSX-F 600 1991

OIL PUMP
for Suzuki GSX-F 600 1991

CRANKSHAFT for Suzuki GSX-F 600 1991

CRANKSHAFT
for Suzuki GSX-F 600 1991

STARTER MOTOR CLUTCH for Suzuki GSX-F 600 1991

STARTER MOTOR CLUTCH
for Suzuki GSX-F 600 1991

CAM SHAFT VALVE (MODEL J/K/L/M) for Suzuki GSX-F 600 1991

CAM SHAFT - VALVE (MODEL J / K / L / M)
for Suzuki GSX-F 600 1991

CAM SHAFT / VALVE (MODEL N/P/R/S/T) for Suzuki GSX-F 600 1991

CAM SHAFT / VALVE (MODEL N / P / R / S / T)
for Suzuki GSX-F 600 1991

TIMING (MODEL J/K/L/M/N/P/R/S) for Suzuki GSX-F 600 1991

TIMING (MODEL J / K / L / M / N / P / R / S)
for Suzuki GSX-F 600 1991

TIMING (MODEL T) for Suzuki GSX-F 600 1991

TIMING (MODEL T)
for Suzuki GSX-F 600 1991

CARBURETOR (MODEL J) for Suzuki GSX-F 600 1991

CARBURETOR (MODEL J)
for Suzuki GSX-F 600 1991

CARBURETOR (SEE NOTE) for Suzuki GSX-F 600 1991

CARBURETOR (SEE NOTE)
for Suzuki GSX-F 600 1991

CARBURETOR (MODEL L/M/N/P/R/S,MODEL L E17 ~F.NO.107606) for Suzuki GSX-F 600 1991

CARBURETOR (MODEL L / M / N / P / R / S,MODEL L E17 ~F.NO.107606)
for Suzuki GSX-F 600 1991

CARBURETOR (GSX600FU2R/FU2S E22) for Suzuki GSX-F 600 1991

CARBURETOR (GSX600FU2R / FU2S E22)
for Suzuki GSX-F 600 1991

CARBURETOR (MODEL T) for Suzuki GSX-F 600 1991

CARBURETOR (MODEL T)
for Suzuki GSX-F 600 1991

CARBURETOR FITTINGS (SEE NOTE) for Suzuki GSX-F 600 1991

CARBURETOR FITTINGS (SEE NOTE)
for Suzuki GSX-F 600 1991

AIR FILTER (SEE NOTE) for Suzuki GSX-F 600 1991

AIR FILTER (SEE NOTE)
for Suzuki GSX-F 600 1991

AIR FILTER (SEE NOTE 1) for Suzuki GSX-F 600 1991

AIR FILTER (SEE NOTE 1)
for Suzuki GSX-F 600 1991

MUFFLER (MODEL J) for Suzuki GSX-F 600 1991

MUFFLER (MODEL J)
for Suzuki GSX-F 600 1991

MUFFLER (MODEL K/L/M/N/P/R/S) for Suzuki GSX-F 600 1991

MUFFLER (MODEL K / L / M / N / P / R / S)
for Suzuki GSX-F 600 1991

MUFFLER (MODEL T) for Suzuki GSX-F 600 1991

MUFFLER (MODEL T)
for Suzuki GSX-F 600 1991

OIL COOLER for Suzuki GSX-F 600 1991

OIL COOLER
for Suzuki GSX-F 600 1991

FUEL EVAP SYSTEM (MODEL K/L/M/N E18) for Suzuki GSX-F 600 1991

FUEL EVAP SYSTEM (MODEL K / L / M / N E18)
for Suzuki GSX-F 600 1991

CLUTCH (MODEL J/K/L/M) for Suzuki GSX-F 600 1991

CLUTCH (MODEL J / K / L / M)
for Suzuki GSX-F 600 1991

CLUTCH (MODEL N/P/R/S/T) for Suzuki GSX-F 600 1991

CLUTCH (MODEL N / P / R / S / T)
for Suzuki GSX-F 600 1991

TRANSMISSION for Suzuki GSX-F 600 1991

TRANSMISSION
for Suzuki GSX-F 600 1991

GEAR SHIFTING ASSY for Suzuki GSX-F 600 1991

GEAR SHIFTING ASSY
for Suzuki GSX-F 600 1991

ALTERNATOR for Suzuki GSX-F 600 1991

ALTERNATOR
for Suzuki GSX-F 600 1991

GENERATOR SENSOR (MODEL J/K/L/M/N/P/R/S) for Suzuki GSX-F 600 1991

GENERATOR SENSOR (MODEL J / K / L / M / N / P / R / S)
for Suzuki GSX-F 600 1991

GENERATOR SENSOR (MODEL T) for Suzuki GSX-F 600 1991

GENERATOR SENSOR (MODEL T)
for Suzuki GSX-F 600 1991

FUEL COCK (MODEL J/K,GSX600FUL/FU2L/FUM/FU2M E22) for Suzuki GSX-F 600 1991

FUEL COCK (MODEL J / K,GSX600FUL / FU2L / FUM / FU2M E22)
for Suzuki GSX-F 600 1991

FUEL COCK (GSX600FL/FM E22,MODEL L/M/N/P/R/S) for Suzuki GSX-F 600 1991

FUEL COCK (GSX600FL / FM E22,MODEL L / M / N / P / R / S)
for Suzuki GSX-F 600 1991

FUEL COCK (MODEL T) for Suzuki GSX-F 600 1991

FUEL COCK (MODEL T)
for Suzuki GSX-F 600 1991

Suzuki 600 GSX-F 1991

Choose your Suzuki 600 1991 GSX-F model

600 GSX-F 1991 GSX600FM(E2)

Suzuki GSX-F

Displacement: 600 cc
Year: 1991
Model code GSX600FM(E2)
Drapeau UNITED KINGDOM
United Kingdom

Genuine maintenance parts

Battery
New and original manufacturer parts
Official Suzuki price
International delivery
Secure payment
Expert customer service
Other brands parts catalogues
