CRANKCASE

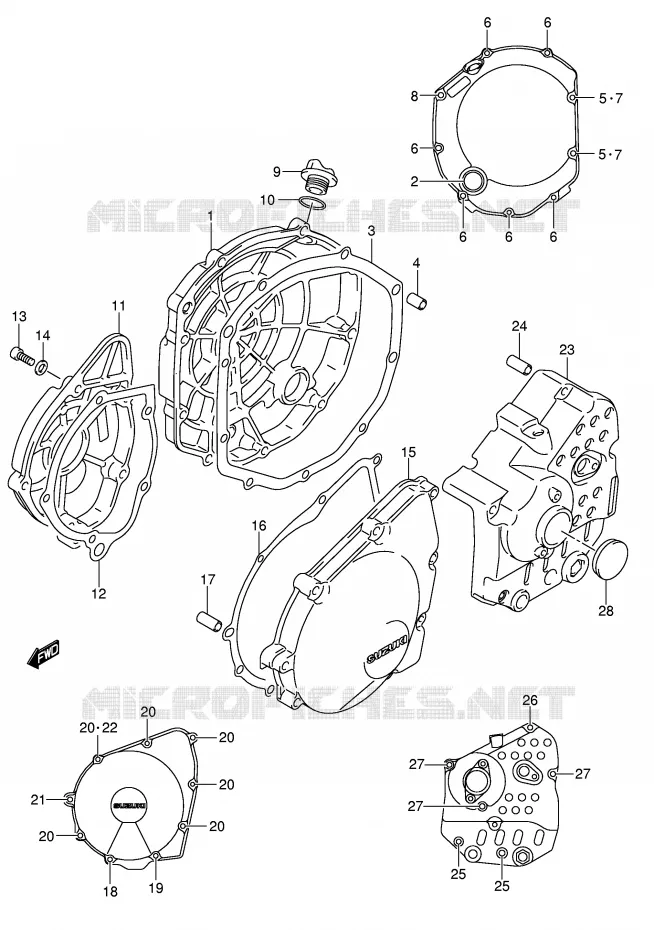

CRANKCASE COVER FOR SUZUKI BANDIT 650 2006

OIL PAN

(1) 11340-38G00-000

COVER, CLUTCH

(2) 11971-33210-000

LENS
LENS, OIL LEVEL

(3) 11482-27A20-000

CLUTCH COVER GASKET
GASKET, CLUTCH COVER

(4) 04211-09189-000

(5) 09168-06023-000

GASKET

(5) 09168-06023-000

GASKET

(6) 09106-06090-000

BOLT CLAMP
BOLT

(6) 09106-06090-000

BOLT CLAMP
BOLT

(6) 09106-06090-000

BOLT CLAMP
BOLT

(7) 09106-06091-000

BOLT

(7) 09106-06091-000

BOLT

(8) 09106-06092-000

BOLT

(9) 11971-25D00-000

PLUG, ENGINE OIL FILLER

(10) 09280-17003-000

O RING
O RING (D:3.1,ID:16.8)

(11) 11381-38G00-000

COVER, SIGNAL GENERATOR

(12) 11491-27A30-000

GASKET

(13) 09106-06094-000

BOLT

(14) 09168-06023-000

GASKET

(15) 11351-38G00-000

COVER, STARTER GEAR

(16) 11483-27A20-000

GEAR COVER GASKET
GASKET, GEAR COVER

(17) 09206-11007-000

PIN CRANKCASE
PIN

(18) 09106-06115-000

BOLT

(19) 09106-06116-000

BOLT

(20) 09106-06090-000

BOLT CLAMP
BOLT

(20) 09106-06090-000

BOLT CLAMP
BOLT

(20) 09106-06090-000

BOLT CLAMP
BOLT

(20) 09106-06090-000

BOLT CLAMP
BOLT

(20) 09106-06090-000

BOLT CLAMP
BOLT

(20) 09106-06090-000

BOLT CLAMP
BOLT

(21) 09106-06093-000

BOLT ST GR COVER
BOLT

(22) 09168-06023-000

GASKET

(23) 11361-38G00-000

COVER, ENGINE SPROCKET

(24) 04211-09129-000

(25) 09106-06092-000

BOLT

(25) 09106-06092-000

BOLT

(26) 09106-06109-000

BOLT

(27) 09106-06111-000

BOLT

(27) 09106-06111-000

BOLT

(27) 09106-06111-000

BOLT

(28) 09250-30003-000

CAP
CAP, CLUTCH RELEASE

	Part number	Description	Qty
# 1	11340-38G00-000 1134038G00000 1134038G00000	COVER, CLUTCH	Not available	£0,00
# 2	11971-33210-000 1197133210000 1197133210000	LENS LENS, OIL LEVEL	£28,88
# 3	11482-27A20-000 1148227A20000 1148227A20000	CLUTCH COVER GASKET GASKET, CLUTCH COVER	£15,80
# 4	04211-09189-000 0421109189000 0421109189000	PIN	£2,33
# 5	09168-06023-000 0916806023000 0916806023000	GASKET	£1,55
# 6	09106-06090-000 0910606090000 0910606090000	BOLT CLAMP BOLT	£4,85
# 7	09106-06091-000 0910606091000 0910606091000	BOLT	£5,46
# 8	09106-06092-000 0910606092000 0910606092000	BOLT	£5,81
# 9	11971-25D00-000 1197125D00000 1197125D00000	PLUG, ENGINE OIL FILLER	£7,75
# 10	09280-17003-000 0928017003000 0928017003000	O RING O RING (D:3.1, ID:16.8)	£1,52
# 11	11381-38G00-000 1138138G00000 1138138G00000	COVER, SIGNAL GENERATOR	£88,03
# 12	11491-27A30-000 1149127A30000 1149127A30000	GASKET	£9,70
# 13	09106-06094-000 0910606094000 0910606094000	BOLT	£5,44
# 14	09168-06023-000 0916806023000 0916806023000	GASKET	£1,55
# 15	11351-38G00-000 1135138G00000 1135138G00000	COVER, STARTER GEAR	£114,83
# 16	11483-27A20-000 1148327A20000 1148327A20000	GEAR COVER GASKET GASKET, GEAR COVER	£12,49
# 17	09206-11007-000 0920611007000 0920611007000	PIN CRANKCASE PIN	£3,40
# 18	09106-06115-000 0910606115000 0910606115000	BOLT	£5,96
# 19	09106-06116-000 0910606116000 0910606116000	BOLT	£5,46
# 20	09106-06090-000 0910606090000 0910606090000	BOLT CLAMP BOLT	£4,85
# 21	09106-06093-000 0910606093000 0910606093000	BOLT ST GR COVER BOLT	£5,81
# 22	09168-06023-000 0916806023000 0916806023000	GASKET	£1,55
# 23	11361-38G00-000 1136138G00000 1136138G00000	COVER, ENGINE SPROCKET	Not available	£0,00
# 24	04211-09129-000 0421109129000 0421109129000	PIN	£2,27
# 25	09106-06092-000 0910606092000 0910606092000	BOLT	£5,81
# 26	09106-06109-000 0910606109000 0910606109000	BOLT	Not available	£0,00
# 27	09106-06111-000 0910606111000 0910606111000	BOLT	£6,50
# 28	09250-30003-000 0925030003000 0925030003000	CAP CAP, CLUTCH RELEASE	£5,06

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the CRANKCASE COVER of your Suzuki BANDIT 650 of BANDIT. Let us know if you have any questions.
