CARBURETOR (MODEL M) REFER TO FIG.11A(C-4) FOR MODEL N/P/R/S

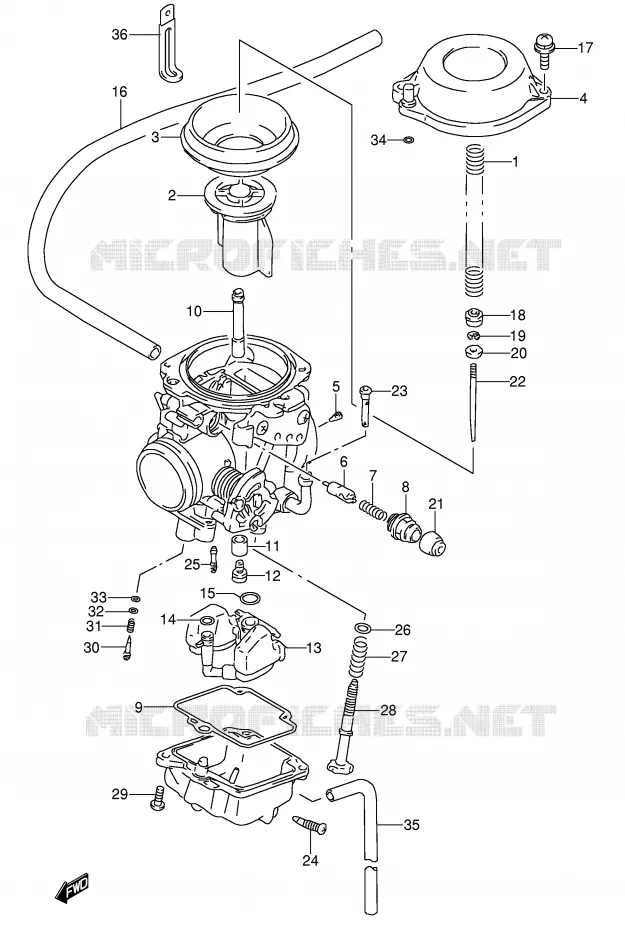

CARBURETOR (MODEL N / P / R / S) FOR SUZUKI DR 650 1993

CARBURETOR (DR650RSEUR / RSEUS E22) REFER TO FIG.11C(C-8) FOR MODEL T

Item numbers

SPRING

13417-17D00-000 1341717D00000

£14,74

Unit Price Incl. Tax

PISTON VALVE
VALVE, PISTON

13501-12D00-000 1350112D00000

Not available

13507-07D00-000
.DIAPHRAGM

13507-07D00-000 1350707D00000

Not available

DIAPHRAGM

13507-07D01-000 1350707D01000

Not available

DIAPHRAGM COVER
COVER, DIAPHRAGM

13502-12D00-000 1350212D00000

Not available

COVER, DIAPHRAGM

13502-12D10-000 1350212D10000

Not available

AIR JET
JET, PILOT AIR (1.3)

09493-26004-000 0949326004000

£31,56

Unit Price Incl. Tax

09493-28007-000
.JET, PILOT AIR (1.4)

09493-28007-000 0949328007000

Not available

PLUNGER

13411-12D00-000 1341112D00000

£48,48

Unit Price Incl. Tax

PLUNGER SPRING
SPRING

13417-22010-000 1341722010000

£7,66

Unit Price Incl. Tax

STARTER HOLDER
HOLDER, GUIDE

13418-43410-000 1341843410000

£15,04

Unit Price Incl. Tax

FL CHAMBER GASKET ASB
GASKET, FLOAT CHAMBER

13258-44B00-000 1325844B00000

£10,50

Unit Price Incl. Tax

JET, NEEDLE (X-9)

09494-00749-000 0949400749000

Not available

REORDER ROBINSONS
RING

13331-07D00-000 1333107D00000

£11,98

Unit Price Incl. Tax

MAIN JET
JET, MAIN (140)

09491-28010-000 0949128010000

£15,92

Unit Price Incl. Tax

FLOAT/NEEDLE VALVE ASSY

13250-13D00-000 1325013D00000

Not available

13250-44C00-000
.FLOAT/NEEDLE VALVE ASSY

13250-44C00-000 1325044C00000

Not available

O RING

13374-46710-000 1337446710000

£8,64

Unit Price Incl. Tax

13374-44080-000
..O RING

13374-44080-000 1337444080000

Not available

HOSE
HOSE (6.5X11.5X600)

09354-65113-600 0935465113600

£16,80

Unit Price Incl. Tax

13602-34390-000
.SCREW

13602-34390-000 1360234390000

Not available

RING

13331-12D00-000 1333112D00000

£11,98

Unit Price Incl. Tax

E RING

13394-31210-000 1339431210000

£9,23

Unit Price Incl. Tax

RING

13387-07D00-000 1338707D00000

£11,66

Unit Price Incl. Tax

CAP

13681-04010-000 1368104010000

£6,88

Unit Price Incl. Tax

JET NEEDLE
NEEDLE, JET (6H13-3)

13383-12D20-000 1338312D20000

Not available

FILTER

13236-12C00-000 1323612C00000

£6,35

Unit Price Incl. Tax

SCREW
SCREW, DRAIN

13247-13A00-000 1324713A00000

£15,04

Unit Price Incl. Tax

REORDER ROBINSONS
JET, PILOT (50)

09492-50022-000 0949250022000

Not available

WASHER STARTER PLUNGER
WASHER

13427-38300-000 1342738300000

£3,66

Unit Price Incl. Tax

SPRING

13271-24D00-000 1327124D00000

£12,46

Unit Price Incl. Tax

ADJUSTER

13267-13D01-000 1326713D01000

£49,18

Unit Price Incl. Tax

SCREW

02112-05167-000 0211205167000

£3,29

Unit Price Incl. Tax

PILOT SCREW
SCREW, PILOT (1 1/8)

13269-37110-000 1326937110000

£25,76

Unit Price Incl. Tax

SPRING

13268-47070-000 1326847070000

£9,31

Unit Price Incl. Tax

WASHER

13291-29900-000 1329129900000

£3,50

Unit Price Incl. Tax

O RING

13295-29900-000 1329529900000

Not available

O RING

13278-02340-000 1327802340000

£1,63

Unit Price Incl. Tax

13684-18900-000
.HOSE, OVER FLOW (3X5X500)

13684-18900-000 1368418900000

Not available

09404-06402-000
CLAMP (L:60) REFER TO FIG.6A (C-4) FOR MODE

09404-06402-000 0940406402000

Not available

99x

CARBURETOR ASSY

13200-13D50-000 1320013D50000

Not available

99x

CARBURETOR ASSY

13200-13D60-000 1320013D60000

Not available

99x

CARBURETOR ASSY

13200-13D70-000 1320013D70000

Not available

99x

CARBURETOR ASSY

13200-13D80-000 1320013D80000

Not available

99x

CARBURETOR ASSY

13200-13DB0-000 1320013DB0000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the CARBURETOR (MODEL N/P/R/S) of your Suzuki DR 650 RSE of DR. Let us know if you have any questions.
