REAR FENDER

IGNITION FOR SUZUKI DR 650 1994

BATTERY

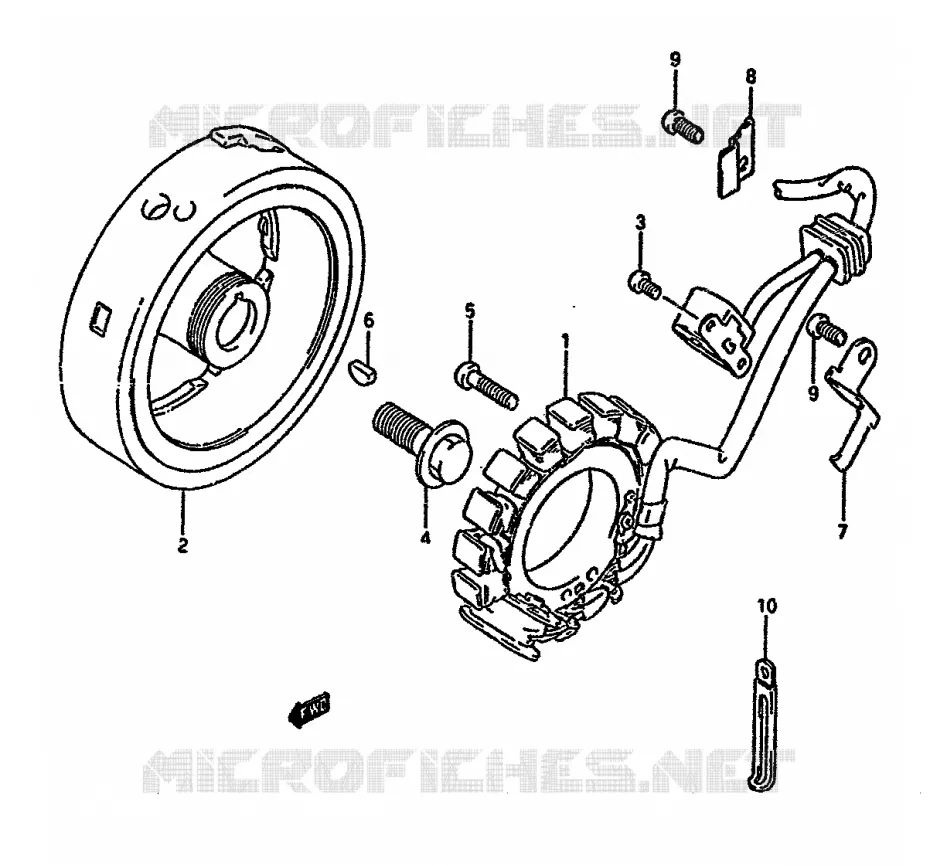

IGNITION Suzuki MOTO 650 DR 1994 DR650RR(N/P/R)

1

STATOR
STATOR ASSY

32101-12D00-000 3210112D00000

Not available

2

ROTOR

32102-12D00-000 3210212D00000

Not available

3

02112-05128-000
SCREW, THROTTLE CABLE

02112-05128-000 0211205128000

Not available

4

BOLT

09103-14001-000 0910314001000

£20,06

Unit Price Incl. Tax

5

SCREW

02112-06257-000 0211206257000

£2,30

Unit Price Incl. Tax

6

08341-31049-000
4 MM WOODRUFF KEY

08341-31049-000 0834131049000

Not available

7

REORDER ROBINSONS
CLAMP

32371-14A00-000 3237114A00000

Not available

8

CLAMP

32371-12D10-000 3237112D10000

Not available

9

02112-06108-000
SCREW FIG.28 (E-5) : GSX1100ESD

02112-06108-000 0211206108000

Not available

10

09404-06402-000
CLAMP (L:60) REFER TO FIG.6A (C-4) FOR MODE

09404-06402-000 0940406402000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the IGNITION of your Suzuki DR 650 R of DR. Let us know if you have any questions.
