TIMING

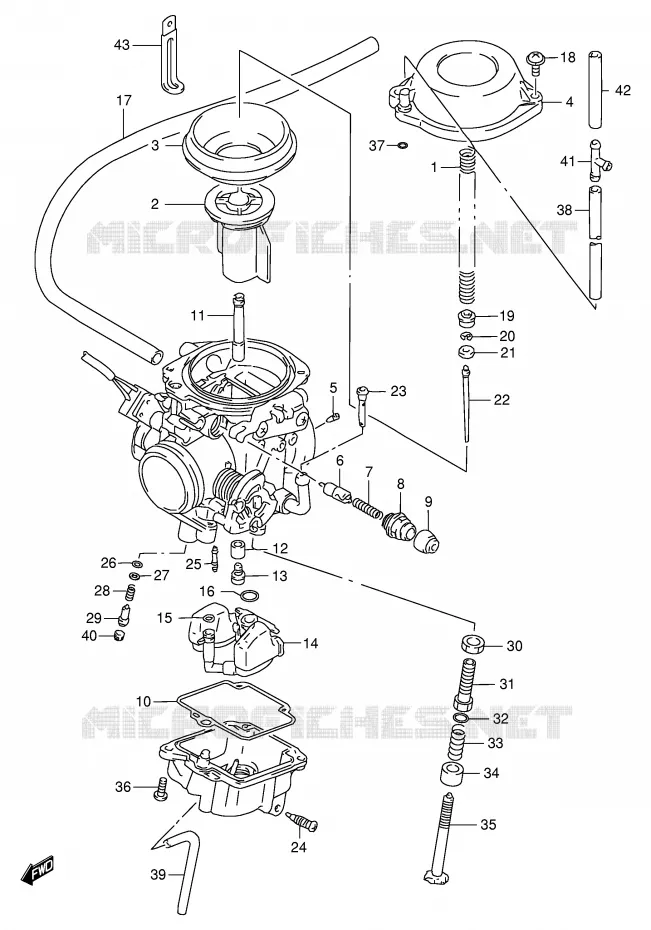

CARBURETOR FOR SUZUKI DR 650 1996

AIR FILTER

Item numbers

SPRING

13417-17D00-000 1341717D00000

£14,74

Unit Price Incl. Tax

VALVE, PISTON DR650SE
VALVE, PISTON

13501-32E00-000 1350132E00000

£99,02

Unit Price Incl. Tax

VALVE, PISTON DR650SEU
VALVE, PISTON

13501-32E10-000 1350132E10000

Not available

DIAPHRAGM

13507-07D01-000 1350707D01000

Not available

DIAPHRAGM COVER
COVER, DIAPHRAGM

13502-41C00-000 1350241C00000

£83,48

Unit Price Incl. Tax

COVER, DIAPHRAGM

13502-12D10-000 1350212D10000

Not available

JET AIR
JET, PILOT AIR (1.0)

09493-20007-000 0949320007000

£17,71

Unit Price Incl. Tax

PLUNGER
PLUNGER ASSY

13411-12D00-000 1341112D00000

£48,48

Unit Price Incl. Tax

PLUNGER SPRING
SPRING

13417-22010-000 1341722010000

£7,66

Unit Price Incl. Tax

STARTER HOLDER
HOLDER, GUIDE

13418-43410-000 1341843410000

£15,04

Unit Price Incl. Tax

CAP

13681-04010-000 1368104010000

£6,88

Unit Price Incl. Tax

FL CHAMBER GASKET ASB
GASKET, FLOAT CHAMBER

13258-44B00-000 1325844B00000

£10,50

Unit Price Incl. Tax

NEEDLE JET
JET, NEEDLE (Y-5M)

09494-00884-000 0949400884000

£90,20

Unit Price Incl. Tax

REORDER ROBINSONS
RING

13331-07D00-000 1333107D00000

£11,98

Unit Price Incl. Tax

MAIN JET
JET, MAIN (137.5)

09491-27010-000 0949127010000

£17,47

Unit Price Incl. Tax

MAIN JET
JET, MAIN (140)

09491-28010-000 0949128010000

£15,92

Unit Price Incl. Tax

FLOAT
FLOAT/NEEDLE VALVE ASSY

13250-12EH0-000 1325012EH0000

£143,05

Unit Price Incl. Tax

13250-12E00-000
.FLOAT/NEEDLE VALVE ASSY

13250-12E00-000 1325012E00000

Not available

O RING

13374-46710-000 1337446710000

£8,64

Unit Price Incl. Tax

O RING

13374-35C00-000 1337435C00000

£6,83

Unit Price Incl. Tax

HISE (6.5X10.5X275)
HOSE (6.5X10.5X275)

13683-32E00-000 1368332E00000

£21,14

Unit Price Incl. Tax

02112-75163-000
SCREW

02112-75163-000 0211275163000

Not available

RING

13331-12D00-000 1333112D00000

£11,98

Unit Price Incl. Tax

E RING

13394-31210-000 1339431210000

£9,23

Unit Price Incl. Tax

RING

13387-07D00-000 1338707D00000

£11,66

Unit Price Incl. Tax

JET NEEDLE
NEEDLE, JET (6F19-3)

13383-32E00-000 1338332E00000

£39,53

Unit Price Incl. Tax

NEEDLE, JET(6H21)
NEEDLE, JET (6H21-4)

13383-32E20-000 1338332E20000

£29,04

Unit Price Incl. Tax

FILTER

13236-12C00-000 1323612C00000

£6,35

Unit Price Incl. Tax

DRAIN PLUG
SCREW, DRAIN

13247-02340-000 1324702340000

£10,40

Unit Price Incl. Tax

PILOT JET
JET, PILOT (42.5)

09492-42010-000 0949242010000

£19,94

Unit Price Incl. Tax

O RING

13295-29900-000 1329529900000

Not available

WASHER

13291-29900-000 1329129900000

£3,50

Unit Price Incl. Tax

SPRING

13268-47070-000 1326847070000

£9,31

Unit Price Incl. Tax

PILOT SCREW
SCREW, PILOT (1, 1/2)

13279-47070-000 1327947070000

£12,64

Unit Price Incl. Tax

NUT

13607-37010-000 1360737010000

Not available

ADJUSTER

13267-31D00-000 1326731D00000

£39,16

Unit Price Incl. Tax

WASHER

13615-43010-000 1361543010000

£5,89

Unit Price Incl. Tax

SPRING

13271-33C00-000 1327133C00000

£10,58

Unit Price Incl. Tax

RING

13432-95210-000 1343295210000

£8,15

Unit Price Incl. Tax

ADJUSTER

13267-31D10-000 1326731D10000

£31,69

Unit Price Incl. Tax

13601-05148-000
SCREW 5X14

13601-05148-000 1360105148000

Not available

O RING

13278-02340-000 1327802340000

£1,63

Unit Price Incl. Tax

HOSE
HOSE (4.5X8.5X600)

09355-45855-600 0935545855600

£12,04

Unit Price Incl. Tax

HOSE (3X5X425)
HOSE (3X5X450)

13684-32E10-000 1368432E10000

£16,04

Unit Price Incl. Tax

13684-32E00-000
HOSE (3X5X425)

13684-32E00-000 1368432E00000

Not available

PLUG

13281-05A00-000 1328105A00000

£10,13

Unit Price Incl. Tax

3 WAY CONNECTOR
NIPPLE

09367-06002-000 0936706002000

£4,70

Unit Price Incl. Tax

HOSE
HOSE (4.5X8.5X600)

09355-45855-600 0935545855600

£12,04

Unit Price Incl. Tax

CLAMP L 80
CLAMP, AIR TUBE

09404-06432-000 0940406432000

£2,18

Unit Price Incl. Tax

99x

CARBURETOR DR650SE
CARBURETOR ASSY

13200-32E31-000 1320032E31000

£653,54

Unit Price Incl. Tax

99x

CARBURETOR DR650SEU
CARBURETOR ASSY

13200-32E40-000 1320032E40000

£1 208,51

Unit Price Incl. Tax

99x

13200-32E00-000
CARBURETOR ASSY

13200-32E00-000 1320032E00000

Not available

99x

CARBURETOR ASSY

13200-32E20-000 1320032E20000

Not available

99x

CARBURETOR ASSY

13200-32E80-000 1320032E80000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the CARBURETOR of your Suzuki DR 650 SE of DR. Let us know if you have any questions.
