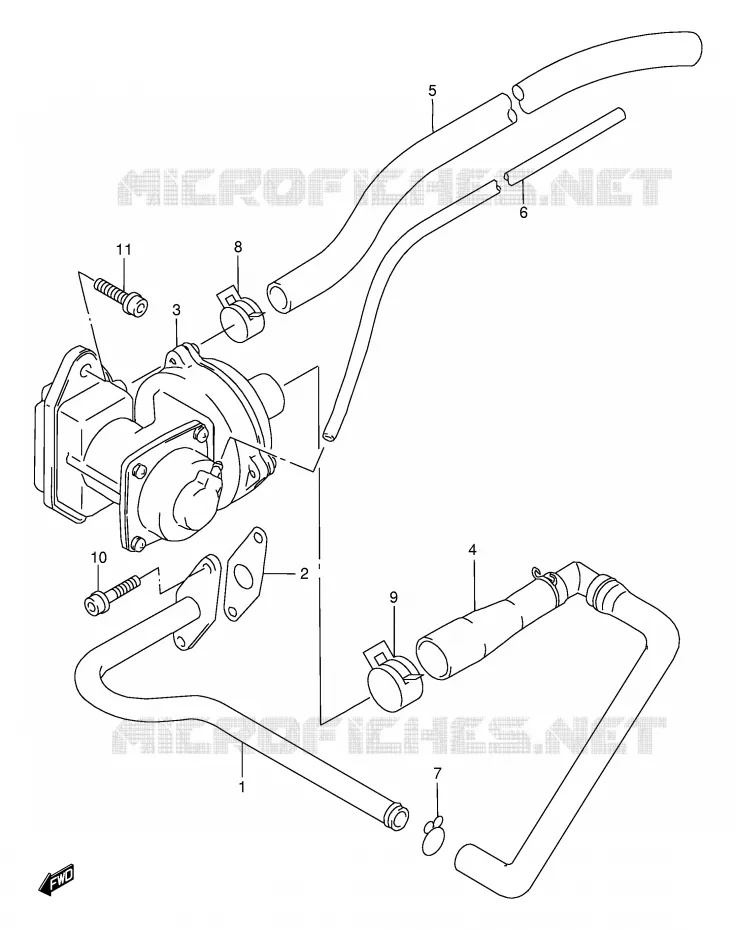

ANTI POLLUTION SYSTEM (E18) FOR SUZUKI DR 650 1997

CLUTCH

(1) 18410-32E00-000

PIPE COMP,2ND AI
PIPE, 2ND AIR

(1) 18410-32E10-000

PIPE, 2ND AIR

(2) 18441-45C01-000

2ND AIR PIPE GASKET
GASKET

(3) 18450-14D00-000

VALVE ASSY,2ND AIR REED

(4) 18460-32E00-000

HOSE ASSY,AIR HO
HOSE ASSY, 2ND AIR

(5) 09352-12164-600

HOSE,12X16X600
HOSE, 2ND AIR INLET

(6) 09355-40805-600

HOSE
HOSE, 2ND AIR VACUUM

(7) 09401-13417-000

CLIP
CLIP, 2ND AIR HOSE

(8) 09401-15404-000

CLIP

(9) 09401-23403-000

AIR BYPASS CLIP
CLIP

(9) 09401-22405-000

CLIP

(10) 07120-06167-000

BOLT

(11) 07120-0620B-000

SCREW
BOLT

	Part number	Description	Qty
# 1	18410-32E00-000 1841032E00000 1841032E00000	PIPE COMP, 2ND AI PIPE, 2ND AIR	Not available	£0,00
# 1	18410-32E10-000 1841032E10000 1841032E10000	PIPE, 2ND AIR	Not available	£0,00
# 2	18441-45C00-000 18441-45C01-000 1844145C00000	2ND AIR PIPE GASKET GASKET	£11,68
# 3	18450-14D00-000 1845014D00000 1845014D00000	VALVE ASSY, 2ND AIR REED	Not available	£0,00
# 4	18460-32E00-000 1846032E00000 1846032E00000	HOSE ASSY, AIR HO HOSE ASSY, 2ND AIR	Not available	£0,00
# 5	09352-12163-600 09352-12164-600 0935212163600	HOSE, 12X16X600 HOSE, 2ND AIR INLET	£15,70
# 6	09359-40701-600 09355-40805-600 0935940701600	HOSE HOSE, 2ND AIR VACUUM	£10,99
# 7	09401-13413-000 09401-13417-000 0940113413000	CLIP CLIP, 2ND AIR HOSE	£3,04
# 8	09401-15404-000 0940115404000 0940115404000	CLIP	£3,00
# 9	09401-22404-000 09401-22405-000 0940122404000	CLIP	£5,39
# 9	09401-23403-000 0940123403000 0940123403000	AIR BYPASS CLIP CLIP	£6,49
# 10	07120-06163-000 07120-06167-000 0712006163000	BOLT	£4,52
# 11	07120-06203-000 07120-0620B-000 0712006203000	SCREW BOLT	£3,83

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the ANTI POLLUTION SYSTEM (E18) of your Suzuki DR 650 SE of DR. Let us know if you have any questions.
