CYLINDER

CASING FOR SUZUKI SV 650 2017

CASING

Item numbers
CASING Suzuki MOTO 650 SV 2017 SV650 L7 (E03,E28,E33)
1
2
3
3
3
3
3
3
3
3
3
4
4
4
5
5
5
5
6
6
7
7
8
9
10
11
12
13
14
14
15
15
16
16
17
17
18
18
18
19
19
19
20
21
22
23
24
24
25
25
26
27
28
29
30
31
31
32
33
34
35
1
CRANKCASE ASSY
CRANKCASE SET

11301-27871-000   1130127871000

1130127871000

Unit Price Incl. Tax

2
PIN CRANKCASE
.PIN (8.4X11X20)

09206-11007-000   0920611007000

0920611007000

Unit Price Incl. Tax

3
.BOLT
.BOLT

01547-0650A-000   015470650A000

015470650A000

Unit Price Incl. Tax

4
.BOLT

07120-0855A-000   071200855A000

071200855A000

Unit Price Incl. Tax

5
.BOLT
.BOLT

07120-0880A-000   071200880A000

071200880A000

Unit Price Incl. Tax

6
OIL GALLERY JET<br />JET AIR(14)
OIL GALLERY JET
JET AIR(14)

09493-28010-000   0949328010000

0949328010000

Unit Price Incl. Tax

7
O RING<br />O RING (D:1.2,ID:4)
O RING
O RING (D:1.2, ID:4)

09280-04004-000   0928004004000

0928004004000

Unit Price Incl. Tax

8
REORDER ROBINSONS
JET, OIL GALY

09493-36004-000   0949336004000

0949336004000

Unit Price Incl. Tax

9
O RING<br />O RING (D:1.2,ID:4)
O RING
O RING (D:1.2, ID:4)

09280-04004-000   0928004004000

0928004004000

Unit Price Incl. Tax

10
O-RING

09280-13007-000  

09280-12009-000
 0928013007000

Unit Price Incl. Tax

11
O RING<br />O RING (D:2.4,ID:15.8)
O RING
O RING (D:2.4, ID:15.8)

09280-15007-000   0928015007000

0928015007000

Unit Price Incl. Tax

12
PLUG OIL DRAIN
PLUG (12X20)

09247-12011-000   0924712011000

0924712011000

Unit Price Incl. Tax

13
GASKET (12.1X16.2X3.7)
GASKET (12.1X16.2X3.7)

09168-12002-000   0916812002000

0916812002000

Unit Price Incl. Tax

14
PLATE, PISTON COOLING JET

16438-19F00-000   1643819F00000

1643819F00000

Unit Price Incl. Tax

15
BOLT<br />BOLT (6X12)
BOLT
BOLT (6X12)

09106-06075-000   0910606075000

0910606075000

Unit Price Incl. Tax

16
O RING<br />O RING (D:1.2,ID:4)
O RING
O RING (D:1.2, ID:4)

09280-04004-000   0928004004000

0928004004000

Unit Price Incl. Tax

17
JET (130)<br />JET
JET (130)
JET

09493-26007-000   0949326007000

0949326007000

Unit Price Incl. Tax

18
BOLT
BOLT

01550-0812A-000   015500812A000

015500812A000

Unit Price Incl. Tax

19
GASKET<br />GASKET (8.2X14X1)
GASKET
GASKET (8.2X14X1)

09168-08016-000   0916808016000

0916808016000

Unit Price Incl. Tax

20
PLUG OIL GALL NO.1/OIL PUMP<br />PLUG (16X8)
PLUG OIL GALL NO.1/OIL PUMP
PLUG (16X8)

09248-16012-000   0924816012000

0924816012000

Unit Price Incl. Tax

21
GASKET<br />GASKET (16X22X2)
GASKET
GASKET (16X22X2)

09168-16002-000   0916816002000

0916816002000

Unit Price Incl. Tax

22
PLATE, OIL SEPARATOR
PLATE, OIL SEPARATOR

11323-19F00-000   1132319F00000

1132319F00000

Unit Price Incl. Tax

23
BOLT

01547-0612A-000   015470612A000

015470612A000

Unit Price Incl. Tax

24
BOLT

01547-0610A-000   015470610A000

015470610A000

Unit Price Incl. Tax

25
GASKET<br />GASKET (5.8X13X1.2)
GASKET
GASKET (5.8X13X1.2)

09168-06023-000   0916806023000

0916806023000

Unit Price Incl. Tax

26
PLUG
PLUG (12X10)

09247-12006-000   0924712006000

0924712006000

Unit Price Incl. Tax

27
GASKET<br />GASKET (12X17X1)
GASKET
GASKET (12X17X1)

09168-12017-000   0916812017000

0916812017000

Unit Price Incl. Tax

28

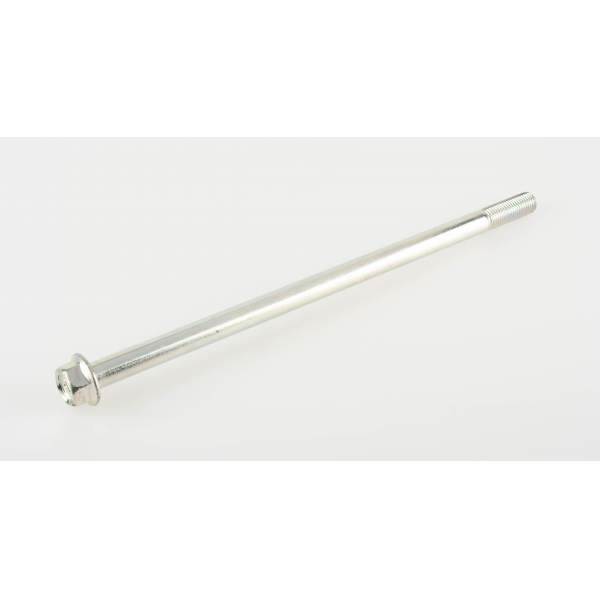

BOLT (10X215)
BOLT (10X215)

09103-10041-A05   0910310041A05

0910310041A05

Unit Price Incl. Tax

29

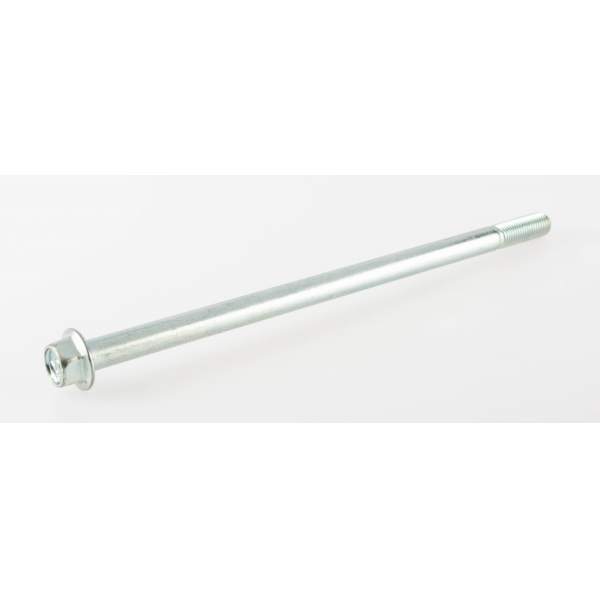

BOLT<br />BOLT (10X205)
BOLT
BOLT (10X205)

09103-10145-000   0910310145000

0910310145000

Unit Price Incl. Tax

30
SUZUKI PART
BOLT (12X300)

09103-12016-000   0910312016000

0910312016000

Unit Price Incl. Tax

31
NUT BRACKET
NUT

09159-10111-000   0915910111000

0915910111000

Unit Price Incl. Tax

32
NUT

09159-12056-000   0915912056000

0915912056000

Unit Price Incl. Tax

33
SWITCH OIL PRESSURE<br />SWITCH ASSY, OIL PRESSURE
SWITCH OIL PRESSURE
SWITCH ASSY, OIL PRESSURE

37820-33D10-000   3782033D10000

3782033D10000

Unit Price Incl. Tax

34
.BOLT, OIL PRESSURE SWITCH

37822-33D00-000   3782233D00000

3782233D00000

Unit Price Incl. Tax

35
CLAMP (L 80)<br />CLAMP (L:45)
CLAMP (L 80)
CLAMP (L:45)

09404-06429-000   0940406429000

0940406429000

Unit Price Incl. Tax
