CASING

CASING FOR SUZUKI V-STROM 650 2015

CRANKSHAFT

Item numbers
CASING Suzuki MOTO 650 V-STROM 2015 DL650A L5 (E38)
1
2
3
4
5
5
5
5
5
5
5
5
5
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
22
23
23
24
25
26
27
27
27
27
27
27
27
27
28
28
29
29
30
31
32
33
1
COVER, CLUTCH DL650A/L2-
COVER, CLUTCH

11340-44H10-000   1134044H10000

1134044H10000

Unit Price Incl. Tax

2
LENS<br />.LENS, OIL LEVEL CHECK
LENS
.LENS, OIL LEVEL CHECK

11971-33210-000   1197133210000

1197133210000

Unit Price Incl. Tax

3
GASKET SET
GASKET, CLUTCH COVER

11482-44H00-000   1148244H00000

1148244H00000

Unit Price Incl. Tax

4
PIN
PIN

04211-09149-000   0421109149000

0421109149000

Unit Price Incl. Tax

5
BOLT
BOLT (6X35)

09103-06214-000   0910306214000

0910306214000

Unit Price Incl. Tax

6
PLUG ENGINE OIL FILLER<br />PLUG, OIL FILLER
PLUG ENGINE OIL FILLER
PLUG, OIL FILLER

11971-25D00-000   1197125D00000

1197125D00000

Unit Price Incl. Tax

7
O RING<br />O RING (D:3.1,ID:16.8)
O RING
O RING (D:3.1, ID:16.8)

09280-17003-000   0928017003000

0928017003000

Unit Price Incl. Tax

8
SEPARATOR OIL

11343-44H00-000  

11343-44H01-000
 1134344H00000

Unit Price Incl. Tax

9
SCREW
BOLT (6X12)

09106-06098-000   0910606098000

0910606098000

Unit Price Incl. Tax

10
COVER, CLUTCH OUTER DL650A/L2-
COVER, CLUTCH OUTER

11342-11J00-000   1134211J00000

1134211J00000

Unit Price Incl. Tax

11
DAMPER, CLUTCH COV DL650A/L2-
DAMPER

11344-11J00-000   1134411J00000

1134411J00000

Unit Price Incl. Tax

12
BOLT (6X16)

09103-06174-000   0910306174000

0910306174000

Unit Price Incl. Tax

13
GASKET<br />GASKET (5.8X13X1.2)
GASKET
GASKET (5.8X13X1.2)

09168-06023-000   0916806023000

0916806023000

Unit Price Incl. Tax

14
COVER ENG SPROCKET INNER
COVER, ENGINE SPROCKET INNER

11361-44H00-000   1136144H00000

1136144H00000

Unit Price Incl. Tax

15
BOLT

01547-0620A-000   015470620A000

015470620A000

Unit Price Incl. Tax

16
BOLT

01547-0635A-000   015470635A000

015470635A000

Unit Price Incl. Tax

17
PIN
PIN

04211-09129-000   0421109129000

0421109129000

Unit Price Incl. Tax

18
COVER, ENG SPROCKET DL650A/L2-
COVER, ENGINE SPROCKET OUTER

11371-11J00-000   1137111J00000

1137111J00000

Unit Price Incl. Tax

19
BOLT

11372-22H00-000   1137222H00000

1137222H00000

Unit Price Incl. Tax

20
SCREW<br />SCREW (6X20)
SCREW
SCREW (6X20)

09139-06028-000   0913906028000

0913906028000
Not available
21
SCREW LH
SCREW (6X40)

09139-06105-000   0913906105000

0913906105000

Unit Price Incl. Tax

22
WASHER
WASHER

09169-06062-000   0916906062000

0916906062000

Unit Price Incl. Tax

23
CUSHION
CUSHION

09320-09016-000   0932009016000

0932009016000
Not available
24
COVER, MAGNETO

11351-44H00-000   1135144H00000

1135144H00000

Unit Price Incl. Tax

25

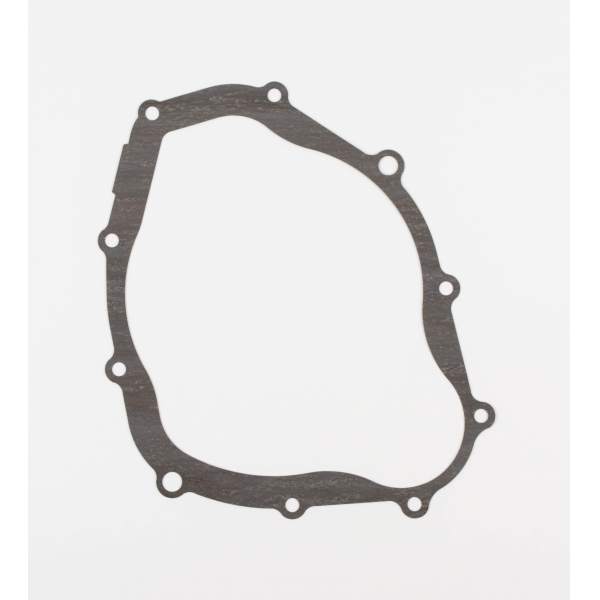

MAGNETO COVER GASKET<br />GASKET, MAGNETO COVER
MAGNETO COVER GASKET
GASKET, MAGNETO COVER

11483-19F00-000   1148319F00000

1148319F00000

Unit Price Incl. Tax

26
PIN
PIN

04211-09149-000   0421109149000

0421109149000

Unit Price Incl. Tax

27
BOLT
BOLT (6X35)

09103-06214-000   0910306214000

0910306214000

Unit Price Incl. Tax

28
BOLT
BOLT (6X65)

09103-06239-000   0910306239000

0910306239000

Unit Price Incl. Tax

29
GASKET<br />GASKET (5.8X13X1.2)
GASKET
GASKET (5.8X13X1.2)

09168-06023-000   0916806023000

0916806023000

Unit Price Incl. Tax

30
PLUG
PLUG (26X9)

09259-26011-000   0925926011000

0925926011000

Unit Price Incl. Tax

31
O RING<br />O RING (D:3.1,ID:22.7)
O RING
O RING (D:3.1, ID:22.7)

09280-22008-000   0928022008000

0928022008000

Unit Price Incl. Tax

32
PLUG OIL GALL NO.1/OIL PUMP<br />PLUG (16X8)
PLUG OIL GALL NO.1/OIL PUMP
PLUG (16X8)

09248-16012-000   0924816012000

0924816012000

Unit Price Incl. Tax

33
GASKET<br />GASKET (16X22X2)
GASKET
GASKET (16X22X2)

09168-16002-000   0916816002000

0916816002000

Unit Price Incl. Tax

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the CASING of your Suzuki V-STROM 650 of V-STROM. Let us know if you have any questions.
