Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FUEL TANK - COVERS

FRAME (DL650AL6 E24) FOR SUZUKI V-STROM 650 2016

FRAME (DL650AUEL6 E24)

Item numbers
FRAME (DL650AL6 E24) Suzuki MOTO 650 V-STROM 2016 DL650AUE L6/DL650XA L6/DL650XAUE L6 (E24)
1
2
3
4
5
6
6
7
8
9
10
11
12
13
14
15
15
1
FRAME DL650A/L4
FRAME (BLACK)

41100-27G50-YAP   4110027G50YAP

4110027G50YAP

Unit Price Incl. Tax

2
RAIL COMP, SEAT DL650A/L2-

41200-11J01-000  

41200-11J02-000
 4120011J01000

Unit Price Incl. Tax

3
BOLT
BOLT (10X30)

09103-10379-000   0910310379000

0910310379000

Unit Price Incl. Tax

4
BRACKET, ENG MOUNT DL650A/L2-
BRACKET, MOUNT RH (BLACK)

41911-06G90-YAP   4191106G90YAP

4191106G90YAP

Unit Price Incl. Tax

5
BRACKET, ENG MOUNT DL650A/L2-
BRACKET, MOUNT LH (BLACK)

41912-06G90-YAP   4191206G90YAP

4191206G90YAP

Unit Price Incl. Tax

6
BOLT (8X30)

09106-08193-000   0910608193000

0910608193000

Unit Price Incl. Tax

7
BOLT CRANK CASE ADJUST CTR
BOLT, ADJUSTER CENTER

41923-16G00-000   4192316G00000

4192316G00000

Unit Price Incl. Tax

8

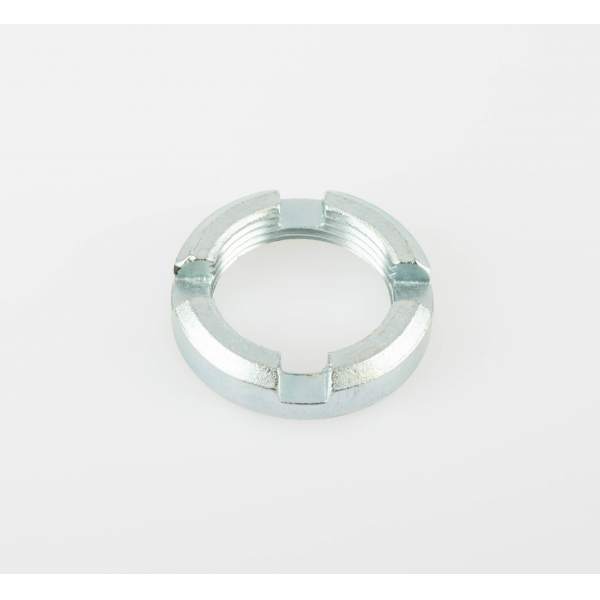

NUT DL650A/L2-<br />NUT, ADJUSTER CENTER
NUT DL650A/L2-
NUT, ADJUSTER CENTER

41922-19F20-000   4192219F20000

4192219F20000

Unit Price Incl. Tax

9
BOLT, CRANKCASE ADJUST

41921-16G00-000  

41921-16G01-000
 4192116G00000

Unit Price Incl. Tax

10
NUT DL650A/L2-
NUT, ADJUSTER LOWER

41922-33E20-000   4192233E20000

4192233E20000

Unit Price Incl. Tax

11
SPACER MOUNTING REAR UPPER R
SPACER, ADJUSTER UPPER

41941-19F01-000   4194119F01000

4194119F01000

Unit Price Incl. Tax

12
BOLT
BOLT (8X38)

09106-08168-000   0910608168000

0910608168000

Unit Price Incl. Tax

13
COVER, PIVOT, RH DL650/L2
COVER, PIVOT RH

43585-27G10-000   4358527G10000

4358527G10000

Unit Price Incl. Tax

14
COVER, PIVOT LH

43595-27G00-000   4359527G00000

4359527G00000

Unit Price Incl. Tax

15
CAP

09251-04003-000   0925104003000

0925104003000

Unit Price Incl. Tax

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the FRAME (DL650AL6 E24) of your Suzuki V-STROM 650 ABS / XT / 35kW of V-STROM. Let us know if you have any questions.

Genuine parts for Suzuki 650 V-STROM 2016

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 650 V-STROM 2016

Select your Suzuki 2016 model

650 V-STROM 2016 DL650AUE L6/DL650XA L6/DL650XAUE L6 (E24)
650 V-STROM 2016 DL650AUE L6/DL650XA L6/DL650XAUE L6 (E24)
650 V-STROM 2016 DL650AUE L6/DL650XA L6/DL650XAUE L6 (E24)

V-STROM 650 ABS / XT / 35kW

Suzuki V-STROM

Displacement: 650 cc
Year: 2016
Model code DL650AUE L6 / DL650XA L6 / DL650XAUE L6 (E24)
