CRANKCASE

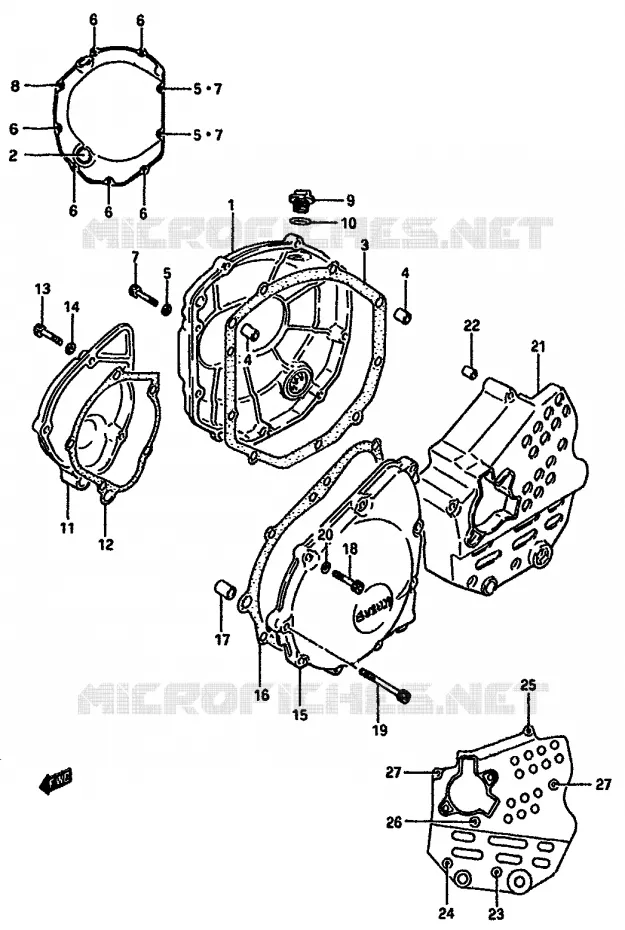

CRANKCASE COVER FOR SUZUKI GSX-R 750 1986

OIL PAN

(1) 11340-27A00-000

11340-27A00-000
DISCONTINUED

(2) 11971-33210-000

LENS
LENS,OIL LEVEL

(3) 11482-27A20-000

CLUTCH COVER GASKET
GASKET, CLUTCH COVER (ASB)

(4) 04211-09189-000

(5) 09168-06024-000

GASKET

(6) 07130-0625B-000

BOLT
BOLT (6X25)

(7) 07130-0630B-000

BOLT MAGNETO STATOR
BOLT, BRACKET

(8) 07130-0635B-000

BOLT
BOLT (6X35)

(9) 09259-20008-XC0

DRAIN PLUG
PLUG, ENGINE OIL FILLER

(10) 09280-17003-000

O RING

(11) 11381-27A03-000

MAGNETO INSP CAP
DISCONTINUED

(12) 11491-27A30-000

GASKET
GASKET, SIGNAL GENERATOR COVER (ASB)

(13) 09106-06082-000

BOLT (6X23)

(14) 09168-06024-000

GASKET

(15) 11351-27A01-000

MAGNETO COVER
COVER,STARTER GEAR

(16) 11483-27A20-000

GEAR COVER GASKET
DISCONTINUED

(17) 09206-11017-000

PIN
..PIN CRANKCASE (2)

(18) 07130-0625B-000

BOLT
BOLT (6X25)

(19) 07130-0640B-000

.BOLT

(20) 09168-06024-000

GASKET

(21) 11361-27A01-000

11361-27A01-000
DISCONTINUED

(22) 04211-09129-000

(23) 07130-0640B-000

.BOLT

(24) 07130-0630B-000

BOLT MAGNETO STATOR
BOLT, BRACKET

(25) 09106-06083-000

BOLT
.BOLT (6X50)

(26) 07130-0665B-000

.BOLT

(27) 07130-0670B-000

BOLT CL RLSE CYL
BOLT

	Part number	Description	Qty
# 1	11340-27A00-000 1134027A00000 1134027A00000	11340-27A00-000 DISCONTINUED	Not available	£0,00
# 2	11971-33210-000 1197133210000 1197133210000	LENS LENS, OIL LEVEL	£28,88
# 3	11482-27A01-000 11482-27A20-000 1148227A01000	CLUTCH COVER GASKET GASKET, CLUTCH COVER (ASB)	£15,80
# 4	04211-09189-000 0421109189000 0421109189000	PIN	£2,33
# 5	09168-06024-000 0916806024000 0916806024000	GASKET	£3,40
# 6	07110-06255-000 07130-0625B-000 0711006255000	BOLT BOLT (6X25)	£4,02
# 7	07110-06305-000 07130-0630B-000 0711006305000	BOLT MAGNETO STATOR BOLT, BRACKET	£5,41
# 8	07110-06355-000 07130-0635B-000 0711006355000	BOLT BOLT (6X35)	£4,46
# 9	09259-20012-000 09259-20008-XC0 0925920012000	DRAIN PLUG PLUG, ENGINE OIL FILLER	£6,01
# 10	09280-17003-000 0928017003000 0928017003000	O RING	£1,52
# 11	11381-27A00-000 1138127A00000	MAGNETO INSP CAP DISCONTINUED	Not available	£0,00
# 12	11491-27A00-000 11491-27A30-000 1149127A00000	GASKET GASKET, SIGNAL GENERATOR COVER (ASB)	£9,70
# 13	09106-06059-000 09106-06082-000 0910606059000	BOLT (6X23)	£4,68
# 14	09168-06024-000 0916806024000 0916806024000	GASKET	£3,40
# 15	11351-27A01-000 1135127A01000 1135127A01000	MAGNETO COVER COVER, STARTER GEAR	Not available	£0,00
# 16	11483-27A00-000 11483-27A20-000 1148327A00000	GEAR COVER GASKET DISCONTINUED	£12,49
# 17	09206-11005-000 09206-11017-000 0920611005000	PIN ..PIN CRANKCASE (2)	£7,94
# 18	07110-06255-000 07130-0625B-000 0711006255000	BOLT BOLT (6X25)	£4,02
# 19	07110-06405-000 07130-0640B-000 0711006405000	.BOLT	£5,39
# 20	09168-06024-000 0916806024000 0916806024000	GASKET	£3,40
# 21	11361-27A01-000 1136127A01000 1136127A01000	11361-27A01-000 DISCONTINUED	Not available	£0,00
# 22	04211-09129-000 0421109129000 0421109129000	PIN	£2,27
# 23	07110-06405-000 07130-0640B-000 0711006405000	.BOLT	£5,39
# 24	07110-06305-000 07130-0630B-000 0711006305000	BOLT MAGNETO STATOR BOLT, BRACKET	£5,41
# 25	07110-06505-000 09106-06083-000 0711006505000	BOLT .BOLT (6X50)	£7,15
# 26	07110-06655-000 07130-0665B-000 0711006655000	.BOLT	£5,96
# 27	07110-06705-000 07130-0670B-000 0711006705000	BOLT CL RLSE CYL BOLT	£6,01
