CAM SHAFT - VALVE

TIMING FOR SUZUKI GSX-R 750 1997

CARBURETOR (MODEL T / V) REFER TO FIG.12A(D-6) FOR MODEL W/X

(1) 12760-38A11-000

CAM CHAIN
CHAIN, CAM SHAFT DRIVE (128LE)

(2) 12771-33E01-000

CAM CHAIN GUIDE
GUIDE, CAM CHAIN NO.1

(3) 12782-33E02-000

CAM CHAIN GUIDE
GUIDE, CAM CHAIN NO.2

(4) 09106-06075-000

BOLT
SCREW

(5) 12811-33E00-000

CAM CHAIN TENSIONER
TENSIONER, CAM CHAIN

(5) 12811-33E21-000

TENSIONER, CAM CHAIN

(6) 12812-26B02-000

CAM CHAIN TENSIONER BOLT
BOLT

(6) 12812-26B02-000

CAM CHAIN TENSIONER BOLT
BOLT

(7) 08322-0108A-000

WASHER SEAT DAMPER UPPER
WASHER

(7) 08322-0108A-000

WASHER SEAT DAMPER UPPER
WASHER

(7) 08322-0108A-000

WASHER SEAT DAMPER UPPER
WASHER
WASHER SEAT DAMPER UPPER

(7) 08322-0108A-000

WASHER SEAT DAMPER UPPER
WASHER
WASHER SEAT DAMPER UPPER

(8) 12830-01D12-000

ADJUSTER
ADJUSTER ASSY, TENSIONER

(9) 12839-38200-000

PLUG

(10) 12838-38200-H17

GASKET

(11) 12830-33E01-000

ADJUSTER ASSY TENSIONER
DISCONTINUED

(12) 12834-33E00-000

PLUG

(13) 12837-33E00-000

GASKET

(14) 12837-24A10-000

GASKET
GASKET, ADJUSTER

(15) 07130-0625B-000

BOLT

(15) 07130-0625B-000

BOLT

(15) 07130-0625B-000

BOLT
BOLT

(15) 07130-0625B-000

BOLT
BOLT

(16) 09164-11005-000

WASHER CAM CHAIN TNS WAVE
WASHER

	Part number	Description	Qty
# 1	12760-38A11-000 1276038A11000 1276038A11000	CAM CHAIN CHAIN, CAM SHAFT DRIVE (128LE)	£107,11
# 2	12771-33E00-000 1277133E00000	CAM CHAIN GUIDE GUIDE, CAM CHAIN NO.1	Not available	£0,00
# 3	12782-33E00-000 1278233E00000	CAM CHAIN GUIDE GUIDE, CAM CHAIN NO.2	Not available	£0,00
# 4	07130-06123-000 09106-06075-000 0713006123000	BOLT SCREW	£3,90
# 5	12811-33E00-000 1281133E00000 1281133E00000	CAM CHAIN TENSIONER TENSIONER, CAM CHAIN	Not available	£0,00

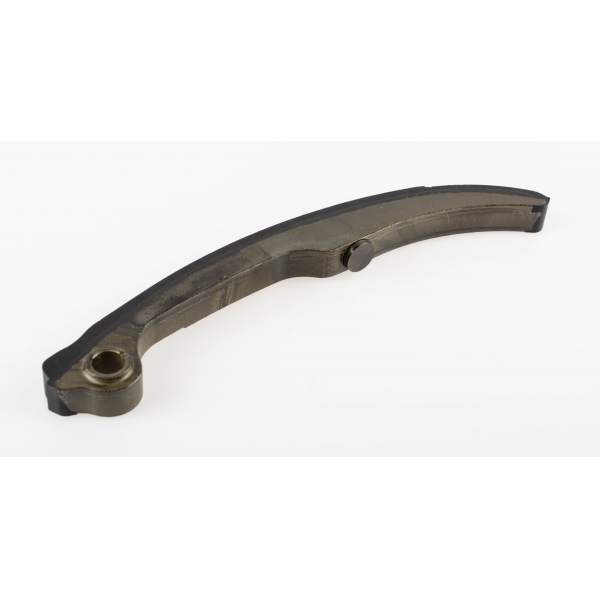

# 5	12811-33E20-000 1281133E20000	TENSIONER, CAM CHAIN	Not available	£0,00
# 6	12812-26B02-000 1281226B02000 1281226B02000	CAM CHAIN TENSIONER BOLT BOLT	£5,56
# 7	08322-01083-000 08322-0108A-000 0832201083000	WASHER SEAT DAMPER UPPER WASHER	£1,99
# 8	12830-01D12-000 1283001D12000 1283001D12000	ADJUSTER ADJUSTER ASSY, TENSIONER	£98,52
# 9	12839-38200-000 1283938200000 1283938200000	PLUG	£3,31
# 10	12838-38200-H17 1283838200H17 1283838200H17	GASKET	£5,17
# 11	12830-33E00-000 1283033E00000	ADJUSTER ASSY TENSIONER DISCONTINUED	Not available	£0,00
# 12	12834-33E00-000 1283433E00000 1283433E00000	PLUG	£6,13
# 13	12837-33E00-000 1283733E00000 1283733E00000	GASKET	£4,54
# 14	12837-24A10-000 1283724A10000 1283724A10000	GASKET GASKET, ADJUSTER	£2,40
# 15	07130-06253-000 07130-0625B-000 0713006253000	BOLT	£4,02
# 16	09164-11005-000 0916411005000 0916411005000	WASHER CAM CHAIN TNS WAVE WASHER	£3,29

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
