FAIRING (MODEL Z) FIG57 (G-14) : MODEL D

FAIRING (MODEL D) FOR SUZUKI GSX-S 750 1982

FRONT FENDER

(1) 47101-49820-13L

FRAME COVER
COVER, FRAME RH (SILVER)

(2) 68134-49300-291

REORDER ROBINSONS
DISCONTINUED

(3) 68131-34321-L96

EMBLEM
DISCONTINUED

(4) 47201-49820-13L

FRAME COVER
COVER, FRAME LH (SILVER)

(5) 68144-49300-291

LABEL
DISCONTINUED

(6) 68224-49300-000

LABEL
LABEL, CHOCK "ON"

(7) 68225-49300-000

LABEL
LABEL, CHOCK "OFF"

(8) 68131-34321-L96

EMBLEM
DISCONTINUED

(9) 09320-08513-000

CUSHION
CUSHION, FRONT NO.1

(10) 09329-02002-000

CUSHION
CUSHION, FRONT NO.2

(11) 09329-08003-000

CUSHION
CUSHION, REAR

(12) 02142-06167-000

SCREW

(13) 08321-01067-000

LOCK WASHER

(14) 09160-06066-000

WASHER
.WASHER (6.5*20*1.6)

(15) 09320-08510-000

CUSHION (8.5X20X8)

(16) 09180-06038-000

SPACER

(17) 47129-49300-000

CAP
CAP, SWITCH HOLE

(18) 58481-49302-000

LEVER, FUEL COCK VX800
DISCONTINUED

(19) 68223-49300-000

LABEL
LABEL, CHOCK

(20) 58482-49301-000

STARTER CABLE HOLDER
HOLDER, STARTER

(21) 58483-49300-000

TUBE
TUBE, STARTER LEVER

(22) 09164-16003-000

WASHER
WASHER, WEVE

(23) 78821-67000-000

PAD
RUBBER, FRAME COVER

	Part number	Description	Qty
# 1	47101-49820-13L 471014982013L 471014982013L	FRAME COVER COVER, FRAME RH (SILVER)	Not available	£0,00
# 2	68134-49300-000 68134-49300-291 6813449300000	REORDER ROBINSONS DISCONTINUED	£6,40
# 3	68131-34320-67T 68131-34321-L96 681313432067T	EMBLEM DISCONTINUED	£9,04
# 4	47201-49820-13L 472014982013L 472014982013L	FRAME COVER COVER, FRAME LH (SILVER)	£406,15
# 5	68144-49300-000 68144-49300-291 6814449300000	LABEL DISCONTINUED	£6,40
# 6	68224-49300-000 6822449300000 6822449300000	LABEL LABEL, CHOCK "ON"	£2,33
# 7	68225-49300-000 6822549300000 6822549300000	LABEL LABEL, CHOCK "OFF"	£2,33
# 8	68131-34320-67T 68131-34321-L96 681313432067T	EMBLEM DISCONTINUED	£9,04
# 9	09320-08018-000 09320-08513-000 0932008018000	CUSHION CUSHION, FRONT NO.1	£2,98
# 10	09329-02002-000 0932902002000 0932902002000	CUSHION CUSHION, FRONT NO.2	Not available	£0,00
# 11	09329-08003-000 0932908003000 0932908003000	CUSHION CUSHION, REAR	£5,46
# 12	02142-06167-000 0214206167000 0214206167000	SCREW	£1,96
# 13	08321-21068-000 08321-01067-000 0832121068000	LOCK WASHER	£2,44
# 14	09160-06020-000 09160-06066-000 0916006020000	WASHER .WASHER (6.5201.6)	£2,59
# 15	09320-08007-000 09320-08510-000 0932008007000	CUSHION (8.5X20X8)	£2,24
# 16	09180-06038-000 0918006038000 0918006038000	SPACER	£2,44
# 17	47129-49300-000 4712949300000 4712949300000	CAP CAP, SWITCH HOLE	£5,51
# 18	58481-49301-13L 584814930113L	LEVER, FUEL COCK VX800 DISCONTINUED	Not available	£0,00
# 19	68223-49300-000 6822349300000 6822349300000	LABEL LABEL, CHOCK	£2,69

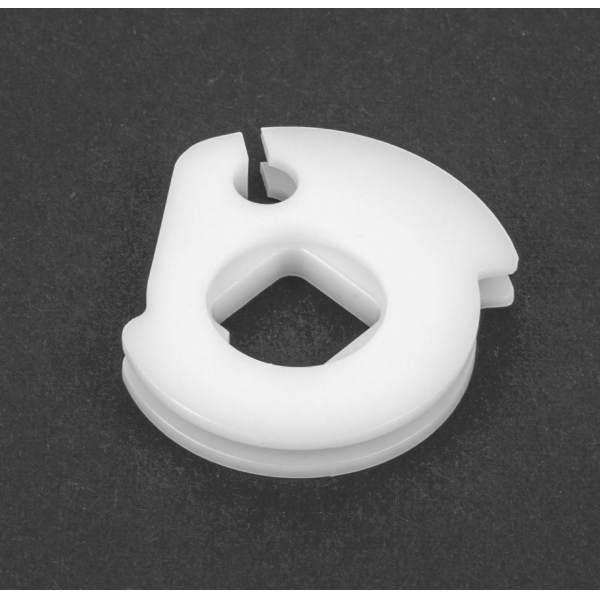

# 20	58482-49301-000 5848249301000 5848249301000	STARTER CABLE HOLDER HOLDER, STARTER	£10,56
# 21	58483-49300-000 5848349300000 5848349300000	TUBE TUBE, STARTER LEVER	£2,75
# 22	09164-16003-000 0916416003000 0916416003000	WASHER WASHER, WEVE	£3,71
# 23	78821-67000-000 7882167000000 7882167000000	PAD RUBBER, FRAME COVER	£3,74

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the FAIRING (MODEL D) of your Suzuki KATANA 750 of GSX-S. Let us know if you have any questions.
