FUEL TANK (MODEL Y / K1)

FAIRING (MODEL V) FOR SUZUKI TL-S 1000 2000

FAIRING (MODEL W) REFER TO FIG.35B(H-12) FOR MODEL X

Item numbers

RH FRAME COVER COMP.
COVER, FRAME RH (GREEN)

47110-02F00-1UH 4711002F001UH

Not available

RH FRAME COVER COMP.
COVER, FRAME RH (RED)

47110-02F00-28V 4711002F0028V

Not available

RH FRAME COVER COMP.

47110-02F00-33J 4711002F0033J

Not available

CUSHION

47161-02F00-000 4716102F00000

Not available

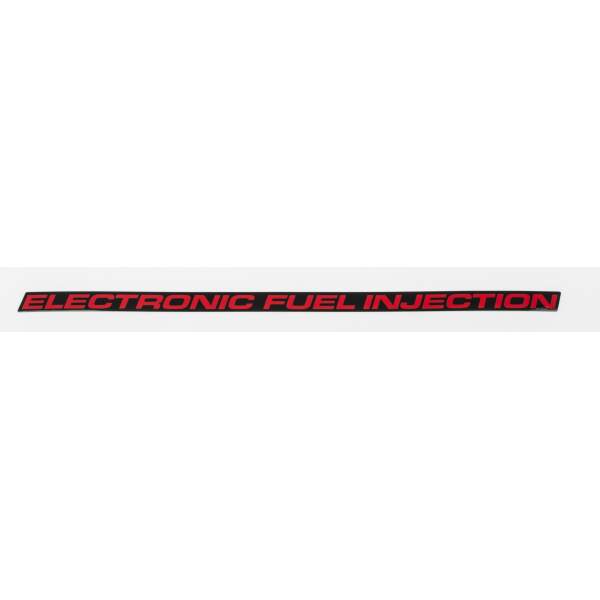

FRAME COVER EMBLEM (33J)
EMBLEM

68131-02F00-3EE 6813102F003EE

Not available

FRAME COVER EMBLEM (28V)
EMBLEM

68131-02F00-H3Y 6813102F00H3Y

Not available

FRAME COVER EMBLEM (1HU)
EMBLEM

68131-02F00-H3Z 6813102F00H3Z

Not available

LH FRAME COVER COMP.
COVER, FRAME LH (GREEN)

47210-02F00-1UH 4721002F001UH

Not available

LH FRAME COVER COMP.
COVER, FRAME LH (RED)

47210-02F00-28V 4721002F0028V

Not available

LH FRAME COVER COMP.
DISCONTINUED

47210-02F00-33J 4721002F0033J

Not available

CUSHION

47161-02F00-000 4716102F00000

Not available

FRAME COVER EMBLEM (33J)
EMBLEM

68131-02F00-3EE 6813102F003EE

Not available

FRAME COVER EMBLEM (28V)
EMBLEM

68131-02F00-H3Y 6813102F00H3Y

Not available

FRAME COVER EMBLEM (1HU)
EMBLEM

68131-02F00-H3Z 6813102F00H3Z

Not available

CUSHION

09320-08018-000

Not available

SCREW
SCREW, UPPER

09136-06105-000 0913606105000

£3,29

Unit Price Incl. Tax

SPACER

09180-06286-000 0918006286000

Not available

CUSHION
CUSHION, UPPER

09320-10045-000 0932010045000

£6,01

Unit Price Incl. Tax

SCREW

03241-05123-000

03242-05123-000

£1,56

Unit Price Incl. Tax

NUT(M5)
NUT

09148-05038-000 0914805038000

£2,59

Unit Price Incl. Tax

SCREW 5X16
SCREW, REAR LOWER

09136-05034-000 0913605034000

£2,59

Unit Price Incl. Tax

NUT(M5)
NUT

09148-05038-000 0914805038000

£2,59

Unit Price Incl. Tax

COVER, FRAME CENTER (GREEN)

47311-02F00-1UH 4731102F001UH

Not available

FRAME CENTRE COVER
COVER, FRAME CENTER (RED)

47311-02F00-28V 4731102F0028V

Not available

FRAME CENTRE COVER
COVER, FRAME CENTER (BLACK)

47311-02F00-33J 4731102F0033J

Not available

SCREW

03541-15123-000

03541-1512B-000

£3,84

Unit Price Incl. Tax

NUT(M5)
NUT

09148-05038-000 0914805038000

£2,59

Unit Price Incl. Tax

REAR CUSHION
CUSHION, REAR

47129-02F00-000 4712902F00000

£8,36

Unit Price Incl. Tax

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the FAIRING (MODEL V) of your Suzuki TLS 1000 of TL-S. Let us know if you have any questions.
