LABEL (MODEL K1)

SEAT FOR SUZUKI TL-S 1000 2000

BACKREST ASSY (OPTIONAL)

(1) 45100-02F10-R42

SEAT ASSY (BLACK)

(2) 45148-36C01-000

CUSHION
CUSHION, REAR

(2) 09321-10002-000

CUSHION
CUSHION, FRONT

(3) 45149-31300-000

CUSHION

(4) 45300-02F11-R42

SEAT ASSY
SEAT ASSY, PILLION (BLACK)

(5) 45180-02F00-R42

SEAT BAND ASSY (BLACK)
BAND ASSY, SEAT (BLACK)

(6) 01550-06207-000

BOLT

(7) 45220-47H00-000

BRACKET COMP SEAT SUPPORT
BRACKET, SEAT REAR

(8) 02122-0630B-000

SCREW

(9) 45280-38400-000

SEAT LOCK CABLE
CABLE, SEAT LOCK

(10) 45220-02F00-000

SEAT BRKT. COMP.
BRACKET, SEAT FRONT

(11) 02122-0625B-000

SCREW

(12) 45120-02F00-000

SEAT LOCK BRKT. COMP.
BRACKET, SEAT LOCK

(13) 01550-0616B-000

BOLT

(14) 45289-02F00-000

SEAT LOCK CYL. BRKT.
BRACKET, SEAT LOCK

(15) 02142-0612A-000

SCREW

(16) 95700-02821-000

SEAT LOCK SET
LOCK SET, SEAT

(17) 02142-0510A-000

SCREW

(18) 09407-14403-000

CLAMP

(19) 45550-02F00-1UH

SEAT/TAIL BOX COMP.
BOX, SEAT TAIL (GREEN)

(19) 45550-02F00-28V

SEAT/TAIL BOX COMP.
BOX, SEAT TAIL (RED)

(19) 45550-02F00-33J

SEAT/TAIL BOX COMP.
BOX, SEAT TAIL (BLACK)

(19) 45550-02F00-Y0W

BOX, SEAT TAIL (ORANGE)

(19) 45550-02F00-Y2D

BOX, SEAT TAIL (SILVER)

(19) 45550-02F00-Y3G

BOX, SEAT TAIL (YELLOW)

(19) 45550-02F00-Y7H

B0X, SEAT TAIL (BLUE)

(19) 45550-02F00-Y7L

BOX COMP SEAT TAIL
BOX, SEAT TAIL (BLACK)

(19) 45550-02F00-Y7M

BOX, SEAT TAIL TL1000S/Y
BOX, SEAT TAIL (RED)

(19) 45550-02F00-Y9H

BOX COMP SEAT TAIL
BOX, SEAT TAIL (YELLOW)

(19) 45550-02F00-YC2

BOX, SEAT TAIL (BLUE)

(20) 45559-33E00-000

PROTECTOR SET
PROTECTOR, COVER (5PIECE)

	Part number	Description	Qty

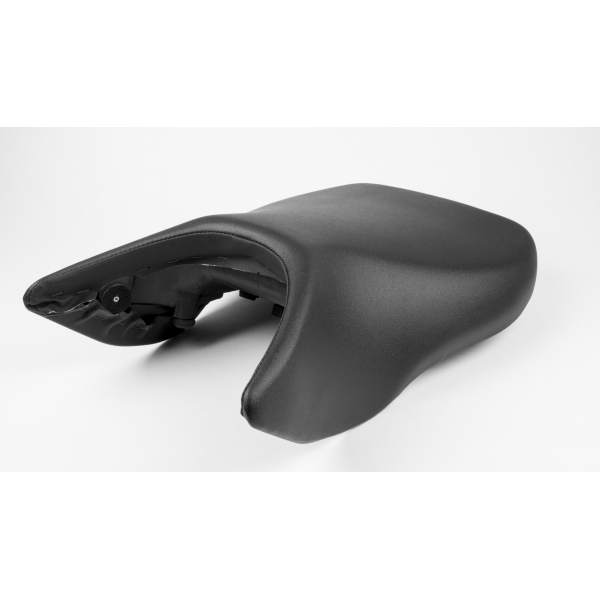

# 1	45100-02F10-R42 4510002F10R42 4510002F10R42	SEAT ASSY (BLACK)	Not available	£0,00
# 2	09321-10002-000 0932110002000 0932110002000	CUSHION CUSHION, FRONT	£3,29
# 2	45148-36C00-000 45148-36C01-000 4514836C00000	CUSHION CUSHION, REAR	£5,20
# 3	45149-31300-000 4514931300000 4514931300000	CUSHION	£6,11

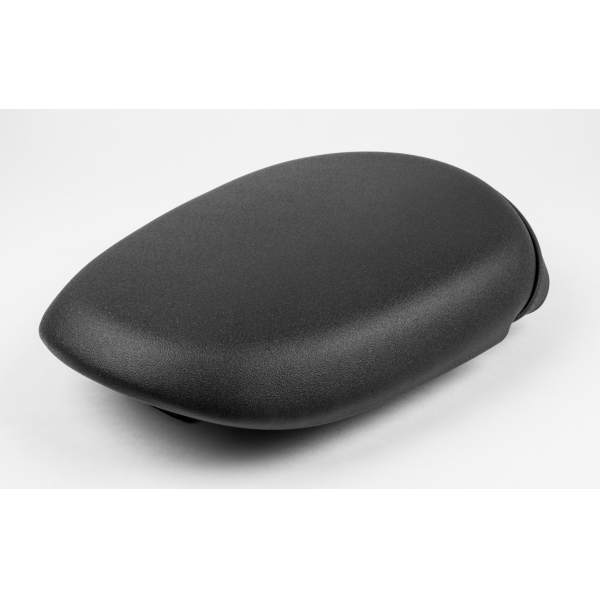

# 4	45300-02F10-R42 4530002F10R42	SEAT ASSY SEAT ASSY, PILLION (BLACK)	Not available	£0,00
# 5	45180-02F00-R42 4518002F00R42 4518002F00R42	SEAT BAND ASSY (BLACK) BAND ASSY, SEAT (BLACK)	Not available	£0,00
# 6	01550-06207-000 0155006207000 0155006207000	BOLT	£3,05
# 7	45220-20A01-000 45220-47H00-000 4522020A01000	BRACKET COMP SEAT SUPPORT BRACKET, SEAT REAR	£128,48
# 8	02122-06303-000 02122-0630B-000 0212206303000	SCREW	£3,40
# 9	45280-38400-000 4528038400000 4528038400000	SEAT LOCK CABLE CABLE, SEAT LOCK	£22,03
# 10	45220-02F00-000 4522002F00000 4522002F00000	SEAT BRKT. COMP. BRACKET, SEAT FRONT	£70,01
# 11	02122-06253-000 02122-0625B-000 0212206253000	SCREW	£2,98
# 12	45120-02F00-000 4512002F00000 4512002F00000	SEAT LOCK BRKT. COMP. BRACKET, SEAT LOCK	Not available	£0,00
# 13	01550-06163-000 01550-0616B-000 0155006163000	BOLT	£3,22

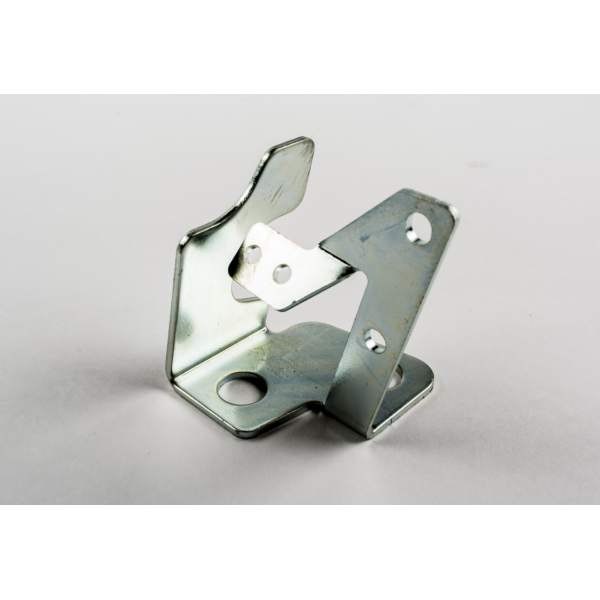

# 14	45289-02F00-000 4528902F00000 4528902F00000	SEAT LOCK CYL. BRKT. BRACKET, SEAT LOCK	Not available	£0,00
# 15	02142-06123-000 02142-0612A-000 0214206123000	SCREW	£1,48
# 16	95700-02820-000 9570002820000	SEAT LOCK SET LOCK SET, SEAT	Not available	£0,00
# 17	02142-05103-000 02142-0510A-000 0214205103000	SCREW	£1,68
# 18	09407-14403-000 0940714403000 0940714403000	CLAMP	£2,84
# 19	45550-02F00-1UH 4555002F001UH 4555002F001UH	SEAT/TAIL BOX COMP. BOX, SEAT TAIL (GREEN)	Not available	£0,00
# 19	45550-02F00-28V 4555002F0028V 4555002F0028V	SEAT/TAIL BOX COMP. BOX, SEAT TAIL (RED)	Not available	£0,00
# 19	45550-02F00-33J 4555002F0033J 4555002F0033J	SEAT/TAIL BOX COMP. BOX, SEAT TAIL (BLACK)	Not available	£0,00
# 19	45550-02F00-Y0W 4555002F00Y0W 4555002F00Y0W	BOX, SEAT TAIL (ORANGE)	Not available	£0,00
# 19	45550-02F00-Y2D 4555002F00Y2D 4555002F00Y2D	BOX, SEAT TAIL (SILVER)	Not available	£0,00
# 19	45550-02F00-Y3G 4555002F00Y3G 4555002F00Y3G	BOX, SEAT TAIL (YELLOW)	Not available	£0,00
# 19	45550-02F00-Y7H 4555002F00Y7H 4555002F00Y7H	B0X, SEAT TAIL (BLUE)	Not available	£0,00
# 19	45550-02F00-Y7L 4555002F00Y7L 4555002F00Y7L	BOX COMP SEAT TAIL BOX, SEAT TAIL (BLACK)	Not available	£0,00
# 19	45550-02F00-Y7M 4555002F00Y7M 4555002F00Y7M	BOX, SEAT TAIL TL1000S/Y BOX, SEAT TAIL (RED)	Not available	£0,00
# 19	45550-02F00-Y9H 4555002F00Y9H 4555002F00Y9H	BOX COMP SEAT TAIL BOX, SEAT TAIL (YELLOW)	Not available	£0,00
# 19	45550-02F00-YC2 4555002F00YC2 4555002F00YC2	BOX, SEAT TAIL (BLUE)	Not available	£0,00
# 20	45559-33E00-000 4555933E00000 4555933E00000	PROTECTOR SET PROTECTOR, COVER (5PIECE)	Not available	£0,00

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the SEAT of your Suzuki TLS 1000 of TL-S. Let us know if you have any questions.
