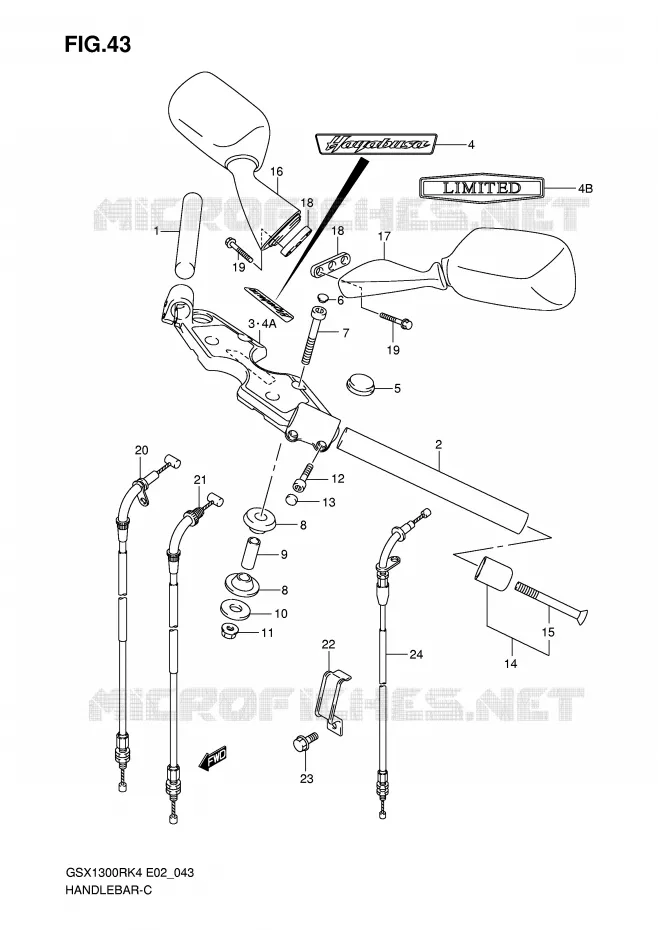

HANDLEBAR FOR SUZUKI HAYABUSA 1300 2005

LEVERS - HANDGRIPS

(1) 56111-24F01-000

HANDLEBAR, RH

(2) 56151-24F01-000

HANDLEBAR L
HANDLEBAR, LH

(3) 56210-24F00-000

HOLDER HANDLEBAR
HOLDER, HANDLE

(4) 68281-24F00-000

EMBLEM HANDLE HOLDER
EMBLEM

(5) 56247-24F00-000

CUSHION, HANDLE HOLDER

(6) 56246-24F00-000

CAP
CAP, BOLT

(7) 07130-1060A-000

BOLT

(8) 56240-01D01-000

CUSHION

(9) 56243-01D00-000

SPACER

(10) 09160-10145-000

WASHER

(10) 09160-10094-000

WASHER

(11) 08319-3110B-000

NUT

(11) 08319-31107-000

NUT

(12) 09106-06090-000

BOLT, CLAMP

(13) 09250-05009-000

CAP

(14) 56200-08830-000

HANDLEBAR BALANCER
BALANCER SET, HANDLEBAR

(15) 02122-0660B-000

SCREW

(16) 56500-24F20-000

MIRROR,RR GSX1300RA/L3
MIRROR ASSY, REAR VIEW RH

(17) 56600-24F20-000

MIRROR ASSY,RR GSX1300RA/L3
MIRROR ASSY, REAR VIEW LH

(18) 94576-24F00-000

CUSHION REAR VIEW MIRROR
CUSHION

(19) 01547-0630B-000

BOLT BREATHER COVER
BOLT

(20) 58300-24F20-000

CABLE ASSY, THROTTLE NO.1

(21) 58300-24F30-000

CABLE ASSY THROTTLE NO1
CABLE ASSY, THROTTLE NO.2

(22) 58623-24F00-000

GUIDE, CABLE

(23) 09103-05017-000

BOLT

(24) 58410-24F00-000

CABLE ASSY STARTER
CABLE, STARTER

(4A) 56210-24F20-000

HOLDER HANDLEBAR
HOLDER, HANDLE

(4B) 68281-35F10-000

EMBLEM LIMITED
EMBLEM, "LIMITED"

	Part number	Description	Qty
# 1	56111-24F01-000 5611124F01000 5611124F01000	HANDLEBAR, RH	£61,36
# 2	56151-24F01-000 5615124F01000 5615124F01000	HANDLEBAR L HANDLEBAR, LH	£74,35
# 3	56210-24F00-000 5621024F00000 5621024F00000	HOLDER HANDLEBAR HOLDER, HANDLE	Not available	£0,00
# 4	68281-24F00-000 6828124F00000 6828124F00000	EMBLEM HANDLE HOLDER EMBLEM	£31,48
# 4B	68281-35F10-000 6828135F10000 6828135F10000	EMBLEM LIMITED EMBLEM, "LIMITED"	£32,76
# 4A	56210-24F20-000 5621024F20000 5621024F20000	HOLDER HANDLEBAR HOLDER, HANDLE	Not available	£0,00
# 5	56247-24F00-000 5624724F00000 5624724F00000	CUSHION, HANDLE HOLDER	£14,96
# 6	56246-24F00-000 5624624F00000 5624624F00000	CAP CAP, BOLT	£13,26
# 7	07130-10607-000 07130-1060A-000 0713010607000	BOLT	£6,85
# 8	56240-01D00-000 56240-01D01-000 5624001D00000	CUSHION	£27,71
# 9	56243-01D00-000 5624301D00000 5624301D00000	SPACER	£12,34
# 10	09160-10094-000 0916010094000 0916010094000	WASHER	£4,03
# 10	09160-10145-000 0916010145000 0916010145000	WASHER	£4,82
# 11	08319-31107-000 0831931107000 0831931107000	NUT	£3,95
# 11	08319-3110B-000 083193110B000 083193110B000	NUT	£5,06
# 12	09106-06090-000 0910606090000 0910606090000	BOLT, CLAMP	£4,85
# 13	09250-05009-000 0925005009000 0925005009000	CAP	£3,40
# 14	56200-08830-000 5620008830000 5620008830000	HANDLEBAR BALANCER BALANCER SET, HANDLEBAR	£32,63
# 15	02122-06603-000 02122-0660B-000 0212206603000	SCREW	£4,85
# 16	56500-24F00-000 56500-24F20-000 5650024F00000	MIRROR, RR GSX1300RA/L3 MIRROR ASSY, REAR VIEW RH	£169,02
# 17	56600-24F00-000 56600-24F20-000 5660024F00000	MIRROR ASSY, RR GSX1300RA/L3 MIRROR ASSY, REAR VIEW LH	£167,36
# 18	94576-24F00-000 9457624F00000 9457624F00000	CUSHION REAR VIEW MIRROR CUSHION	£10,78
# 19	01547-06303-000 01547-0630B-000 0154706303000	BOLT BREATHER COVER BOLT	£4,36
# 20	58300-24F20-000 5830024F20000 5830024F20000	CABLE ASSY, THROTTLE NO.1	£50,81
# 21	58300-24F30-000 5830024F30000 5830024F30000	CABLE ASSY THROTTLE NO1 CABLE ASSY, THROTTLE NO.2	£50,81
# 22	58623-24F00-000 5862324F00000 5862324F00000	GUIDE, CABLE	£12,60
# 23	09103-05017-000 0910305017000 0910305017000	BOLT	£4,81
# 24	58410-24F00-000 5841024F00000 5841024F00000	CABLE ASSY STARTER CABLE, STARTER	£48,01

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the HANDLEBAR of your Suzuki HAYABUSA 1300 of HAYABUSA. Let us know if you have any questions.
