FRAME (MODEL L) REFER TO FIG.27A(E-3) FOR MODEL M/N/P/R

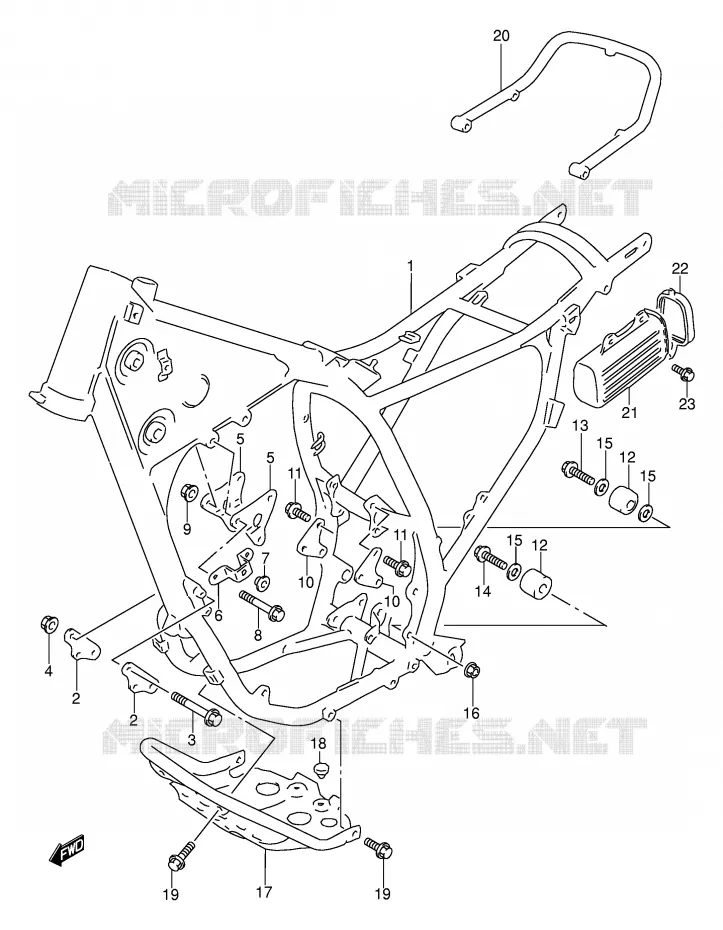

FRAME (MODEL M / N / P / R) FOR SUZUKI DR 250 1992

FOOTREST

(1) 41100-14D31-0NF

41100-14D31-0NF
FRAME (BLUE)

(1) 41100-14D72-019

FRAME COMP,
FRAME (YELLOW)

(1) 41100-14D31-0NF

41100-14D31-0NF
FRAME (BLUE)

(1) 41100-14D72-019

FRAME COMP,
FRAME (YELLOW)

(1) 41100-14D50-0NF

FRAME (BLUE)

(1) 41100-14D50-1AZ

FRAME (YELLOW)

(1) 41100-14D51-0NF

FRAME (BLUE)

(1) 41100-14D51-1AZ

FRAME (YELLOW)

(1) 41100-14D53-0NF

FRAME (BLUE)

(1) 41100-14D72-0NF

FRAME (BLUE)

(2) 41911-14D01-000

PLATE, FRONT

(2) 41911-14D01-000

PLATE, FRONT

(3) 09103-08294-000

REORDER ROBINSONS
BOLT

(4) 09159-08034-000

NUT

(5) 41991-14D01-000

PLATE
PLATE, UPPER

(5) 41991-14D01-000

PLATE
PLATE, UPPER

(6) 44164-14D00-000

PLATE,FUEL TANK STOPPER
PLATE, FUEL TANK STOPPER LH

(7) 09321-10018-000

CUSHION

(8) 09103-08569-000

REORDER ROBINSONS
BOLT

(9) 09159-08034-000

NUT

(10) 41971-14D01-000

PLATE
PLATE, LOWER

(10) 41971-14D01-000

PLATE
PLATE, LOWER

(11) 09103-08570-000

BOLT

(11) 09103-08570-000

BOLT

(11) 09103-08570-000

BOLT
BOLT

(11) 09103-08570-000

BOLT
BOLT

(12) 43910-27C11-000

ROLLER
ROLLER, CHAIN CONTROL

(12) 43910-27C11-000

ROLLER
ROLLER, CHAIN CONTROL

(12) 43910-27C11-000

ROLLER
ROLLER, CHAIN CONTROL
ROLLER

(12) 43910-27C11-000

ROLLER
ROLLER, CHAIN CONTROL
ROLLER

(12) 43910-27C11-000

ROLLER
ROLLER, CHAIN UPPER

(12) 43910-27C11-000

ROLLER
ROLLER, CHAIN UPPER

(13) 09103-08178-000

BOLT
BOLT, UPPER

(14) 09103-08043-000

BOLT
BOLT, LOWER

(15) 08211-08121-000

THRUST WASHER
WASHER

(15) 08211-08121-000

THRUST WASHER
WASHER

(15) 08211-08121-000

THRUST WASHER
WASHER

(15) 09160-08074-000

WASHER

(15) 09160-08074-000

WASHER

(15) 09160-08074-000

WASHER

(16) 08313-2008B-000

NUT
NUT, LOWER

(16) 08313-20087-000

NUT
NUT, LOWER

(17) 42510-14D10-13L

ENGINE PROTCTOR
PROTECTOR, ENGINE (SILVER)

(18) 09321-10026-000

REORDER ROBINSONS
CUSHION

(19) 01550-08127-000

BOLT
PLUG, OIL GALLERY

(19) 01550-08127-000

BOLT
PLUG, OIL GALLERY

(19) 01550-08127-000

BOLT
PLUG, OIL GALLERY
BOLT

(19) 01550-08127-000

BOLT
PLUG, OIL GALLERY
BOLT

(19) 01550-0812A-000

BOLT

(19) 01550-0812A-000

BOLT

(19) 01550-0812A-000

BOLT
BOLT

(19) 01550-0812A-000

BOLT
BOLT

(20) 43980-14D12-1TS

SUZUKI PART
GRIP, REAR (WHITE)

(20) 43980-14D12-0NF

43980-14D12-0NF
GRIP, REAR (BLUE)

(20) 43980-14D80-1TS

REAR GRIP (WHITE)
GRIP, REAR (YELLOW)

(20) 43980-14D42-0NF

GRIP, REAR (BLUE)

(20) 43980-14D42-1AZ

GRIP, REAR (YELLOW)

(21) 47431-14D00-000

TOOL HOLDER
HOLDER, TOOL

(22) 47432-14D01-000

TOOL HOLDER CAP
CAP

(23) 09116-06165-000

BOLT
BOLT (M6X16)

	Part number	Description	Qty
# 1	41100-14D30-0NF 4110014D300NF	41100-14D31-0NF FRAME (BLUE)	Not available	£0,00
# 1	41100-14D30-1AZ 4110014D301AZ	FRAME COMP, FRAME (YELLOW)	Not available	£0,00
# 1	41100-14D31-0NF 4110014D310NF 4110014D310NF	41100-14D31-0NF FRAME (BLUE)	Not available	£0,00
# 1	41100-14D31-1AZ 4110014D311AZ	FRAME COMP, FRAME (YELLOW)	Not available	£0,00
# 1	41100-14D50-0NF 4110014D500NF 4110014D500NF	FRAME (BLUE)	Not available	£0,00
# 1	41100-14D50-1AZ 4110014D501AZ 4110014D501AZ	FRAME (YELLOW)	Not available	£0,00
# 1	41100-14D51-0NF 4110014D510NF 4110014D510NF	FRAME (BLUE)	Not available	£0,00
# 1	41100-14D51-1AZ 4110014D511AZ 4110014D511AZ	FRAME (YELLOW)	Not available	£0,00
# 1	41100-14D53-0NF 4110014D530NF 4110014D530NF	FRAME (BLUE)	Not available	£0,00
# 1	41100-14D72-0NF 4110014D720NF 4110014D720NF	FRAME (BLUE)	Not available	£0,00
# 2	41911-14D01-000 4191114D01000 4191114D01000	PLATE, FRONT	Not available	£0,00
# 3	09103-08294-000 0910308294000 0910308294000	REORDER ROBINSONS BOLT	Not available	£0,00
# 4	09159-08034-000 0915908034000 0915908034000	NUT	£2,22
# 5	41991-14D01-000 4199114D01000 4199114D01000	PLATE PLATE, UPPER	Not available	£0,00
# 6	44164-14D00-000 4416414D00000 4416414D00000	PLATE, FUEL TANK STOPPER PLATE, FUEL TANK STOPPER LH	Not available	£0,00
# 7	09321-10018-000 0932110018000 0932110018000	CUSHION	£7,37
# 8	09103-08293-000 09103-08569-000 0910308293000	REORDER ROBINSONS BOLT	£5,21
# 9	09159-08034-000 0915908034000 0915908034000	NUT	£2,22
# 10	41971-14D01-000 4197114D01000 4197114D01000	PLATE PLATE, LOWER	Not available	£0,00
# 11	09103-08283-000 09103-08570-000 0910308283000	BOLT	£2,68
# 12	43910-27C10-000 43910-27C11-000 4391027C10000	ROLLER ROLLER, CHAIN CONTROL	£53,39
# 13	09103-08178-000 0910308178000 0910308178000	BOLT BOLT, UPPER	£7,39
# 14	09103-08068-000 09103-08043-000 0910308068000	BOLT BOLT, LOWER	£5,50
# 15	08211-08121-000 0821108121000 0821108121000	THRUST WASHER WASHER	£3,29
# 15	09160-08074-000 0916008074000 0916008074000	WASHER	Not available	£0,00
# 16	08313-20083-000 08313-2008B-000 0831320083000	NUT NUT, LOWER	£4,10
# 16	08313-21087-000 08313-20087-000 0831321087000	NUT NUT, LOWER	£3,52
# 17	42510-14D10-13L 4251014D1013L 4251014D1013L	ENGINE PROTCTOR PROTECTOR, ENGINE (SILVER)	Not available	£0,00
# 18	09321-10026-000 0932110026000 0932110026000	REORDER ROBINSONS CUSHION	Not available	£0,00
# 19	01517-08128-000 01550-08127-000 0151708128000	BOLT PLUG, OIL GALLERY	£4,33
# 19	01550-08123-000 01550-0812A-000 0155008123000	BOLT	£3,05
# 20	43980-14D12-1TS 4398014D121TS 4398014D121TS	SUZUKI PART GRIP, REAR (WHITE)	£443,68
# 20	43980-14D12-0NF 4398014D120NF 4398014D120NF	43980-14D12-0NF GRIP, REAR (BLUE)	Not available	£0,00
# 20	43980-14D12-1AZ 4398014D121AZ	REAR GRIP (WHITE) GRIP, REAR (YELLOW)	Not available	£0,00
# 20	43980-14D42-0NF 4398014D420NF 4398014D420NF	GRIP, REAR (BLUE)	Not available	£0,00
# 20	43980-14D42-1AZ 4398014D421AZ 4398014D421AZ	GRIP, REAR (YELLOW)	Not available	£0,00
# 21	47431-14D00-000 4743114D00000 4743114D00000	TOOL HOLDER HOLDER, TOOL	£74,26
# 22	47432-14D00-000 47432-14D01-000 4743214D00000	TOOL HOLDER CAP CAP	£14,24
# 23	09116-06085-000 09116-06165-000 0911606085000	BOLT BOLT (M6X16)	£3,43

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the FRAME (MODEL M/N/P/R) of your Suzuki of DR. Let us know if you have any questions.
