ALTERNATOR COVER

OIL PUMP FOR SUZUKI KINGQUAD 400 2024

FUEL PUMP

PUMP ENGINE OIL
PUMP ASSY, ENGINE OIL

16400-27H00-000 1640027H00000

£145,24

Unit Price Incl. Tax

04211-09109-000 0421109109000

£2,11

Unit Price Incl. Tax

DRIVEN GEAR
GEAR, OIL PUMP DRIVEN(NT:35)

16331-14D02-000 1633114D02000

£51,70

Unit Price Incl. Tax

SHIM
SHIM(10X18X0.5)

09181-10158-000 0918110158000

£1,66

Unit Price Incl. Tax

PIN
PIN(4X15.8)

09261-04009-000 0926104009000

£2,40

Unit Price Incl. Tax

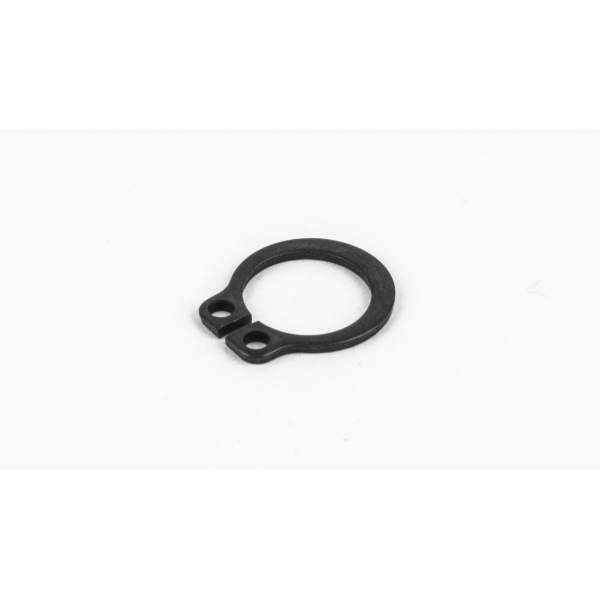

CIRCLIP

08331-31109-000 0833131109000

£2,68

Unit Price Incl. Tax

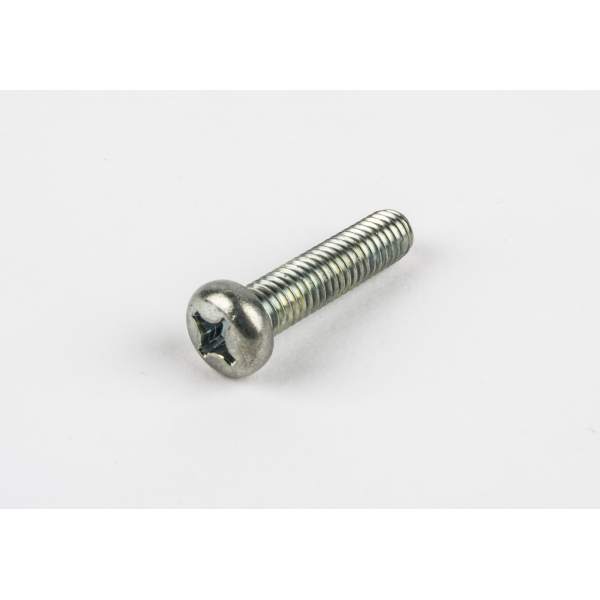

SCREW

02112-0625A-000 021120625A000

£2,28

Unit Price Incl. Tax

STRAINER, ENGINE OIL

16520-27H00-000 1652027H00000

£10,30

Unit Price Incl. Tax

SCREW

02112-7512A-000 021127512A000

£3,05

Unit Price Incl. Tax

CAP
CAP, OIL STRAINER

16523-24501-000 1652324501000

£28,91

Unit Price Incl. Tax

O RING
O RING(D:2.4, ID:82)

16528-24500-000 1652824500000

£12,77

Unit Price Incl. Tax

BOLT

01547-0625A-000 015470625A000

£3,40

Unit Price Incl. Tax

.PLUG OIL DRAIN
PLUG(MAGNETO)

09247-14002-000 0924714002000

£4,52

Unit Price Incl. Tax

GASKET
GASKET(13.8X18.8X4.8)

09168-14002-000 0916814002000

Not available

FILTER ASSY ENGINE OIL
FILTER ASSY, ENGINE OIL(P1.0)

16510-07J00-000 1651007J00000

£16,19

Unit Price Incl. Tax

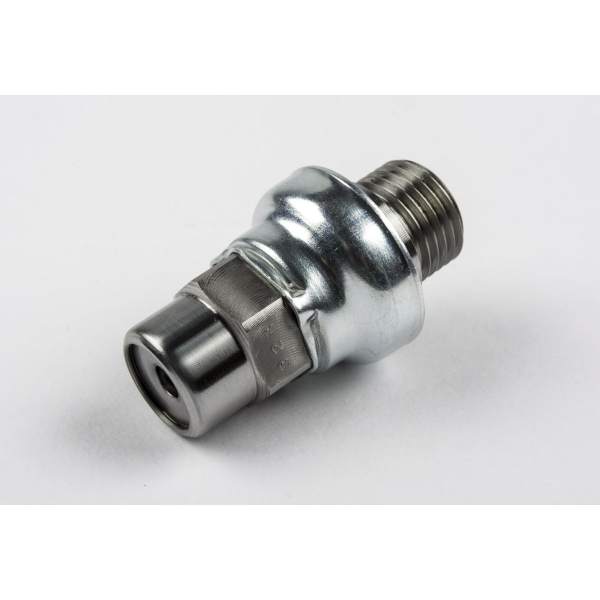

VALVE
VALVE ASSY, OIL RELIEF(6K)

16440-27A01-000 1644027A01000

£87,71

Unit Price Incl. Tax

OIL STAND UNION
UNION, OIL STAND

16591-06B01-000 1659106B01000

£10,94

Unit Price Incl. Tax

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the OIL PUMP of your Suzuki KINGQUAD 400 of KINGQUAD. Let us know if you have any questions.
